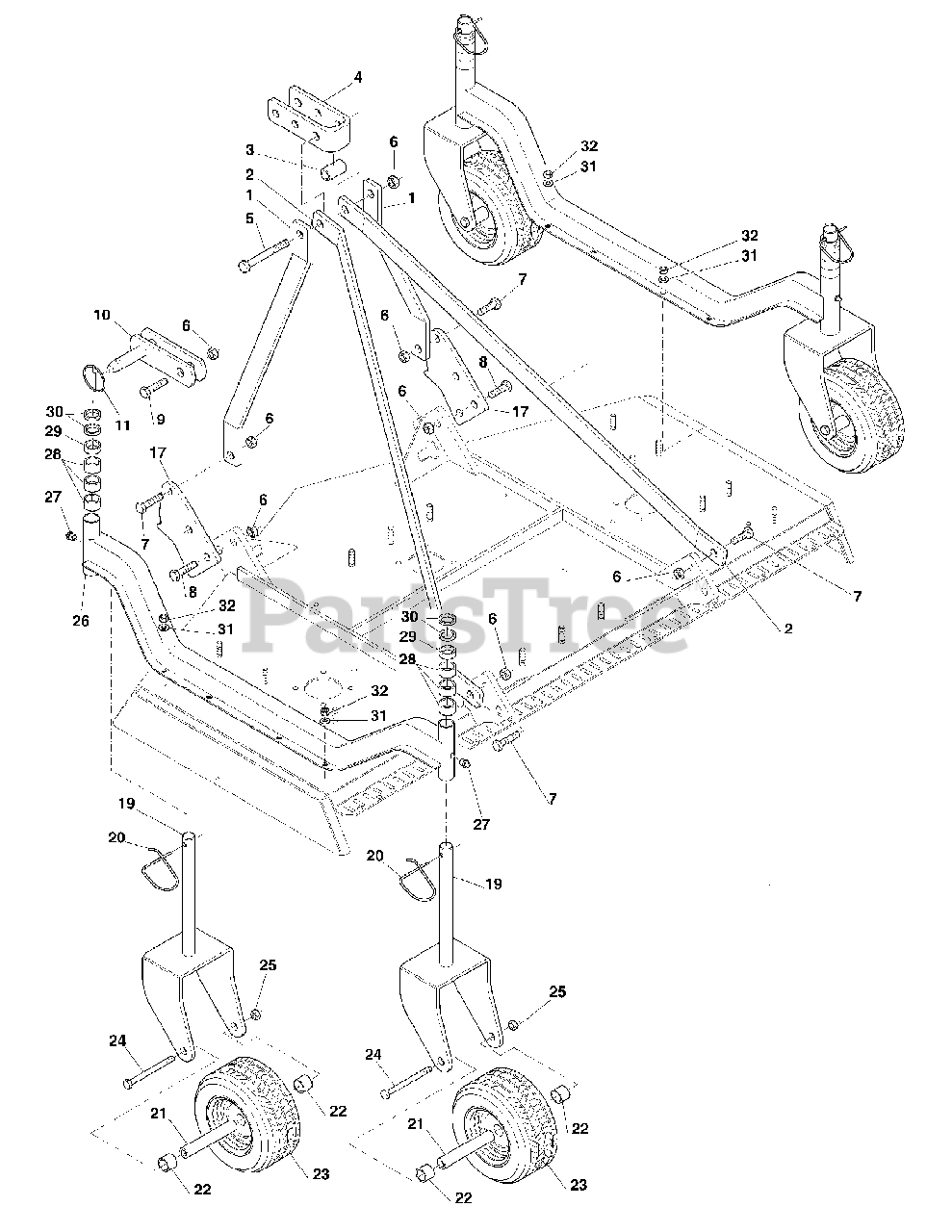

FML 72 (59A40064727) - Cub Cadet Yanmar Tractor Finishing Mower Three Point Hitch Parts Diagram

Tractor Finishing Mower

Three Point Hitch Parts Diagram

  • Title

1

Cub Cadet YS-000-6822

Top hitch support
(Superseded to BF-000-6822)

$

$

Not available

2

Cub Cadet YS-030-6570

Top hitch arm FML72

$

$

Not available

3

Cub Cadet YS-000-6829

Spacer
(Superseded to BF-000-6829)

$

$

Not available

4

Cub Cadet YS-000-6828

Upper plate
(Superseded to BF-000-6828)

$

$

Not available

5

Cub Cadet YS-000-6891

Bolt TE 16x140
(Superseded to BF-000-6891)

$

$

Not available

6

Cub Cadet YS-000-5581

Nut M16
(Superseded to BF-000-5581)

$

$

Not available

7

Cub Cadet YS-000-6578

Bolt TE 16x45
(Superseded to BF-000-6578)

$

$

Not available

8

Cub Cadet YS-000-2365

Bolt TE 16x50
(Superseded to BF-000-2365)

$

$

Not available

9

Cub Cadet YS-003-3218

Bolt TE 16x55
(Superseded to BF-003-3218)

$

$

Not available

10

Cub Cadet YS-000-6573

Hitch block
(Superseded to BF-000-6573)

$

$

Not available

11

Cub Cadet YS-001-8266

Lynch pin
(Superseded to BF-001-8266)

$

$

Not available

17

Cub Cadet YS-000-6540

Linking plate FML72
(Superseded to BF-000-6540)

$

$

Not available

19

Cub Cadet YS-000-6946

Wheel yoke
(Superseded to BF-000-6946)

$155.99

$

Usually ships in 3-6 days

0

20

Cub Cadet YS-000-8783

Cotter pin
(Superseded to BF-000-8783)

$11.99

$

In Stock, only 2 left!

0

21

Cub Cadet YS-000-6584

Inner spacer

$

$

Not available

22

Cub Cadet YS-000-6585

Hard tire outer wheel spacer
(Superseded to BF-000-6585)

$

$

Not available

23

Cub Cadet YS-000-6923Y

Hard tire
(Superseded to BF-000-6923Y)

$

$

Not available

24

Cub Cadet YS-000-6619

Bolt TE 14x150
(Superseded to BF-000-6619)

$

$

Not available

25

Cub Cadet YS-003-0358

Nut M14
(Superseded to BF-003-0358)

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet YS-030-6941

Wheel arm FML72

$

$

Not available

27

Cub Cadet YS-000-1065

Grease fitting
(Superseded to BF-000-1065)

$3.99

$

Usually ships in 3-6 days

0

28

Cub Cadet YS-000-6586

Spacer 1"
(Superseded to BF-000-6586)

$17.99

$

Usually ships in 3-6 days

0

29

Cub Cadet YS-000-6587

Spacer 1/2"
(Superseded to BF-000-6587)

$21.99

$

Usually ships in 3-6 days

0

30

Cub Cadet YS-000-6589

Spacer 1/4"
(Superseded to BF-000-6589)

$17.99

$

Usually ships in 3-6 days

0

31

Cub Cadet YS-003-0157

Flat washer Ø10
(Superseded to BF-003-0157)

$

$

Not available

32

Cub Cadet YS-003-0156

Nut M10
(Superseded to BF-003-0156)

$

$

Not available
