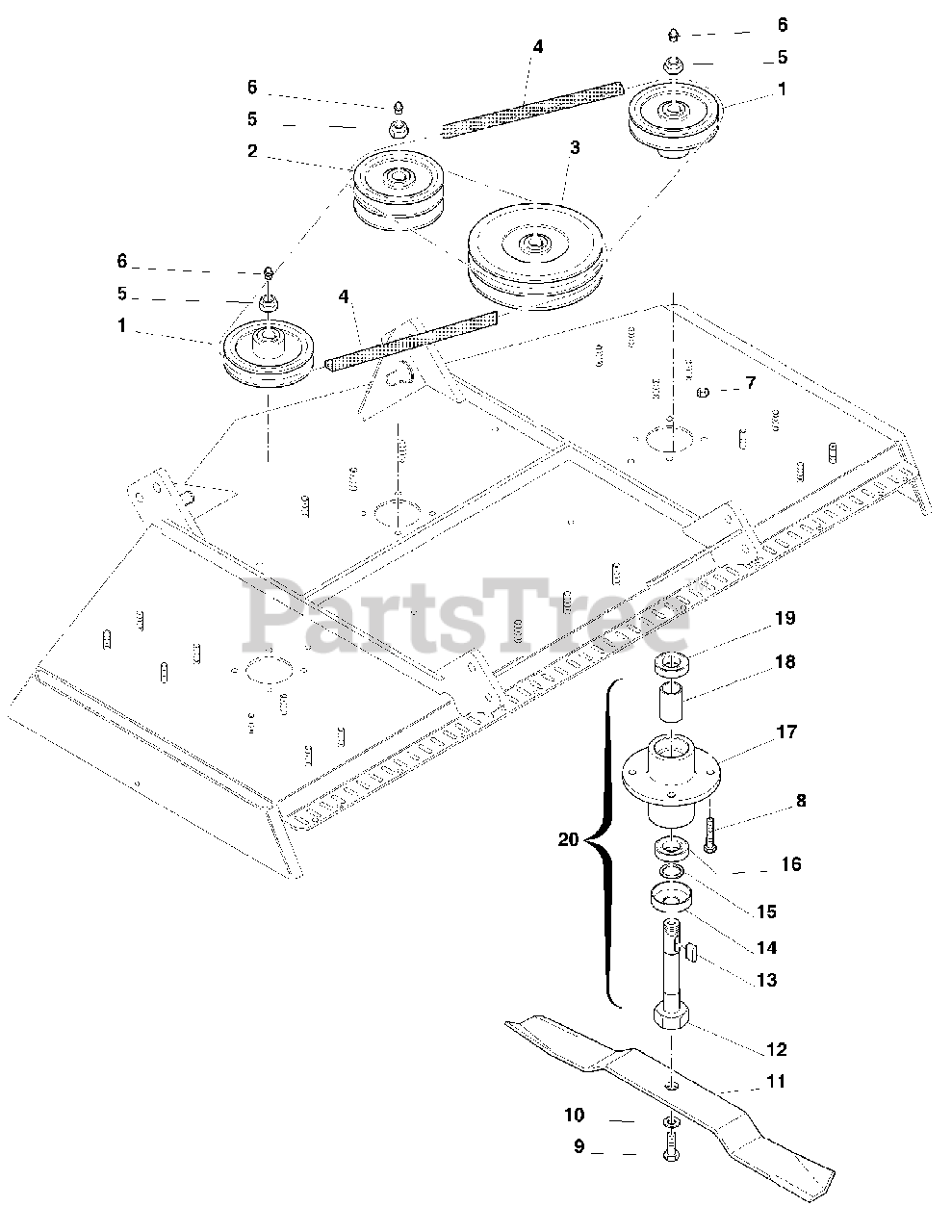

FML 72 (59A40064727) - Cub Cadet Yanmar Tractor Finishing Mower Pulley & Spindle Assembly Parts Diagram

Tractor Finishing Mower

Pulley & Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet YS-000-6842

Pulley SPB 160x1 FML72

$

$

Not available

2

Cub Cadet YS-000-6841

Pulley SPB 160x2 FML72

$

$

Not available

3

Cub Cadet YS-000-6692

Pulley SPB 250x2
(Superseded to BF-000-6692)

$

$

Not available

4

Cub Cadet YS-000-6848

Belt 5VX850 FML72

$

$

Not available

5

Cub Cadet YS-000-6698

Nut M25
(Superseded to BF-000-6698)

$20.99

$

In Stock, only 1 left!

0

6

Cub Cadet YS-002-9036

Grease fitting
(Superseded to BF-002-9036)

$

$

Not available

7

Cub Cadet YS-003-0156

Nut M10
(Superseded to BF-003-0156)

$

$

Not available

8

Cub Cadet YS-000-1278

Bolt TE 10x30
(Superseded to BF-000-1278)

$

$

Not available

9

Cub Cadet YS-000-6659

Blade bolt

$

$

Not available

10

Cub Cadet YS-000-8560

Disc spring
(Superseded to BF-000-8560)

$

$

Not available

11

Cub Cadet YS-000-6845

Standard blade FML72

$

$

Not available

12

Cub Cadet YS-000-6649

Spindle shaft
(Superseded to BF-000-6649)

$

$

Not available

13

Cub Cadet YS-000-6639

Key 8x7x25
(Superseded to BF-000-6639)

$2.99

$

In Stock, only 2 left!

0

14

Cub Cadet YS-000-6636

Cover
(Superseded to BF-000-6636)

$

$

Not available

15

Cub Cadet YS-000-6606

Spacer washer
(Superseded to BF-000-6606)

$

$

Not available

16

Cub Cadet YS-000-6626A

Bearing 6205-ZZ

$

$

Not available

17

Cub Cadet YS-000-6648

Spindle
(Superseded to BF-000-6648)

$

$

Not available

18

Cub Cadet YS-000-6640

Spacer
(Superseded to BF-000-6640)

$15.99

$

In Stock, only 2 left!

0

19

Cub Cadet YS-000-6634A

Bearing 6205-Z

$

$

Not available

20

Cub Cadet YS-000-6629C

Spindle assembly

$

$

Not available
