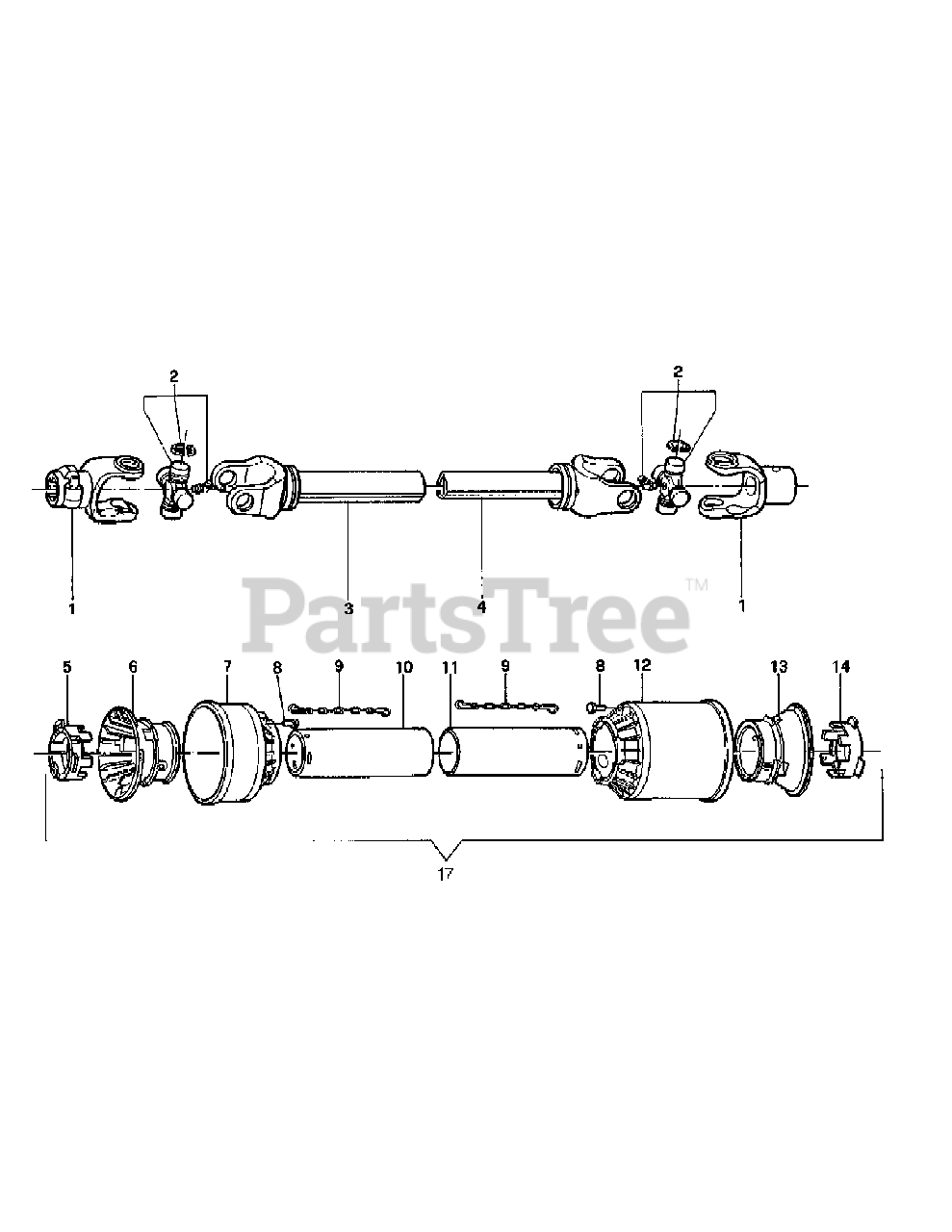

FML 72 (59A40064727) - Cub Cadet Yanmar Tractor Finishing Mower PTO Shaft Parts Diagram

Tractor Finishing Mower

PTO Shaft Parts Diagram

  • Title

1

Cub Cadet YS-023-001E

PTO Yoke
(Superseded to BF-023-001E)

$

$

Not available

2

Cub Cadet YS-013-130E

Cross and bearing
(Superseded to BF-013-130E)

$

$

Not available

3

Cub Cadet YS-1943070C

Outer tube FML72

$

$

Not available

4

Cub Cadet YS-1953072C

Inner tube FML72

$

$

Not available

5

Cub Cadet YS-1784210C

Outer locking ring
(Superseded to BF-1784210C)

$

$

Not available

6

Cub Cadet YS-1784201C

Outer tube rigid cone
(Superseded to BF-1784201C)

$26.99

$

In Stock, only 1 left!

0

7

Cub Cadet YS-1784203C

Outer cone (short)
(Superseded to BF-1784203C)

$

$

Not available

8

Cub Cadet YS-1784212C

Pin
(Superseded to BF-1784212C)

$

$

Not available

9

Cub Cadet YS-016-025E

Chain
(Superseded to BF-016-025E)

$

$

Not available

10

Cub Cadet YS-1773068C

Female tube shield FML72

$

$

Not available

11

Cub Cadet YS-1872068C

Male tube shield FML72

$

$

Not available

12

Cub Cadet YS-1784205C

Outer cone (long)
(Superseded to BF-1784205C)

$

$

Not available

13

Cub Cadet YS-1784202C

Inner tube rigid cone
(Superseded to BF-1784202C)

$

$

Not available

14

Cub Cadet YS-1784211C

Inner locking ring
(Superseded to BF-1784211C)

$

$

Not available

17

Cub Cadet N/A

Complete shielding FML72

$

$

Currently unavailable

Cub Cadet YS-050-0415

PTO complete

Note: Not shown

$

$

Not available

Cub Cadet YS-950-463B

Decal "DANGER - Rotating driveline, keep away" outer tube

Note: Not shown

$

$

Not available

Cub Cadet YS-950-464B

Decal "DANGER - Guard missing, do not operate" inner tube

Note: Not shown

$

$

Not available
