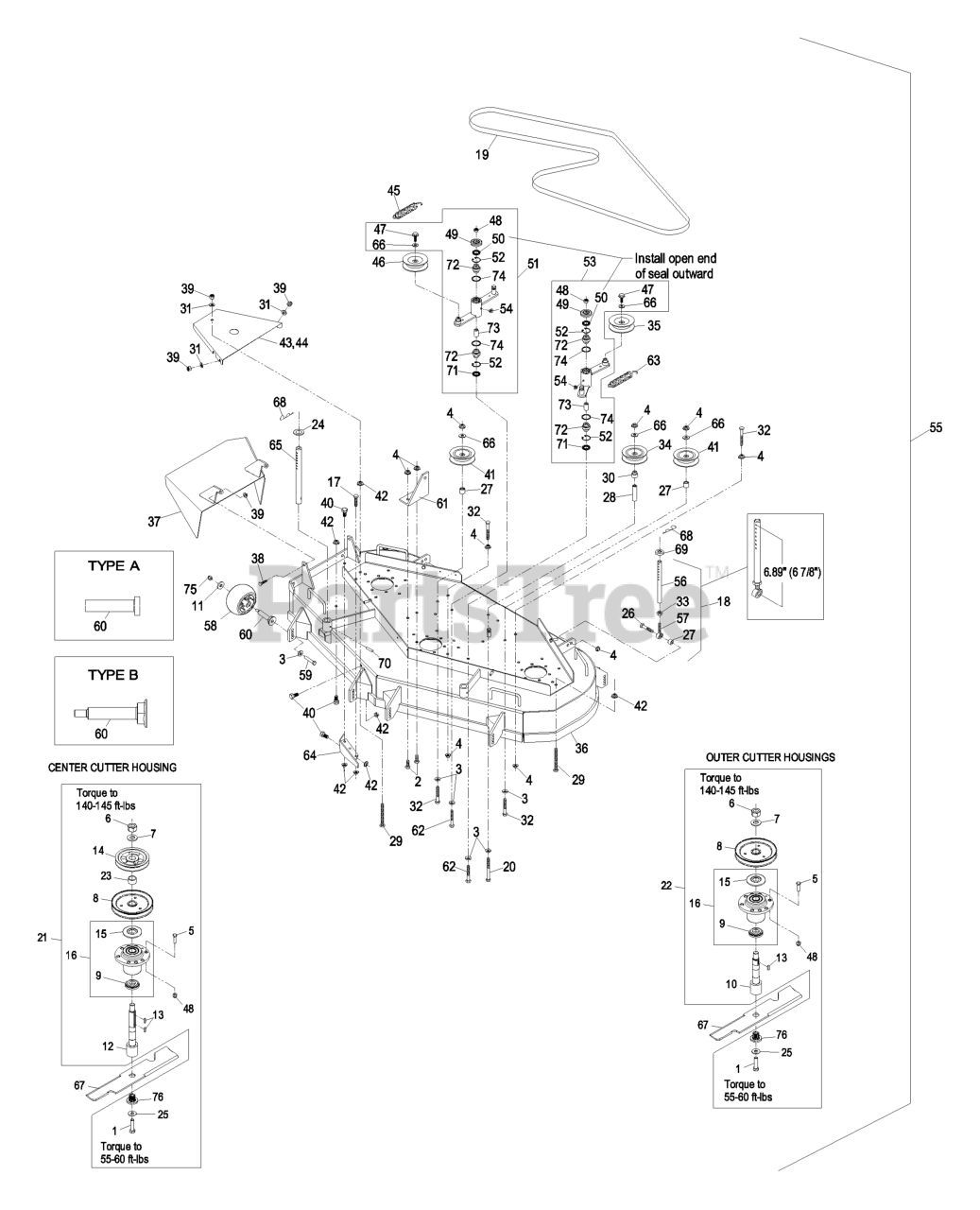

Exmark FMD604 - Exmark 60" Turf Tracer Hydro Walk-Behind Mower (SN: 510000 - 599999) (2005) Deck Group 60" FMD604 Deck S/N 540,000 & Higher Parts Lookup with Diagrams

1

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

4

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut, Item #6.

$12.99

$

In Stock, Qty 10

7

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$76.99

$

In Stock, only 2 left!

9

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 2 left!

10

Exmark 103-9086

KIT, SPLINED SPINDLE 103-

Note: Kit includes items #1, #6, #7, #13, #25 & #76. Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$225.99

$

In Stock, only 3 left!

11

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

12

Exmark 103-9087

KIT, SPLINED SPINDLE 103-

Note: Kit includes items #1, #6, #7, #13, #25 & #76. Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$234.99

$

In Stock, only 2 left!

13

Exmark 103-2982

KEY

$2.99

$

In Stock, Qty 12

14

Exmark 103-2791

SHEAVE,BLADE DRIVE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$79.99

$

Usually ships in 3-6 days

15

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$5.49

$

In Stock, Qty 12

16

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$266.99

$

In Stock, only 2 left!

17

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

18

Exmark 1-414521

1-411532

(Superseded to 1-411532) 

Note: Link assembly nominal length is 6.89" (or approx. 6 7/8") between center of ball joint & center of furthest hole. See diagram. Initially adjust both links to this dimension, then adjust to where both links are equally supporting rear of mower deck by leng

$154.99

$

In Stock, only 3 left!

19

Exmark 1-633173

BELT,MULE DRIVE

(Superseded to 1-633173-SL) 

$107.99

$

In Stock, Qty 13

20

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

21

Exmark 103-9083

ASM, CUTTER HSG FMD604CTR

$608.99

$

Usually ships in 3-6 days

22

Exmark 103-9076

ASM, CUTTER HSG COMPLETE

$493.99

$

In Stock, only 4 left!

23

Exmark 103-3209

SPACER,TUBE

$8.49

$

Usually ships in 3-6 days

24

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 20+

25

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

26

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

27

Exmark 1-603050

SPACER

$7.49

$

In Stock, only 2 left!

28

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 2 left!

29

Exmark 1-800017

BOLT,TAP HH

$7.49

$

In Stock, only 2 left!

30

Exmark 1-513791

BUSHING,IDLER

$5.49

$

Usually ships in 3-6 days

31

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

32

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

33

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

34

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 11

35

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

36

Exmark 103-8388

ASM, DECK W/DECALS FMD604

$4456.99

$

Usually ships in 3-6 days

37

Exmark 103-2349-01

WLD,CHUTE FMD604

$177.99

$

Usually ships in 3-6 days

38

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

39

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

40

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

41

Exmark 1-303516

IDLER,PULLEY

$59.99

$

In Stock, Qty 8

42

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

43

Exmark 103-2967-01

SHIELD,BELT RH

$74.99

$

Usually ships in 3-6 days

44

Exmark 103-2968-01

SHIELD,BELT LH

$74.99

$

Usually ships in 3-6 days

45

Exmark 1-603413

SPRING-EXTENSION

$24.99

$

In Stock, only 4 left!

46

Exmark 1-603497

IDLER,PULLEY

$60.99

$

In Stock, only 1 left!

47

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

48

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

49

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 20+

50

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 20+

51

Exmark 103-8072

KIT, IDLER ARM W/BEARINGS

Note: Idler arm assembly also includes items #3 & #62

$199.99

$

Usually ships in 3-6 days

52

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

53

Exmark 103-8071

KIT, IDLER ARM W/BEARINGS

Note: Idler arm assembly also includes items #3 & #62

$214.99

$

Usually ships in 3-6 days

54

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

55

Exmark 103-2279

Complete Deck Assy

$

Currently unavailable 

56

Exmark 1-413525

LINK,SUPPORT

$49.99

$

In Stock, only 2 left!

57

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, Qty 8

58

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-3168 includes antiscalp roller, axle, & mounting hardware for Type A axles. Kit 103-7263 includes antiscalp roller, axle, & mounting hardware for Type B axles.

$23.99

$

In Stock, Qty 20+

59

Exmark 98-5961

SCREW-HH

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference Deck Group 52" diagram to determine which axles are installed on the unit.

$5.49

$

In Stock, Qty 20+

Exmark 3211-46

SCREW-HH

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference Deck Group 52" diagram to determine which axles are installed on the unit.

$2.99

$

In Stock, Qty 20+

60

Exmark 1-603602

BUSHING-ROLLER

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference Deck Group 52" diagram to determine which axles are installed on the unit.

$24.99

$

In Stock, Qty 20+

Exmark 103-5364

116-9981

(Superseded to 116-9981) 

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference Deck Group 52" diagram to determine which axles are installed on the unit.

$52.99

$

In Stock, Qty 20+

61

Exmark 1-603620-01

BRACKET,SPRING ANCHOR

$27.99

$

Usually ships in 3-6 days

62

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

63

Exmark 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, Qty 9

64

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$51.99

$

In Stock, only 4 left!

65

Exmark 1-603001

ROD,DECK SUPPORT

$50.99

$

In Stock, only 3 left!

66

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

67

Exmark 103-6403

103-6403-S

(Superseded to 103-6403-S) 

$31.99

$

In Stock, Qty 20+

Exmark 103-6383

103-6383-S

(Superseded to 103-6383-S) 

$34.99

$

In Stock, Qty 20+

Exmark 103-6388

103-6388-S

(Superseded to 103-6388-S) 

$37.99

$

In Stock, Qty 20+

Exmark 103-6393

103-6393-S

(Superseded to 103-6393-S) 

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604Q.

$30.99

$

In Stock, Qty 20+

Exmark 103-6398

116-5174-S

(Superseded to 116-5174-S) 

$30.99

$

In Stock, Qty 20+

68

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

69

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

70

Exmark 1-806332

32121-15

(Superseded to 32121-15) 

$1.99

$

In Stock, Qty 20+

71

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

72

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

73

Exmark 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 4 left!

74

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

75

Exmark 3290-357

NUT-HHF, WHIZ

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference Deck Group 52" diagram to determine which axles are installed on the unit.

$0.99

$

In Stock, Qty 20+

Exmark 3296-39

NUT-LOCK, NI

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference Deck Group 52" diagram to determine which axles are installed on the unit.

$2.99

$

In Stock, Qty 20+
