FMD604 - Exmark 60" Turf Tracer Hydro Walk-Behind Mower (SN: 440000 - 509999) (2004) Pistol Grip Handles And Controls Parts Diagram

60" Turf Tracer Hydro Walk-Behind Mower

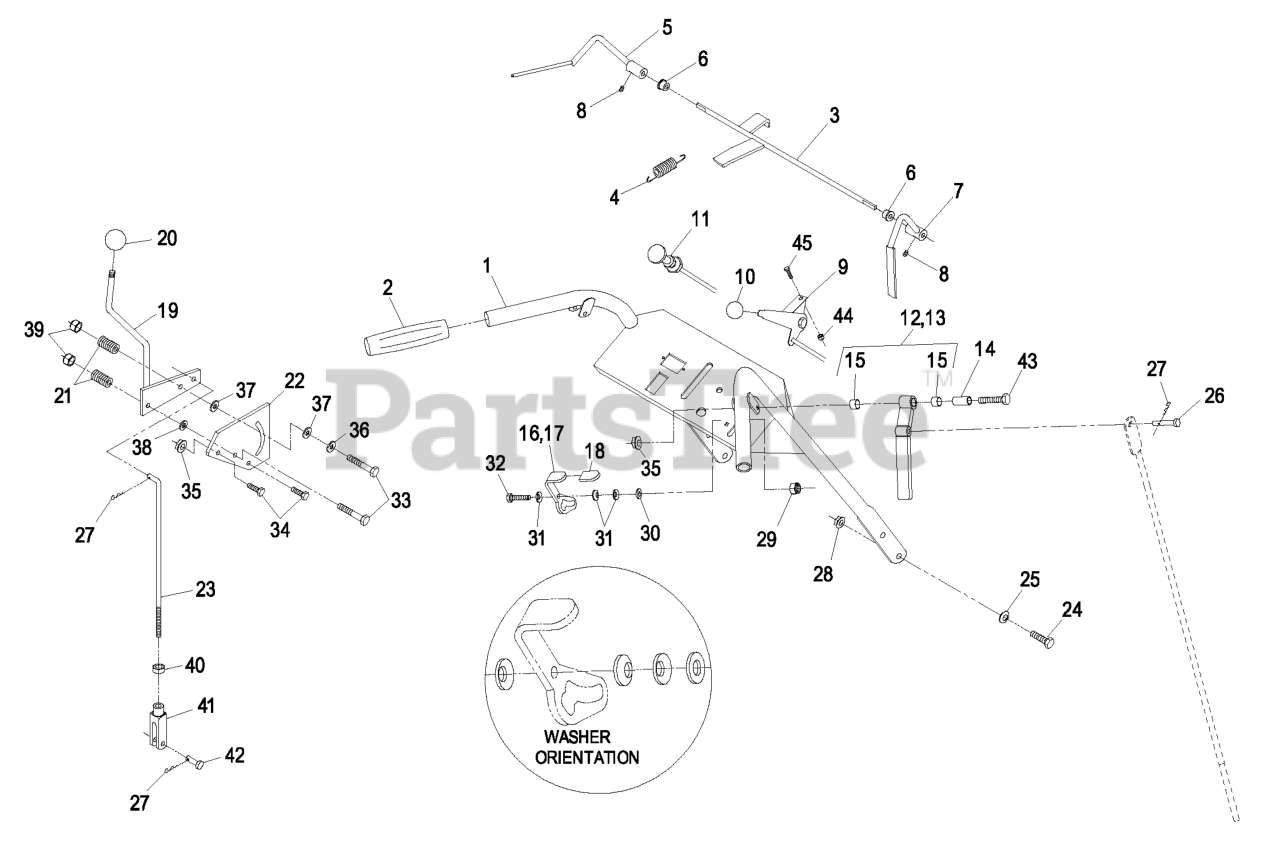

Pistol Grip Handles And Controls Parts Diagram

  • Title

1

Exmark 103-0215

DISCONTINUED

$

$

Not available

2

Exmark 1-303097

104-9838
(Superseded to 104-9838)

$5.99

$

In Stock, Qty 20+

0

3

Exmark 1-612187-01

WLD,ROD OPC

$

$

Not available

4

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, Qty 11

0

5

Exmark 1-412183-03

LEVER-LH

Note: Use Pro-Lock retaining type, (P/N. 1-840023, .5cc tube) on inside of bore of OPC hub.

$78.99

$

In Stock, Qty 5

0

6

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

0

7

Exmark 1-412185

1-412185-03
(Superseded to 1-412185-03)

Note: Use Pro-Lock retaining type, (P/N. 1-840023, .5cc tube) on inside of bore of OPC hub.

$81.99

$

In Stock, only 4 left!

0

8

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock nut type, (P/N. 1-840022, .5cc tube) on setscrew threads and thumb latch screw threads.

$1.49

$

In Stock, Qty 20+

0

9

Exmark 1-633696

THROTTLE CABLE ASM

$62.99

$

In Stock, only 1 left!

0

Exmark 1-613247

CABLE,THROTTLE

$

$

Not available

10

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 18

0

11

Exmark 1-603336

CONTROL-CHOKE

$41.99

$

In Stock, Qty 10

0

12

Exmark 103-0219

RH DRIVE LEVER ASM

Note: (Shown)

$158.99

$

Usually ships in 3-6 days

0

13

Exmark 103-0218

LH DRIVE LEVER ASM

Note: (Not Shown)

$158.99

$

Usually ships in 3-6 days

0

14

Exmark 1-603749

BUSHING-LEVER, DRIVE

$7.99

$

In Stock, Qty 5

0

15

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

16

Exmark 1-612168

137-9514
(Superseded to 137-9514)

$45.99

$

Usually ships in 3-6 days

0

17

Exmark 1-612167

137-9515
(Superseded to 137-9515)

$44.99

$

Usually ships in 3-6 days

0

18

Exmark 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0

19

Exmark 106-2748

LEVER-SHIFT

$113.99

$

In Stock, only 2 left!

0

20

Exmark 1-603175

KNOB-BALL

Note: Use Pro-Lock nut type, (P/N. 1-840022, .5cc tube) on setscrew threads and thumb latch screw threads.

$11.99

$

In Stock, Qty 6

0

21

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, Qty 12

0

22

Exmark 1-603730

PLATE-LEVER, SHIFTER

$37.99

$

Usually ships in 3-6 days

0

23

Exmark 1-603700

ROD,SPEED CONTROL

$

$

Not available

24

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

26

Exmark 1-613055

PIN-CLEVIS

$8.99

$

In Stock, only 2 left!

0

27

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

28

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

29

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

32

Exmark 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 2 left!

0

37

Exmark 1-323244

WASHER-FRICTION
(Superseded to 93-1633)

$2.99

$

In Stock, Qty 14

0

38

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

39

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

41

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

42

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

43

Exmark 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

44

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

45

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0
