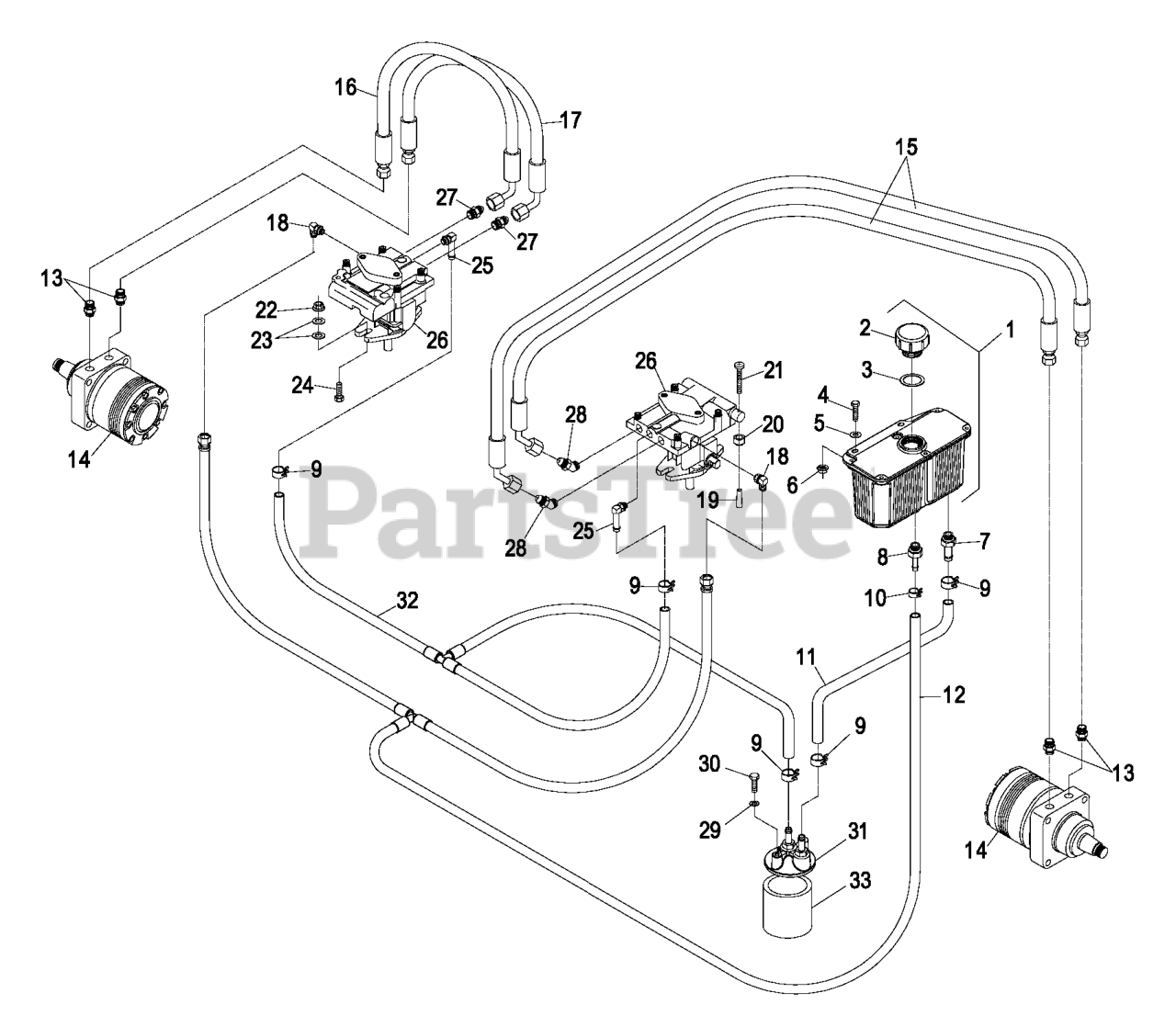

FMD604 - Exmark 60" Turf Tracer Hydro Walk-Behind Mower (SN: 370000 - 439999) (2003) Hydraulics Group Parts Diagram

60" Turf Tracer Hydro Walk-Behind Mower

Hydraulics Group Parts Diagram

  • Title

1

Exmark 103-1947

HYD RESERVOIR ASM

$263.99

$

Usually ships in 3-6 days

0

2

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$27.99

$

In Stock, only 2 left!

0

3

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 9

0

4

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

7

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

8

Exmark 103-1801

ADAPTER-STRAIGHT

$30.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

9

Exmark 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

10

Exmark 103-1716

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

11

Exmark 103-2958

109-1010
(Superseded to 109-1010)

$6.99

$

Usually ships in 3-6 days

0

12

Exmark 103-1962

DISCONTINUED

$

$

Not available

13

Exmark 1-603991

FITTING-STRAIGHT

$21.99

$

In Stock, only 2 left!

0

Exmark 1-603919

O-RING

$3.49

$

In Stock, Qty 10

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

14

Exmark 1-603718

HYD MOTOR ASM

$1206.99

$

In Stock, only 2 left!

0

Exmark 1-000119

SEAL KIT

$201.99

$

In Stock, only 2 left!

0

Exmark 1-000138

BEARING AND SEAL KIT

$310.99

$

Usually ships in 3-6 days

0

15

Exmark 1-603981

HOSE,HIGH PRESSURE

$97.99

$

Usually ships in 3-6 days

0

16

Exmark 1-613034

119-7827
(Superseded to 119-7827)

$78.99

$

In Stock, only 1 left!

0

17

Exmark 1-323241

HOSE-PRESSURE, HIGH

$86.99

$

Usually ships in 3-6 days

0

18

Exmark 1-513840

FITTING-90 DEG

$29.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

19

Exmark 1-613073

GRIP-VALVE, DUMP

$5.99

$

Usually ships in 3-6 days

0

20

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

21

Exmark 1-801063

SCREW

$5.49

$

Usually ships in 3-6 days

0

22

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Exmark 1-603989

FITTING

$36.99

$

Usually ships in 3-6 days

0

Exmark 1-603923

O-RING

$2.99

$

Usually ships in 3-6 days

0

26

Exmark 1-613042

PUMP

$1387.99

$

Usually ships in 3-6 days

0

Exmark 2513018

80-6130
(Superseded to 80-6130)

$84.99

$

In Stock, Qty 6

0

27

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

28

Exmark 1-523221

FITTING-HYD, 45 DEG

$49.99

$

Usually ships in 3-6 days

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

29

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

30

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Exmark 103-2889

FILTER HEAD ASM

$107.99

$

Usually ships in 3-6 days

0

32

Exmark 103-1961

DISCONTINUED

$

$

Not available

33

Exmark 1-513211

109-4180
(Superseded to 109-4180)

$47.99

$

In Stock, Qty 16

0

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: Use only for operation below 32°F (0°C)

$47.99

$

In Stock, only 1 left!

0
