FMD604 - Exmark 60" Turf Tracer Hydro Walk-Behind Mower (SN: 320000 - 369999) (2002) 60" Mower Deck FMD604 Parts Diagram

60" Turf Tracer Hydro Walk-Behind Mower

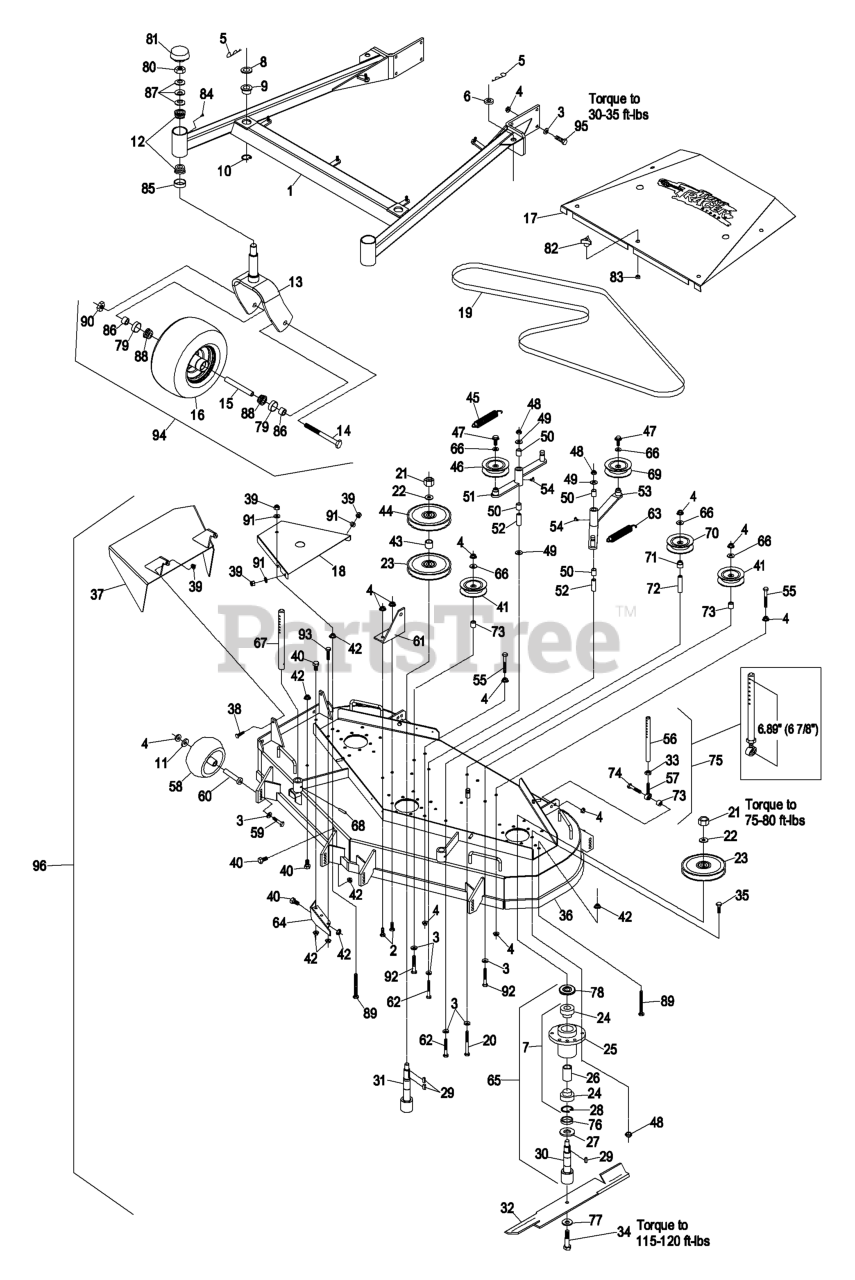

60" Mower Deck FMD604 Parts Diagram

  • Title

1

Exmark 103-1896

ASM,FMD604 DK SUPPORT, SE

$

$

Not available

2

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

0

6

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

7

Exmark 1-634619

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

8

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 14

0

9

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 7

0

10

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

0

11

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

13

Exmark 103-1891-01

WLD, CASTER FORK

$117.99

$

Usually ships in 3-6 days

0

14

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

15

Exmark 103-2355

SPACER,FRONT CASTER

$14.99

$

Usually ships in 3-6 days

0

16

Exmark 103-1687

103-3800
(Superseded to 103-3800)

$233.99

$

In Stock, only 4 left!

0

Exmark 1-513032

TIRE

$93.99

$

In Stock, only 2 left!

0

Exmark 103-2274

103-3800
(Superseded to 103-3800)

$233.99

$

In Stock, only 4 left!

0

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

17

Exmark 103-2275

116-2709
(Superseded to 116-2709)

$182.99

$

Usually ships in 3-6 days

0

18

Exmark 103-2271-01

103-2967-01
(Superseded to 103-2967-01)

$66.99

$

Usually ships in 3-6 days

0

Exmark 103-2272-01

103-2968-01
(Superseded to 103-2968-01)

$66.99

$

Usually ships in 3-6 days

0

19

Exmark 1-633173

BELT,MULE DRIVE
(Superseded to 1-633173-SL)

$102.99

$

In Stock, Qty 14

0

20

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

21

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

22

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

23

Exmark 1-633701

SHEAVE,BLADE DRIVE

$81.99

$

In Stock, only 1 left!

0

24

Exmark 1-513016

BEARING

$82.99

$

In Stock, Qty 20+

0

25

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

26

Exmark 1-323528

SPACER-BEARING

$9.49

$

In Stock, Qty 13

0

27

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, Qty 8

0

28

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

0

29

Exmark 10-8040

KEY-SQUARE

$2.99

$

In Stock, Qty 17

0

30

Exmark 103-2326

SPINDLE,SHORT

$121.99

$

Usually ships in 3-6 days

0

31

Exmark 103-2219

SPINDLE,LONG

$192.99

$

Usually ships in 3-6 days

0

32

Exmark 1-633483

103-2530-S
(Superseded to 103-2530-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 1-613250

103-1580-S
(Superseded to 103-1580-S)

$36.99

$

In Stock, Qty 14

0

Exmark 1-613111

103-2510-S
(Superseded to 103-2510-S)

$38.99

$

In Stock, Qty 14

0

Exmark 103-0301

103-0301-S
(Superseded to 103-0301-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604.

$34.99

$

In Stock, Qty 20+

0

Exmark 103-1580

103-1580-S
(Superseded to 103-1580-S)

$36.99

$

In Stock, Qty 14

0

33

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

34

Exmark 103-0862

SCREW-CAP

$5.99

$

In Stock, Qty 18

0

35

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Exmark 103-2278

103-8388
(Superseded to 103-8388)

$4285.99

$

Usually ships in 3-6 days

0

37

Exmark 103-2349-01

WLD,CHUTE FMD604

$159.99

$

Usually ships in 3-6 days

0

38

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

41

Exmark 1-303516

IDLER,PULLEY

$52.99

$

In Stock, Qty 8

0

42

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

43

Exmark 1-603504

SPACER-TUBE

$19.99

$

Usually ships in 3-6 days

0

44

Exmark 103-2270

SHEAVE,DECK DRIVE

$70.99

$

Usually ships in 3-6 days

0

45

Exmark 1-603413

SPRING-EXTENSION

$23.99

$

In Stock, only 4 left!

0

46

Exmark 1-603497

IDLER,PULLEY

$53.99

$

Usually ships in 3-6 days

0

47

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

48

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

49

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

50

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

51

Exmark 1-602604

ASM,IDLER ARM

$142.99

$

Usually ships in 3-6 days

0

Exmark 1-602591-03

1-602604
(Superseded to 1-602604)

$142.99

$

Usually ships in 3-6 days

0

52

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

53

Exmark 1-602865

ASM,IDLER ARM

$137.99

$

In Stock, only 1 left!

0

Exmark 1-602867-03

Arm, Deck Drive Idler

$

$

Currently unavailable

54

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

55

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

56

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

0

57

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

0

58

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

59

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

60

Exmark 1-603602

BUSHING-ROLLER

$23.99

$

In Stock, only 3 left!

0

61

Exmark 1-603620-01

BRACKET,SPRING ANCHOR

$26.99

$

Usually ships in 3-6 days

0

62

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

63

Exmark 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, only 2 left!

0

64

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

0

65

Exmark 103-2314

ASM,CUTTER HSG FMD604 CEN

Note: Outer cutter housing complete includes sheave, washer & nut. Center cutter housing complete includes sheaves, washer, spacer & nut.

$737.99

$

Usually ships in 3-6 days

0

Exmark 103-1140

ASM,SPINDLE HSG COMPLETE

Note: Outer cutter housing complete includes sheave, washer & nut.

$547.99

$

Usually ships in 3-6 days

0

66

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

67

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

0

68

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 7

0

69

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

0

70

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

0

71

Exmark 1-513791

BUSHING,IDLER

$5.49

$

In Stock, only 1 left!

0

72

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 1 left!

0

73

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 2 left!

0

74

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

75

Exmark 1-414521

1-411532
(Superseded to 1-411532)

Note: Link assembly must be assembled to 6.89" (or approx. 6 7/8") length between center of ball joint & center of furthest hole. See illustration.

$147.99

$

In Stock, Qty 5

0

76

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 11

0

77

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

0

78

Exmark 103-1331

GUARD,BEARING TOP .880

$5.99

$

In Stock, only 1 left!

0

79

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

80

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

81

Exmark 1-543513

CAP-GREASE

$7.99

$

In Stock, Qty 7

0

82

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

83

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

84

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

85

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 19

0

86

Exmark 1-633581

SPACER-BEARING

$4.99

$

In Stock, Qty 14

0

87

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

88

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

89

Exmark 1-800017

BOLT,TAP HH

$6.99

$

In Stock, only 2 left!

0

90

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

91

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

92

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

93

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

94

Exmark 103-2495

103-3800
(Superseded to 103-3800)

$233.99

$

In Stock, only 4 left!

0

95

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

96

Exmark 103-2279

Complete Deck Assy

$

$

Currently unavailable

Exmark 103-2249-01

103-1896
(Superseded to 103-1896)

$

$

Not available

Exmark 103-2267-01

103-8388
(Superseded to 103-8388)

$4285.99

$

Usually ships in 3-6 days

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark MK604

Mulch Kit

$

$

Currently unavailable
