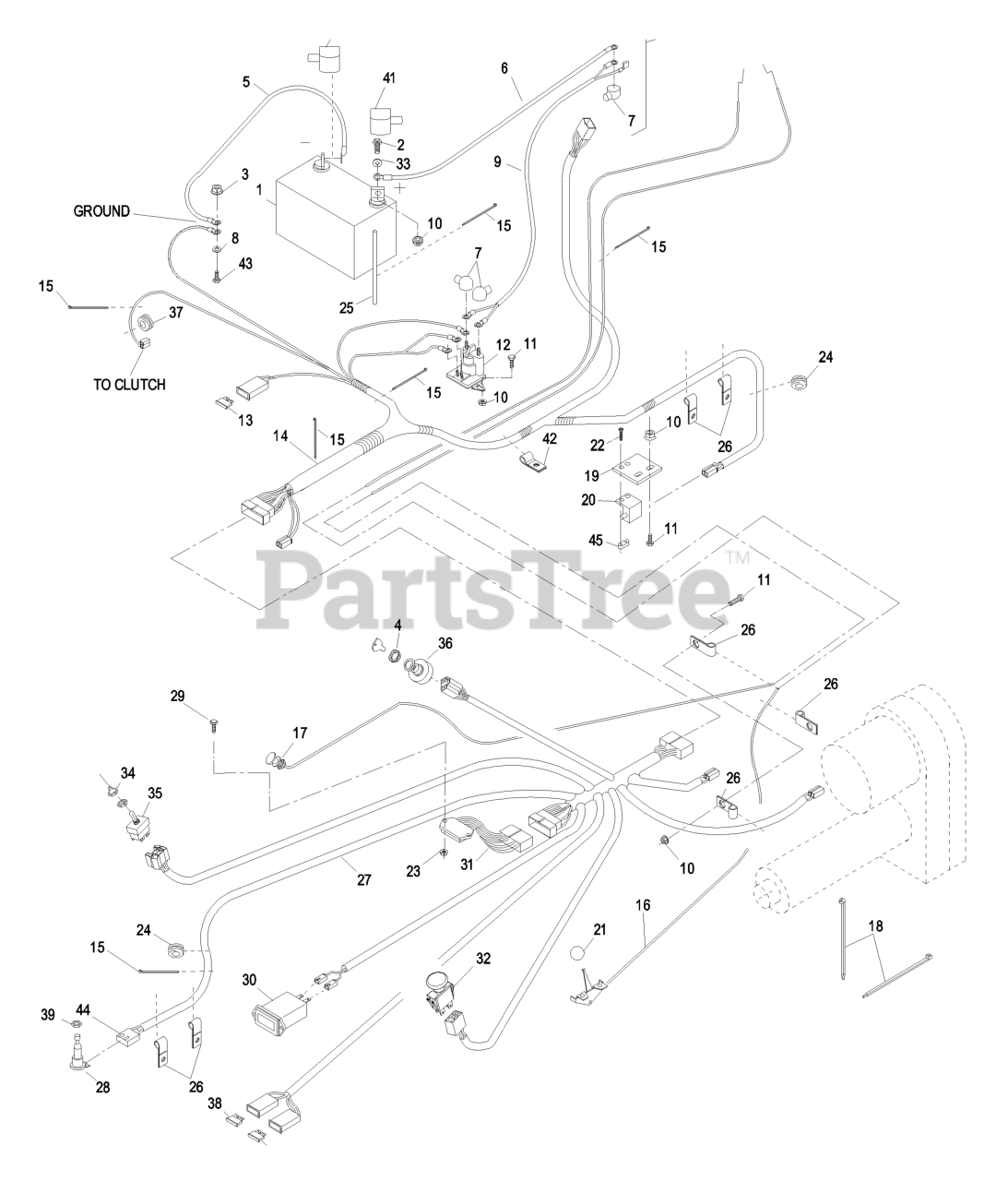

FMD604 - Exmark 60" Turf Ranger Front Mount Mower (SN: 510000 - 599999) (2005) Electrical Group Parts Diagram

60" Turf Ranger Front Mount Mower

Electrical Group Parts Diagram

  • Title

1

Exmark 103-0293

DISCONTINUED (EXMARK)

$

$

Not available

2

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

4

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 6

0

5

Exmark 1-543767

WIRE-GROUND

$21.99

$

In Stock, only 2 left!

0

6

Exmark 1-603488

109-7654
(Superseded to 109-7654)

$36.99

$

Usually ships in 3-6 days

0

7

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

8

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

9

Exmark 103-1126

109-8395
(Superseded to 109-8395)

$84.99

$

Usually ships in 3-6 days

0

10

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

11

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-513075

117-1197
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

13

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

14

Exmark 1-543065

DISCONTINUED

$

$

Not available

15

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 1-633696

THROTTLE CABLE ASM

$62.99

$

In Stock, only 3 left!

0

17

Exmark 1-603336

CONTROL-CHOKE

$41.99

$

In Stock, only 2 left!

0

18

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

19

Exmark 1-323128

BRACKET,SAFETY SWITCH

$

$

Not available

20

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

21

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 10

0

22

Exmark 32108-55

10-24 X 5/8 FLT HD MS

$1.99

$

Usually ships in 3-6 days

0

23

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

25

Exmark 1-809040

DISCONTINUED (EXMARK)

$

$

Not available

26

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

27

Exmark 1-553064

HARNESS,CONSOLE WIRING

$231.99

$

Usually ships in 3-6 days

0

28

Exmark 1-603760

SWITCH,PUSH BUTTON

$66.99

$

In Stock, only 2 left!

0

29

Exmark 1-807527

DISCONTINUED

$

$

Not available

30

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

31

Exmark 1-543316

MODULE,OPC

$189.99

$

In Stock, only 1 left!

0

32

Exmark 1-633673

103-5221
(Superseded to 103-5221)

$58.99

$

In Stock, Qty 20+

0

33

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

34

Exmark 1-543386

BOOT-SWITCH, TOGGLE

$30.99

$

Usually ships in 3-6 days

0

35

Exmark 1-543385

SWITCH-TOGGLE, DPDT

$128.99

$

Usually ships in 3-6 days

0

36

Exmark 1-543070

SWITCH,IGNITION

$44.99

$

In Stock, only 2 left!

0

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

37

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

38

Exmark 1-816003

FUSE-BLADE TYPE, 30 AMP

$5.99

$

Usually ships in 3-6 days

0

39

Exmark 1-543348

DISCONTINUED

$

$

Not available

40

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

41

Exmark 1-543390

INSULATOR, BATTERY -

$7.49

$

Usually ships in 3-6 days

0

42

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

43

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

44

Exmark 1-543335

CONNECTOR,PACKARD 2 WAY

$

$

Not available

45

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0
