FMD604 - Exmark 60" Turf Ranger Front Mount Mower (SN: 440000 - 509999) (2004) Motion Controls Parts Diagram

60" Turf Ranger Front Mount Mower

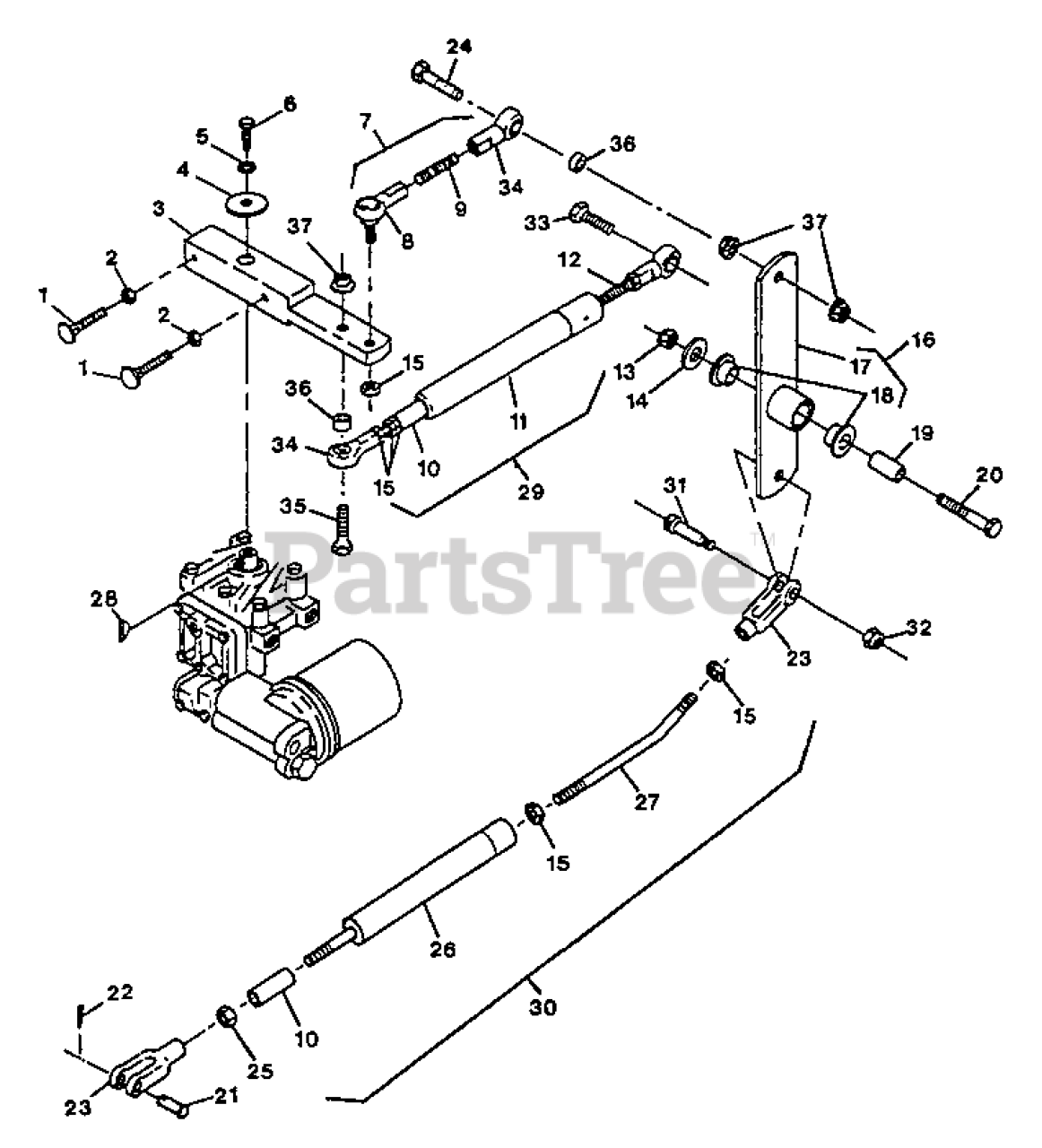

Motion Controls Parts Diagram

  • Title
1

Exmark 1-807522

DISCONTINUED

$

$

Not available

2

Exmark 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

3

Exmark 1-542916-01

WLD,ARM TRANSAXLT

$

$

Not available

4

Exmark 1-503033

WASHER-RETAINER, PULLEY

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 14

0

6

Exmark 1-800751

Capscrew, 1/4-20 X 1-1/2

$

$

Currently unavailable

7

Exmark 1-544722

DISCONTINUED

$

$

Not available

8

Exmark 1-513132

BALLJOINT

$48.99

$

In Stock, only 1 left!

0

9

Exmark 1-543710

ROD END PLTD.

$

$

Not available

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: Not Illustrated; Use On Both Rod Ends

$20.99

$

Usually ships in 3-6 days

0

10

Exmark 1-513479

BUSHING,SPRING GUIDE

$16.99

$

Usually ships in 3-6 days

0

11

Exmark 1-542724-01

DISCONTINUED
(Superseded to 1-542725)

$

$

Not available

12

Exmark 1-543148

ROD,END

$

$

Not available

13

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

16

Exmark 1-544711

DISCONTINUED

$

$

Not available

17

Exmark 1-542144-01

WLD,IDLER LINKAGE

$

$

Not available

18

Exmark 1-513140

BEARING-CONTROL

$6.49

$

In Stock, Qty 8

0

19

Exmark 1-543486

BUSHING,MOTION LEVER

$15.99

$

In Stock, only 1 left!

0

20

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

21

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

22

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

23

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

24

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

26

Exmark 1-512136-03

DISCONTINUED

$

$

Not available

27

Exmark 1-543052

LINKAGE,ROD

$

$

Not available

28

Exmark 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

29

Exmark 1-542725

DISCONTINUED

$

$

Not available

30

Exmark 1-542053

ASM,PEDAL OVERRIDE

$

$

Not available

31

Exmark 1-809057

SCREW-HSH

$

$

Not available

32

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

33

Exmark 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 5

0

34

Exmark 1-543017

BALLJOINT-RH

$20.99

$

In Stock, Qty 13

0

35

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

36

Exmark 1-603500

SPACER-PLATED

$11.99

$

Usually ships in 3-6 days

0

37

$1.49

$

In Stock, Qty 20+

0
