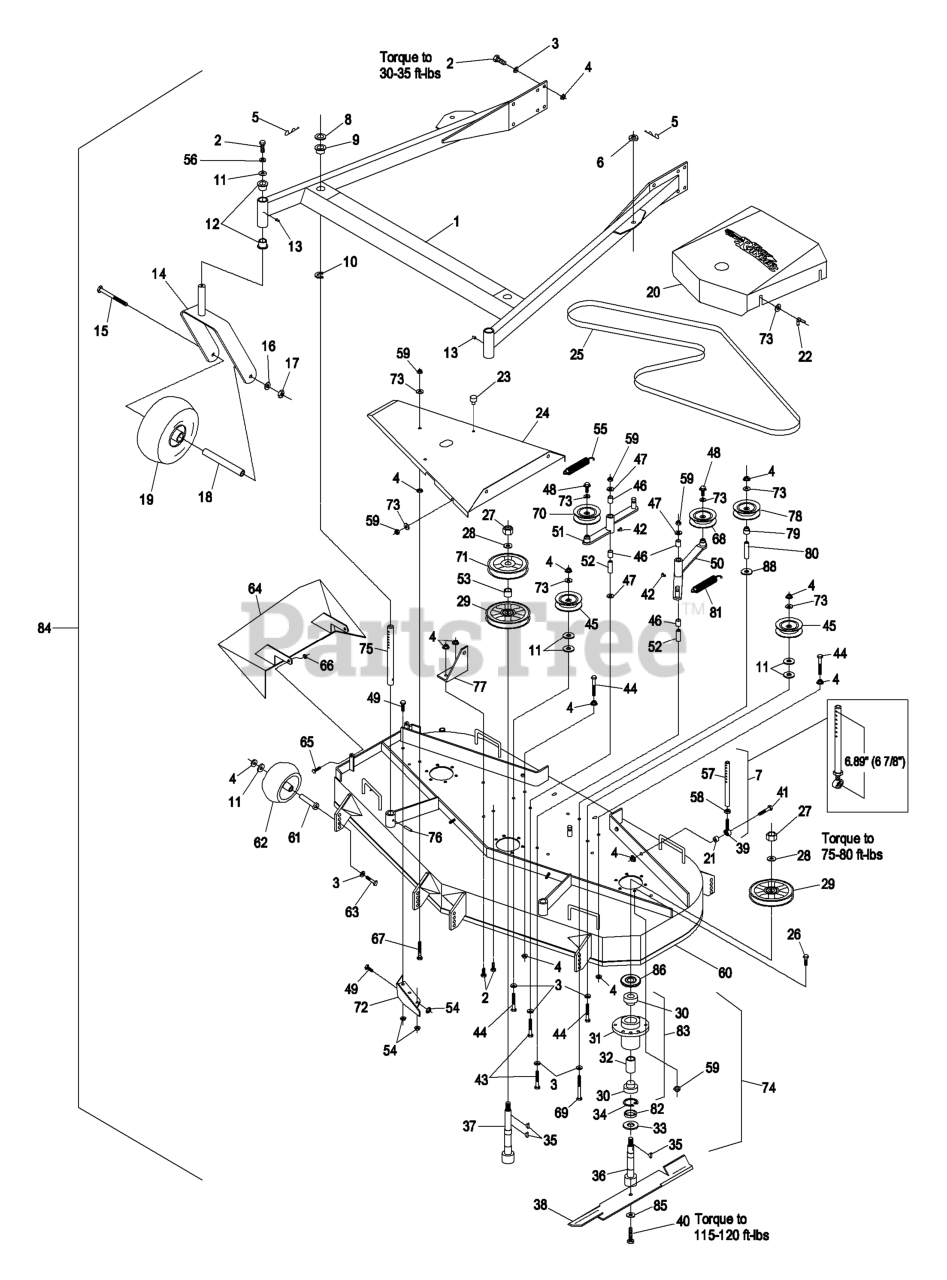

Exmark FMD604 - Exmark 60" Turf Ranger Front Mount Mower (SN: 320000 - 369999) (2002) 60" Mower Deck FMD603 Parts Lookup with Diagrams

1

Exmark 1-604847

SUPPORT ASSY-FMD60

$

Not available 

2

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

3

Exmark 98-5975

WASHER-BELLEVILLE

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number.

$3.49

$

In Stock, Qty 20+

4

Exmark 3290-357

NUT-HHF, WHIZ

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number.

$0.99

$

In Stock, Qty 20+

5

Exmark 806009

Hairpin, .177

$

Currently unavailable 

6

Exmark 1-323537

1-323539

(Superseded to 1-323539) 

$2.49

$

In Stock, Qty 20+

7

Exmark 1-414521

1-411532

(Superseded to 1-411532) 

Note: Must Be Assembled To 6.89" (Or Approx. 6 7/8") Length Between Center Of Ball Joint & Center Of Furthest Hole. See Illustration.

$147.99

$

In Stock, Qty 5

8

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 14

9

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 7

10

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

11

Exmark 1-373034

WASHER

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number.

$3.49

$

In Stock, Qty 20+

12

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 20+

13

Exmark 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+

14

Exmark 1-522143-01

116-7941-01

(Superseded to 116-7941-01) 

$90.99

$

In Stock, Qty 20+

15

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

16

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

17

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

18

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 6

Exmark 103-2169

SPACER FRONT CASTER

Note: Front Caster Spacer For Semi-Pneumatic Caster Tires Can Be Identified By Yellow Zinc Plating.

$14.99

$

In Stock, Qty 11

19

Exmark 103-1224

103-2171

(Superseded to 103-2171) 

Note: FMD523 & FMD603 Decks With S/N 274,506 & Above Have Semi-Pneumatic Caster Tires. FMD523 & FMD604 Decks With S/N 274,505 & Below Have Pneumatic Caster Tires.

$126.99

$

In Stock, only 4 left!

Exmark 1-513648

103-2171

(Superseded to 103-2171) 

Note: FMD523 & FMD603 Decks With S/N 274,506 & Above Have Semi-Pneumatic Caster Tires. FMD523 & FMD604 Decks With S/N 274,505 & Below Have Pneumatic Caster Tires.

$126.99

$

In Stock, only 4 left!

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 20+

Exmark 1-513810

BUSHING

$5.99

$

In Stock, Qty 17

Exmark 103-2170

BUSHING, SP CASTER

Note: Can Be Identified By A Groove On The Face.

$9.49

$

In Stock, Qty 6

Exmark 1-513807

103-2171

(Superseded to 103-2171) 

$126.99

$

In Stock, only 4 left!

Exmark 1-513808

TIRE

$43.99

$

In Stock, only 4 left!

20

Exmark 1-544849

DISCONTINUED

$

Not available 

21

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 2 left!

22

Exmark 1-543678

NUT-WING

$12.99

$

In Stock, Qty 5

23

Exmark 1-513291

DISCONTINUED

$

Not available 

24

Exmark 1-542588-01

WLD,DECK COVER

$210.99

$

Usually ships in 3-6 days

25

Exmark 1-603045

BELT-DRIVE, BLADE

(Superseded to 1-603045-SL) 

$90.99

$

Usually ships in 3-6 days

26

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

27

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

28

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

29

Exmark 1-553039

SHEAVE,BLADE DRIVE

$

Not available 

30

Exmark 1-513016

BEARING

$82.99

$

In Stock, Qty 20+

31

Exmark 1-323532

103-8280

(Superseded to 103-8280) 

$254.99

$

In Stock, only 3 left!

32

Exmark 1-323528

SPACER-BEARING

$9.49

$

In Stock, Qty 13

33

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, Qty 8

34

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

35

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

36

Exmark 103-0958

SHAFT,SPINDLE SHORT

$136.99

$

Usually ships in 3-6 days

37

Exmark 103-0959

DISCONTINUED

$

Not available 

38

Exmark 1-633483

103-2530-S

(Superseded to 103-2530-S) 

$34.99

$

In Stock, Qty 20+

Exmark 1-613250

103-1580-S

(Superseded to 103-1580-S) 

$36.99

$

In Stock, Qty 14

Exmark 1-613111

103-2510-S

(Superseded to 103-2510-S) 

$38.99

$

In Stock, Qty 14

Exmark 103-0301

103-0301-S

(Superseded to 103-0301-S) 

Note: Requires Installation Of Micro-Mulch Accessory For Proper Mulching. Mulch Kit P/N Mk603.

$34.99

$

In Stock, Qty 20+

Exmark 103-1580

103-1580-S

(Superseded to 103-1580-S) 

$36.99

$

In Stock, Qty 14

39

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

40

Exmark 103-0862

SCREW-CAP

$5.99

$

In Stock, Qty 18

41

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

42

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

43

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

44

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

45

Exmark 1-303516

IDLER,PULLEY

$52.99

$

In Stock, Qty 8

46

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

47

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

48

Exmark 3239-11

Bolt, Whizlock 3/8-16 X 1

$

Currently unavailable 

49

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

50

Exmark 1-602867-03

Arm, Deck Drive Idler

$

Currently unavailable 

Exmark 1-602865

ASM,IDLER ARM

$137.99

$

In Stock, only 1 left!

51

Exmark 1-602591-03

1-602604

(Superseded to 1-602604) 

$142.99

$

Usually ships in 3-6 days

Exmark 1-602604

ASM,IDLER ARM

$142.99

$

Usually ships in 3-6 days

52

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

53

Exmark 1-603504

SPACER-TUBE

$19.99

$

Usually ships in 3-6 days

54

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

55

Exmark 1-603413

SPRING-EXTENSION

$23.99

$

In Stock, only 4 left!

56

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

57

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

58

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

59

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

60

Exmark 1-612149

DISCONTINUED

$

Not available 

61

Exmark 1-603602

BUSHING-ROLLER

$23.99

$

In Stock, only 3 left!

62

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

63

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

64

Exmark 1-542606-01

109-2758-01

(Superseded to 109-2758-01) 

$186.99

$

Usually ships in 3-6 days

65

Exmark 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

66

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

67

Exmark 1-800031

DISCONTINUED

$

Not available 

68

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

69

Exmark 323-16

SCREW-HH

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number; Turf Ranger S/N 319,999 & Below Only. Provided In Turf Ranger Bolt Bag.

$3.49

$

In Stock, Qty 7

Exmark 323-23

SCREW-HH

Note: Turf Ranger S/N 320,000 & Above Only. Provided In Turf Ranger Bolt Bag.

$5.49

$

In Stock, Qty 16

70

Exmark 1-603497

IDLER,PULLEY

$53.99

$

Usually ships in 3-6 days

71

Exmark 1-613024

103-2270

(Superseded to 103-2270) 

$70.99

$

Usually ships in 3-6 days

72

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

73

Exmark 3256-24

WASHER-FLAT

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number.

$0.99

$

In Stock, Qty 14

74

Exmark 103-1187

ASM,CUTTER HSG SERVICE

Note: Includes Sheave, Washer & Nut.

$714.99

$

Usually ships in 3-6 days

Exmark 103-1186

ASM,CUTTER HSG SERVICE

Note: Includes Sheaves, Washer, Spacer & Nut.

$

Not available 

75

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

76

Exmark 1-806332

32121-15

(Superseded to 32121-15) 

$1.99

$

In Stock, Qty 7

77

Exmark 1-603620-01

BRACKET,SPRING ANCHOR

$26.99

$

Usually ships in 3-6 days

78

Exmark 1-603805

PULLEY-IDLER

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number.

$54.99

$

In Stock, Qty 12

79

Exmark 1-513791

BUSHING,IDLER

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number.

$5.49

$

In Stock, only 1 left!

80

Exmark 1-603494

SPACER-FENDER

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number; Turf Ranger S/N 319,999 & Below Only. Provided In Turf Ranger Bolt Bag.

$

Not available 

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

Note: Turf Ranger S/N 320,000 & Above Only. Provide In Turf Ranger Bolt Bag.

$11.99

$

In Stock, only 1 left!

81

Exmark 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, only 2 left!

82

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 11

83

Exmark 1-634619

103-8280

(Superseded to 103-8280) 

$254.99

$

In Stock, only 3 left!

84

Exmark 103-1306

DISCONTINUED (EXMARK)

$

Not available 

85

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

86

Exmark 103-1331

GUARD,BEARING TOP .880

$5.99

$

In Stock, only 1 left!

87

Exmark 103-2171

KIT, SP CASTER WHEEL REPL

Note: Kit 103-2171 Used To Install Semi-Pneumatic Casters On Machines Originally Fitted With Pneumatic Casters. Includes 103-1224 & 103-2169. Order 2 Per Machine.

$126.99

$

In Stock, only 4 left!

88

Exmark 1-373034

WASHER

Note: Available In An Idler Pulley Kit (P/N 1-601806). Each Kit Contains One Item Each Of The Referenced Item Number; Turf Ranger S/N 319,999 & Below Only. Provided In Turf Ranger Bolt Bag.

$3.49

$

In Stock, Qty 20+
