FMD603 - Exmark 60" Turf Tracer Hydro Walk-Behind Mower (SN: 260000 - 319999) (2001) Electrical Group Parts Diagram

60" Turf Tracer Hydro Walk-Behind Mower

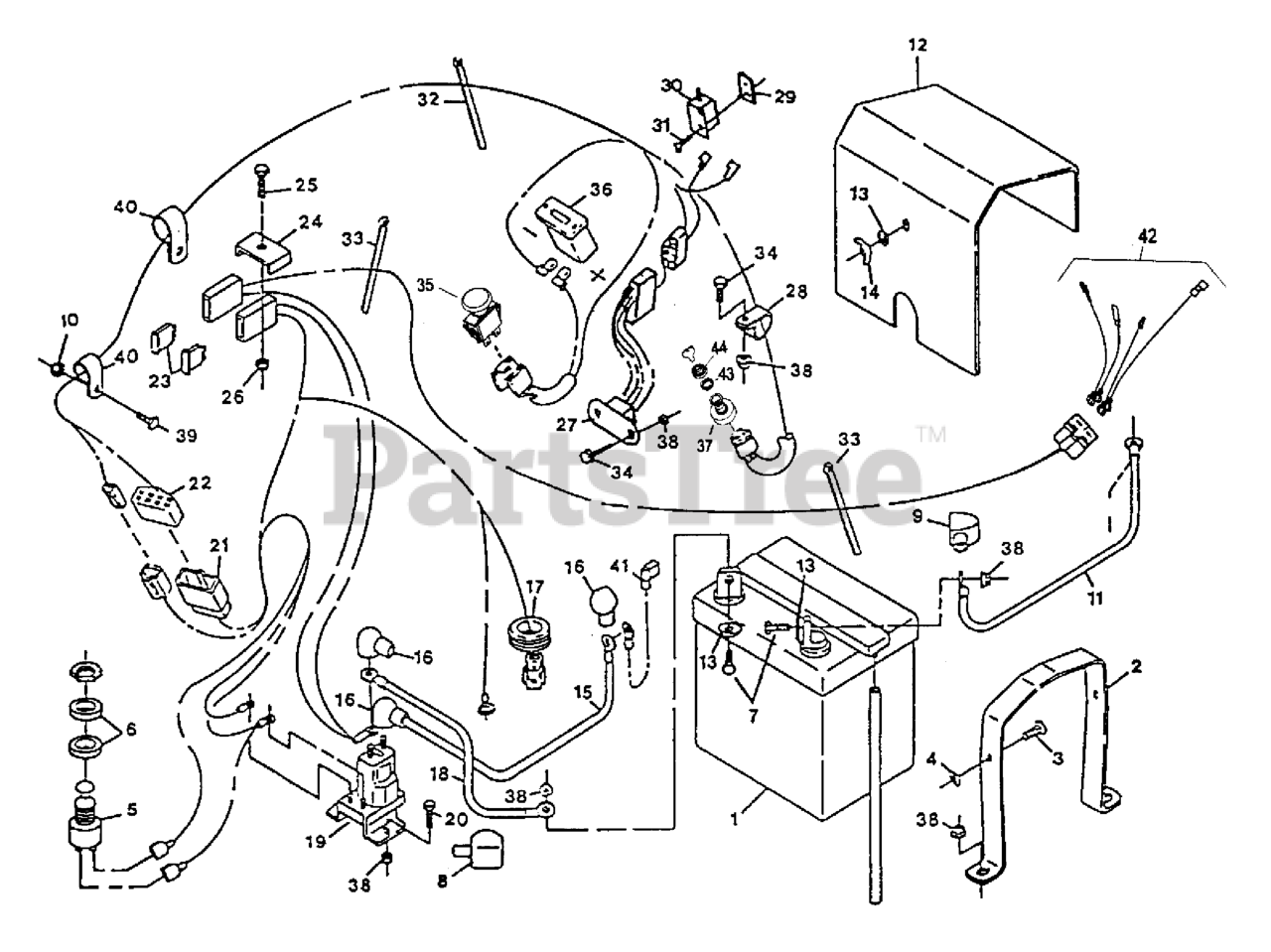

Electrical Group Parts Diagram

  • Title

1

Exmark 103-0293

DISCONTINUED (EXMARK)

$

$

Not available

2

Exmark 1-6038144-03

Strap, Battery Holddown

$

$

Currently unavailable

3

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

4

Exmark 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 1-603760

SWITCH,PUSH BUTTON

$66.99

$

In Stock, only 2 left!

0

6

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

7

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

9

Exmark 1-543390

INSULATOR, BATTERY -

$7.49

$

Usually ships in 3-6 days

0

10

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-543767

WIRE-GROUND

$21.99

$

In Stock, only 2 left!

0

12

Exmark 1-603105

103-3424
(Superseded to 103-3424)

$

$

Not available

13

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-803038

NUT-WING

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 1-603488

109-7654
(Superseded to 109-7654)

$36.99

$

Usually ships in 3-6 days

0

16

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

17

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

18

Exmark 1-513053

109-7653
(Superseded to 109-7653)

$35.99

$

In Stock, only 1 left!

0

19

Exmark 1-513075

117-1197
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 17

0

20

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

21

Exmark 1-613010

HARNESS,WIRING HYDRO

$

$

Not available

22

Exmark 1-613296

HARNESS,CONSOLE-TT

$172.99

$

Usually ships in 3-6 days

0

23

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

24

Exmark 1-603434

CLIP-FUSE BLOCK PLTD

$17.99

$

Usually ships in 3-6 days

0

25

Exmark 321-9

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

26

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

27

Exmark 1-613198

MODULE-OPC NO TIME DELAY

$216.99

$

In Stock, only 4 left!

0

28

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

29

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

30

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

31

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

32

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

33

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

34

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Exmark 1-633673

103-5221
(Superseded to 103-5221)

$58.99

$

In Stock, Qty 20+

0

36

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

37

Exmark 1-543070

SWITCH,IGNITION

$44.99

$

In Stock, Qty 20+

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

38

Exmark 32328-33

Nut, Whizlock 1/4-20

$

$

Currently unavailable

39

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

40

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

41

Exmark 1-543084

DISCONTINUED

Note: (Koh only)

$

$

Not available

42

Exmark 1-613262

HARNESS,WIRING 19KA

Note: (19hp Kaw only)

$37.99

$

Usually ships in 3-6 days

0

43

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 6

0

44

Exmark 103-0499

SEAL-SWITCH, IGNITION

$2.99

$

In Stock, only 2 left!

0
