FMD603 - Exmark 60" Turf Tracer Hydro Walk-Behind Mower (SN: 150000 - 189999) (1998) Engine Deck Group Parts Diagram

60" Turf Tracer Hydro Walk-Behind Mower

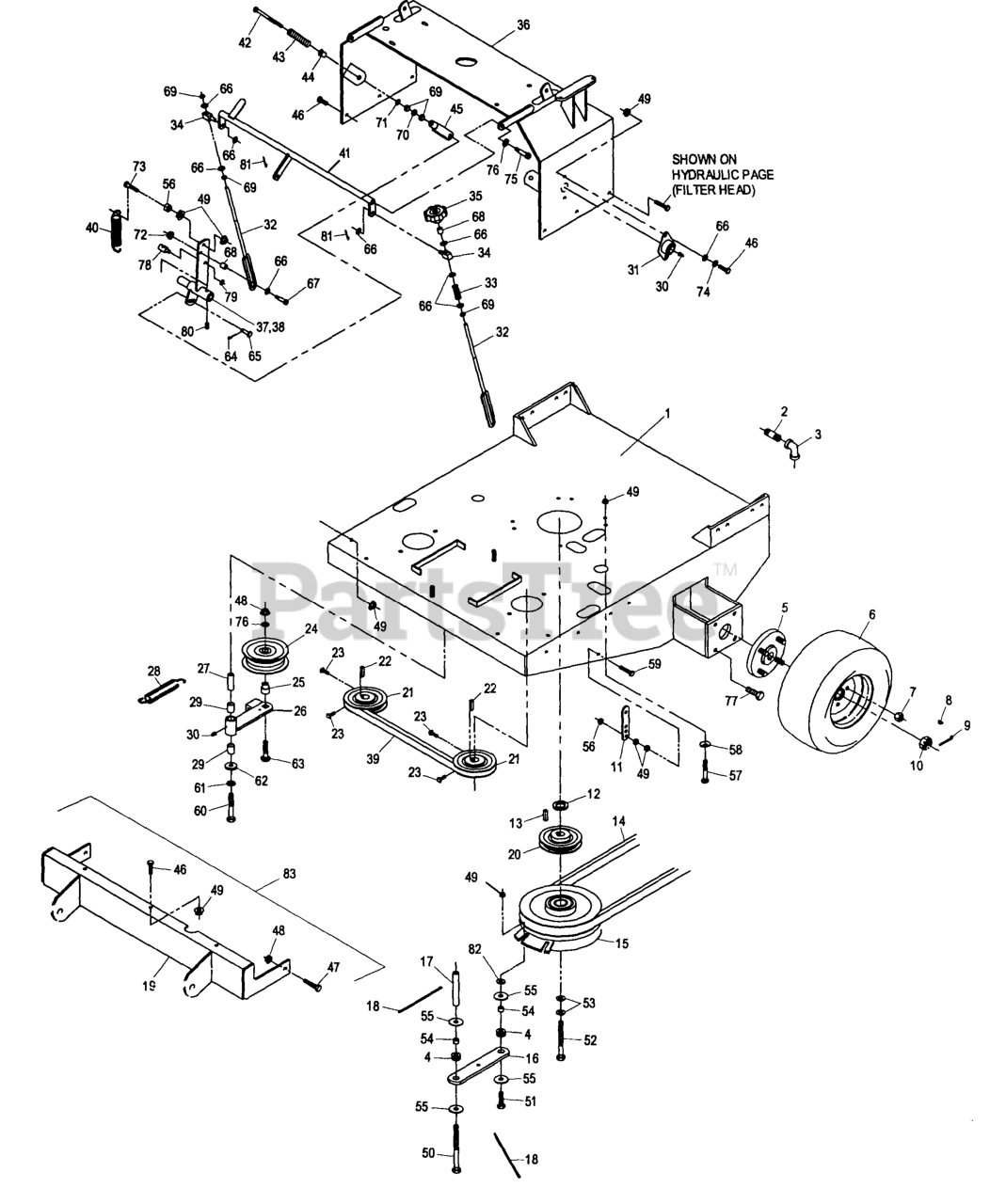

Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-602944

Engine Deck Weldment

$

$

Currently unavailable

2

Exmark 1-543064

NIPPLE,PIPE

Note: Use Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

3

Exmark 1-303428

ELBOW-90 DEG

Note: Use Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

4

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

5

Exmark 1-602997

112-9049
(Superseded to 112-9049)

Note: Use anti-seize on hub bore

$188.99

$

In Stock, only 1 left!

0

Exmark 1-613150

1-633926
(Superseded to 1-633926)

$4.99

$

In Stock, Qty 11

0

6

Exmark 1-603627

1-613263
(Superseded to 1-613263)

$195.99

$

Usually ships in 3-6 days

0

Exmark 1-603763

1-613264
(Superseded to 1-613264)

$152.99

$

Usually ships in 3-6 days

0

Exmark 1-603715

RIM-WHEEL
(Superseded to 107-2475)

$77.99

$

In Stock, only 2 left!

0

7

Exmark 1-513011

242-50
(Superseded to 242-50)

$1.99

$

In Stock, Qty 20+

0

8

Exmark 1-807019

KEY-WOODRUFF

$18.99

$

In Stock, only 2 left!

0

9

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

0

10

Exmark 1-803040

32136-5
(Superseded to 32136-5)

$7.99

$

Usually ships in 3-6 days

0

11

Exmark 1-613089

TAB-SPRING, EXTENSION

$10.99

$

In Stock, Qty 5

0

12

Exmark 1-543214

103-2308
(Superseded to 103-2308)

$9.49

$

In Stock, Qty 5

0

13

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

14

Exmark 1-603306

BELT,DECK DRIVE
(Superseded to 1-603306-SL)

$56.99

$

In Stock, Qty 11

0

Exmark 1-603306

BELT,DECK DRIVE
(Superseded to 1-603306-SL)

$56.99

$

In Stock, Qty 11

0

15

Exmark 1-614217

1-611223
(Superseded to 1-611223)

$

$

Not available

Exmark 1-611248

103-0662
(Superseded to 103-0662)

$503.99

$

In Stock, only 1 left!

0

16

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 1 left!

0

17

Exmark 1-323195-01

SPACER-SHIELD

$7.99

$

In Stock, only 2 left!

0

18

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 1-602438-01

WLD,SULKY HITCH

$

$

Not available

20

Exmark 1-603589

DISCONTINUED

Note: Install sheave with long end of hub up

$

$

Not available

21

Exmark 1-603778

SHEAVE - PUMP

$88.99

$

Usually ships in 3-6 days

0

22

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

23

Exmark 1-803050

SCREW-SET

Note: Use (Part No. 840022) Pro-lock, nut type (.5 ml tube) on threads.

$2.99

$

In Stock, Qty 8

0

24

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

25

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

26

Exmark 1-602521

IDLER ARM ASM

$115.99

$

Usually ships in 3-6 days

0

Exmark 1-602458

1-602521
(Superseded to 1-602521)

$115.99

$

Usually ships in 3-6 days

0

27

Exmark 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

28

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

29

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

30

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

31

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

32

Exmark 1-412211

1-613206
(Superseded to 1-613206)

$17.99

$

Usually ships in 3-6 days

0

33

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

34

Exmark 1-603676

126-8571
(Superseded to 126-8571)

$5.49

$

In Stock, only 2 left!

0

35

Exmark 1-413151

KNOB-TRACKING

$9.49

$

In Stock, Qty 5

0

36

Exmark 1-612165-01

DISCONTINUED (EXMARK)

$

$

Not available

37

Exmark 1-612160

1-611304
(Superseded to 1-611304)

$

$

Not available

38

Exmark 1-612162

103-2344
(Superseded to 103-2344)

Note: (Not shown)

$

$

Not available

39

Exmark 1-603809

BELT-HYDRO TRANS DR

$37.99

$

In Stock, only 1 left!

0

40

Exmark 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

41

Exmark 1-612173-01

WLD,CRANK SPEED CONTROL

$

$

Not available

42

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

43

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

44

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

45

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

46

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

47

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

48

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

49

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-800385

322-38
(Superseded to 322-38)

$6.49

$

Usually ships in 3-6 days

0

51

Exmark 1-800274

322-6
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

52

Exmark 1-800819

3212-10
(Superseded to 3212-10)

Note: Use (Part No. 840022) Pro-lock, nut type (.5 ml tube) on threads.

$6.49

$

In Stock, only 1 left!

0

53

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

54

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

55

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

56

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

57

Exmark 1-800275

322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

58

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

59

Exmark 1-800016

BOLT-TAP, HH

$1.49

$

Usually ships in 3-6 days

0

60

Exmark 1-800298

323-12
(Superseded to 323-12)

Note: Use (Part No. 840022) Pro-lock, nut type (.5 ml tube) on threads.

$2.49

$

In Stock, Qty 10

0

61

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 17

0

62

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

63

Exmark 1-807517

3231-29
(Superseded to 3231-29)

$7.49

$

In Stock, only 2 left!

0

64

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

65

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

66

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

67

Exmark 1-809057

SCREW-HSH

Note: Use (Part No. 840022) Pro-lock, nut type (.5 ml tube) on threads.

$

$

Not available

68

Exmark 1-603903

SPACER

$5.49

$

In Stock, Qty 20+

0

69

Exmark 1-804521

3219-2
(Superseded to 3219-2)

$0.99

$

In Stock, Qty 11

0

70

Exmark 1-804758

3220-2
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 20+

0

71

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

72

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

73

Exmark 1-800274

322-6
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

74

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

75

Exmark 1-809056

SCREW-HSH

Note: Use (Part No. 840022) Pro-lock, nut type (.5 ml tube) on threads.

$7.99

$

In Stock, only 2 left!

0

76

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 14

0

77

Exmark 1-803045

3234-12
(Superseded to 3234-12)

$1.99

$

Usually ships in 3-6 days

0

78

Exmark 1-413227

DISCONTINUED

$

$

Not available

79

Exmark 1-808520

32151-73
(Superseded to 32151-73)

$2.99

$

In Stock, Qty 6

0

80

Exmark 1-803022

SCREW-SET

Note: Use (Part No. 840022) Pro-lock, nut type (.5 ml tube) on threads.

$2.99

$

In Stock, Qty 20+

0

81

Exmark 1-806753

3272-5
(Superseded to 3272-5)

$1.49

$

In Stock, Qty 5

0

82

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

83

Exmark 1-601000

Hitch Kit, Sulky

$

$

Currently unavailable

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days

0
