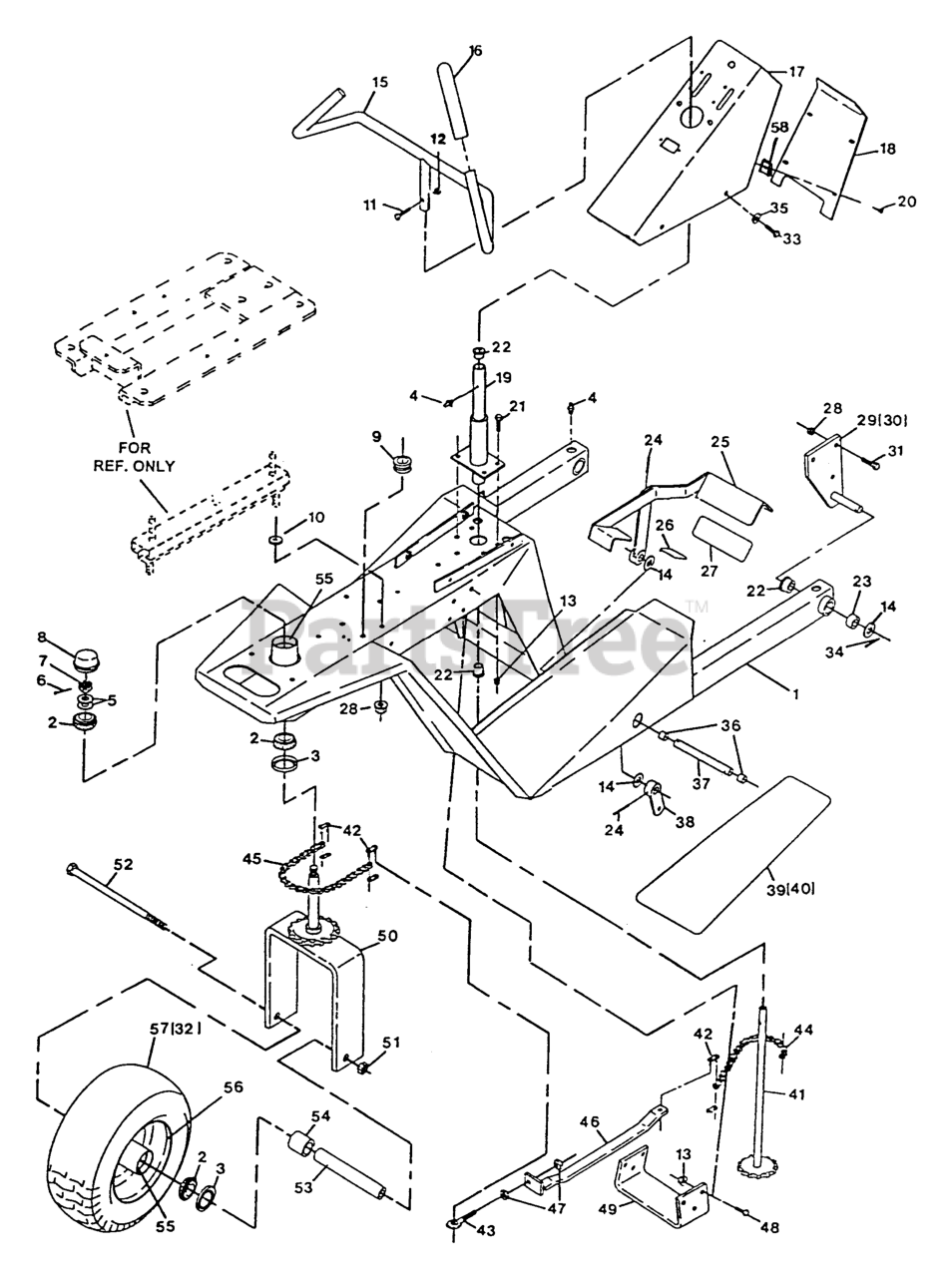

FMD603 - Exmark 60" Turf Ranger Front Mount Mower (SN: 130000 - 149999) (1997) Rider Frame And Steering Parts Diagram

60" Turf Ranger Front Mount Mower

Rider Frame And Steering Parts Diagram

  • Title
1

Exmark 1-542920-01

103-3440
(Superseded to 103-3440)

$

$

Not available

2

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

3

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

4

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 20+

0

5

Exmark 1-805269

3256-28
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

6

Exmark 1-806770

3272-17
(Superseded to 3272-17)

$2.99

$

In Stock, Qty 5

0

7

Exmark 1-803040

32136-5
(Superseded to 32136-5)

$8.49

$

In Stock, only 1 left!

0

8

Exmark 1-543513

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

9

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

10

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-800294

323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

13

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

14

$5.49

$

In Stock, Qty 13

0

15

Exmark 1-542428-03

DISCONTINUED

$

$

Not available

16

Exmark 1-543575

104-9838
(Superseded to 104-9838)

$5.99

$

In Stock, Qty 20+

0

17

Exmark 1-543978-01

DISCONTINUED (EXMARK)

$

$

Not available

18

Exmark 1-543482-01

PLATE-CONSOLE, FRONT

$

$

Not available

19

Exmark 1-542728-03

WLD,STEERING POST

$

$

Not available

20

Exmark 1-802006

32104-60
(Superseded to 32104-60)

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 1-800290

323-4
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

22

Exmark 1-303199

DISCONTINUED

$

$

Not available

23

Exmark 1-303200

SLEEVE,BEARING

$

$

Not available

24

Exmark 1-806331

PIN,ROLL

$

$

Not available

25

Exmark 1-542183-01

103-3439
(Superseded to 103-3439)

$

$

Not available

26

Exmark 1-543161

DISCONTINUED

$

$

Not available

27

Exmark 1-543160

PAD,ANTISKID

$

$

Not available

28

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

29

Exmark 1-542196-01

WLD,BRACKET PIVOT RH

$

$

Not available

30

Exmark 1-542194-01

WLD,BRAKCET PIVOT LH

Note: Not lllustrated.

$

$

Not available

31

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

32

Exmark 1-543679

TIRE ONLY 8NHS

$153.99

$

Usually ships in 3-6 days

0

33

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

34

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

35

Exmark 1-805255

3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-513588

DISCONTINUED

$

$

Not available

37

Exmark 1-543172

DISCONTINUED

$

$

Not available

38

Exmark 1-542140-01

WLD,FOOT PEDAL LEVER

$

$

Not available

39

Exmark 1-543159

PAD,ANTISKID RH

$

$

Not available

40

Exmark 1-543158

PAD,ANTISKID LH

Note: Not lllustrated.

$

$

Not available

41

Exmark 1-542850

DISCONTINUED (EXMARK)

$

$

Not available

42

Exmark 1-543573

DISCONTINUED

$

$

Not available

43

Exmark 1-543579

EYEBOLT, RH

$

$

Not available

44

Exmark 1-543885

DISCONTINUED

$

$

Not available

45

Exmark 1-543886

DISCONTINUED

$

$

Not available

46

$85.99

$

Usually ships in 3-6 days

0

47

Exmark 1-804751

3218-2
(Superseded to 3218-2)

$0.99

$

In Stock, Qty 20+

0

48

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

49

Exmark 1-553007-01

STOP,ACTUATOR

$

$

Not available

50

Exmark 1-542872-01

DISCONTINUED

$

$

Not available

51

Exmark 1-803042

DISCONTINUED

$

$

Not available

52

Exmark 1-800346

SCRW,CAP HH

$41.99

$

Usually ships in 3-6 days

0

53

Exmark 1-543552

BUSHING, WHEEL - PLT

$64.99

$

Usually ships in 3-6 days

0

54

Exmark 1-543556

SPACER,WHEEL SHORT

$10.99

$

Usually ships in 3-6 days

0

55

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

56

Exmark 1-543674

WHEEL 8.00 W/HUB

$

$

Not available

57

Exmark 1-543397

ASM,WHEEL & TIRE

$

$

Not available

58

Exmark 1-803055

CLIP,SGLTHRD TYPU

$

$

Not available

Exmark 1-850337

PAINT,SPRAY RED

$33.99

$

In Stock, Qty 16

0
