FMD60 - Exmark 60" Turf Tracer Hydro Walk-Behind Mower (SN: 115000 - 129999) (1996) Engine Deck Group Parts Diagram

60" Turf Tracer Hydro Walk-Behind Mower

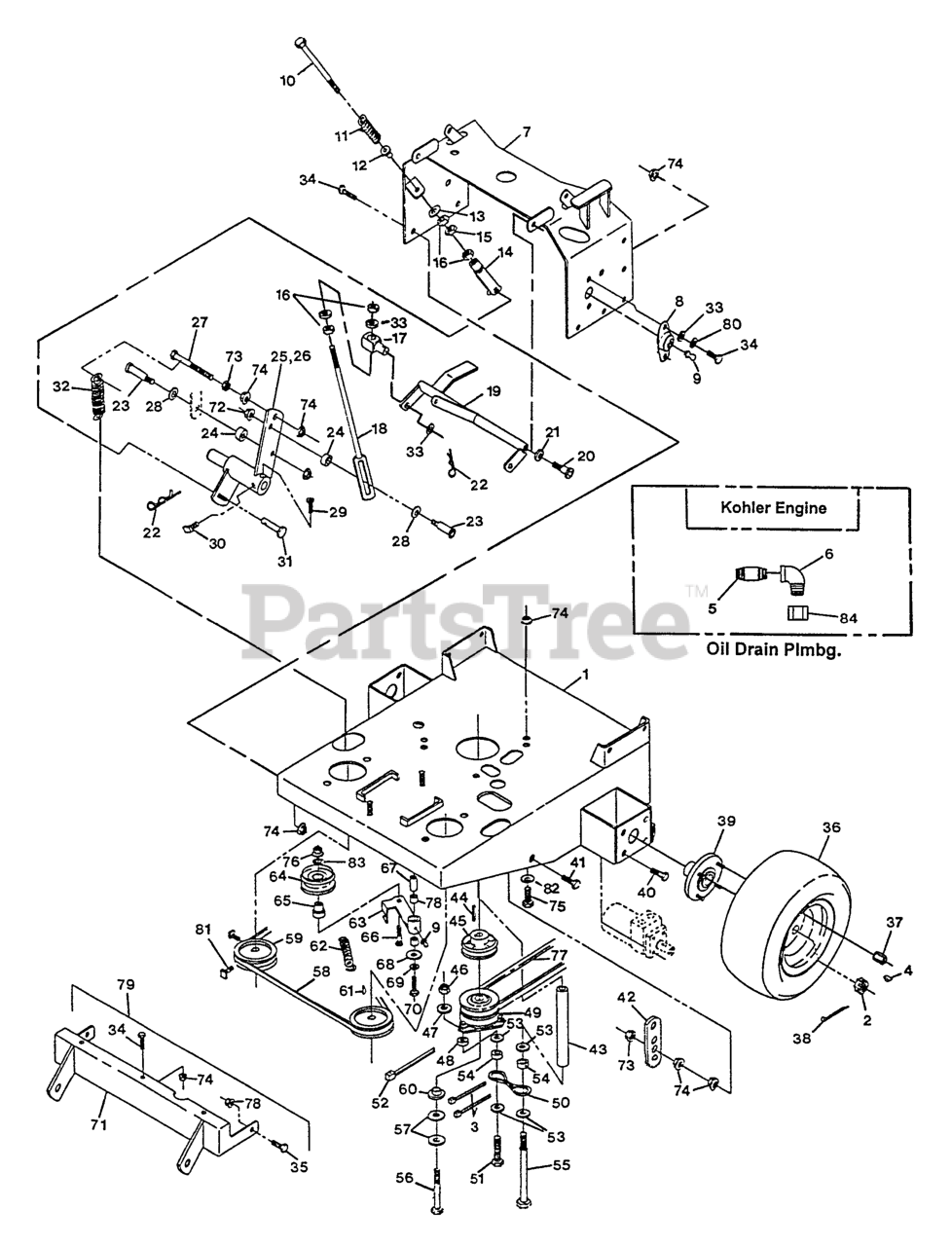

Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-602944

Engine Deck Weldment

$

$

Currently unavailable

2

Exmark 1-803040

32136-5
(Superseded to 32136-5)

$7.99

$

Usually ships in 3-6 days

0

3

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

4

Exmark 1-807019

KEY-WOODRUFF

$18.99

$

In Stock, only 2 left!

0

5

Exmark 1-543064

NIPPLE,PIPE

Note: Use Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

6

Exmark 1-403124

ELBOW-90 DEG

Note: Use Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

7

Exmark 1-602744

1-612165-01
(Superseded to 1-612165-01)

$

$

Not available

8

Exmark 1-543514

FLANGE MTG, SIDE

$35.99

$

Usually ships in 3-6 days

0

9

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

10

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

11

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

12

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

13

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

15

Exmark 1-804758

3220-2
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 20+

0

16

Exmark 1-804521

3219-2
(Superseded to 3219-2)

$0.99

$

In Stock, Qty 11

0

17

Exmark 1-603676

126-8571
(Superseded to 126-8571)

$5.49

$

In Stock, only 2 left!

0

18

Exmark 1-602742

1-613206
(Superseded to 1-613206)

$17.99

$

Usually ships in 3-6 days

0

19

Exmark 1-602695-01

DISCONTINUED (EXMARK)

$

$

Not available

20

Exmark 1-809056

SCREW-HSH

Note: Use (Part No. 840022) Pro-lock, nut type (.5ml tube) on threads.

$7.99

$

In Stock, only 2 left!

0

21

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 18

0

22

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-809057

SCREW-HSH

Note: Use (Part No. 840022) Pro-lock, nut type (.5ml tube) on threads.

$

$

Not available

24

Exmark 1-603903

SPACER

$5.49

$

In Stock, only 1 left!

0

25

Exmark 1-602671-01

DISCONTINUED

$

$

Not available

26

Exmark 1-602673-01

WLD,LH CONTROL ARM

$137.99

$

Usually ships in 3-6 days

0

27

Exmark 1-800274

322-6
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

28

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

29

Exmark 1-809058

DISCONTINUED

Note: Use (Part No. 840022) Pro-lock, nut type (.5ml tube) on threads.

$

$

Not available

30

Exmark 1-803022

SCREW-SET

Note: Use (Part No. 840022) Pro-lock, nut type (.5ml tube) on threads.

$2.99

$

In Stock, Qty 20+

0

31

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

32

Exmark 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

33

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

34

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

35

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

36

Exmark 1-603627

1-613263
(Superseded to 1-613263)

$195.99

$

Usually ships in 3-6 days

0

Exmark 1-603763

1-613264
(Superseded to 1-613264)

$152.99

$

Usually ships in 3-6 days

0

Exmark 1-603715

RIM-WHEEL
(Superseded to 107-2475)

$77.99

$

In Stock, only 2 left!

0

37

Exmark 1-513011

242-50
(Superseded to 242-50)

$1.99

$

In Stock, Qty 20+

0

38

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 19

0

39

Exmark 1-602997

112-9049
(Superseded to 112-9049)

Note: Use Anti-Seize Compound on tapered bore of hub

$188.99

$

Usually ships in 3-6 days

0

40

Exmark 1-803045

3234-12
(Superseded to 3234-12)

$1.99

$

Usually ships in 3-6 days

0

41

Exmark 1-800016

BOLT-TAP, HH

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 1-613089

TAB-SPRING, EXTENSION

$10.99

$

In Stock, Qty 5

0

43

Exmark 1-603469-01

DISCONTINUED

$

$

Not available

44

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

45

Exmark 1-603589

DISCONTINUED

$

$

Not available

46

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

47

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

48

Exmark 1-323093

DISCONTINUED

$

$

Not available

49

Exmark 1-601979

1-611223
(Superseded to 1-611223)

Note: For units with Serial No.'s 87,765 or lower, replace electric clutch with Clutch Kit, Part No. 601979. This kit includes the new Warner clutch and the necessary parts to install this kit to your unit.

$

$

Not available

50

Exmark 1-602974

DISCONTINUED

$

$

Not available

51

Exmark 1-800275

322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

52

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

53

Exmark 1-213069

WASHER

$2.99

$

In Stock, only 2 left!

0

54

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.49

$

In Stock, only 2 left!

0

55

Exmark 1-800286

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

56

Exmark 1-800819

3212-10
(Superseded to 3212-10)

Note: Use (Part No. 840022) Pro-lock, nut type (.5ml tube) on threads.

$6.49

$

In Stock, only 1 left!

0

57

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

58

Exmark 1-603809

BELT-HYDRO TRANS DR

$37.99

$

In Stock, only 1 left!

0

59

Exmark 1-603778

SHEAVE - PUMP

$88.99

$

Usually ships in 3-6 days

0

60

Exmark 1-603609

BUSHING,CLUTCH KEEPER

$28.99

$

In Stock, only 1 left!

0

61

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

62

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 1 left!

0

63

Exmark 1-602521

IDLER ARM ASM

$115.99

$

Usually ships in 3-6 days

0

Exmark 1-602458

1-602521
(Superseded to 1-602521)

$115.99

$

Usually ships in 3-6 days

0

64

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

65

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

66

Exmark 1-807517

3231-29
(Superseded to 3231-29)

$7.49

$

Usually ships in 3-6 days

0

67

Exmark 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

0

68

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

69

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 17

0

70

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.49

$

In Stock, Qty 12

0

71

Exmark 1-602438-01

WLD,SULKY HITCH

$

$

Not available

72

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

73

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

74

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

75

Exmark 1-800275

322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

76

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

77

Exmark 1-611022

Belt/Shield Kit (60")

$

$

Currently unavailable

Exmark 1-603306

BELT,DECK DRIVE
(Superseded to 1-603306-SL)

$56.99

$

In Stock, Qty 11

0

Exmark 1-611023

Belt/Shield Kit (52")

$

$

Currently unavailable

Exmark 1-603306

BELT,DECK DRIVE
(Superseded to 1-603306-SL)

$56.99

$

In Stock, Qty 11

0

78

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

79

Exmark 1-601000

Hitch, Sulky

$

$

Currently unavailable

80

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

81

Exmark 1-803050

SCREW-SET

Note: Use (Part No. 840022) Pro-lock, nut type (.5ml tube) on threads.

$2.99

$

In Stock, Qty 8

0

82

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

83

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 18

0

84

Exmark 1-543233

CAP-HEX

Note: Use Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days

0
