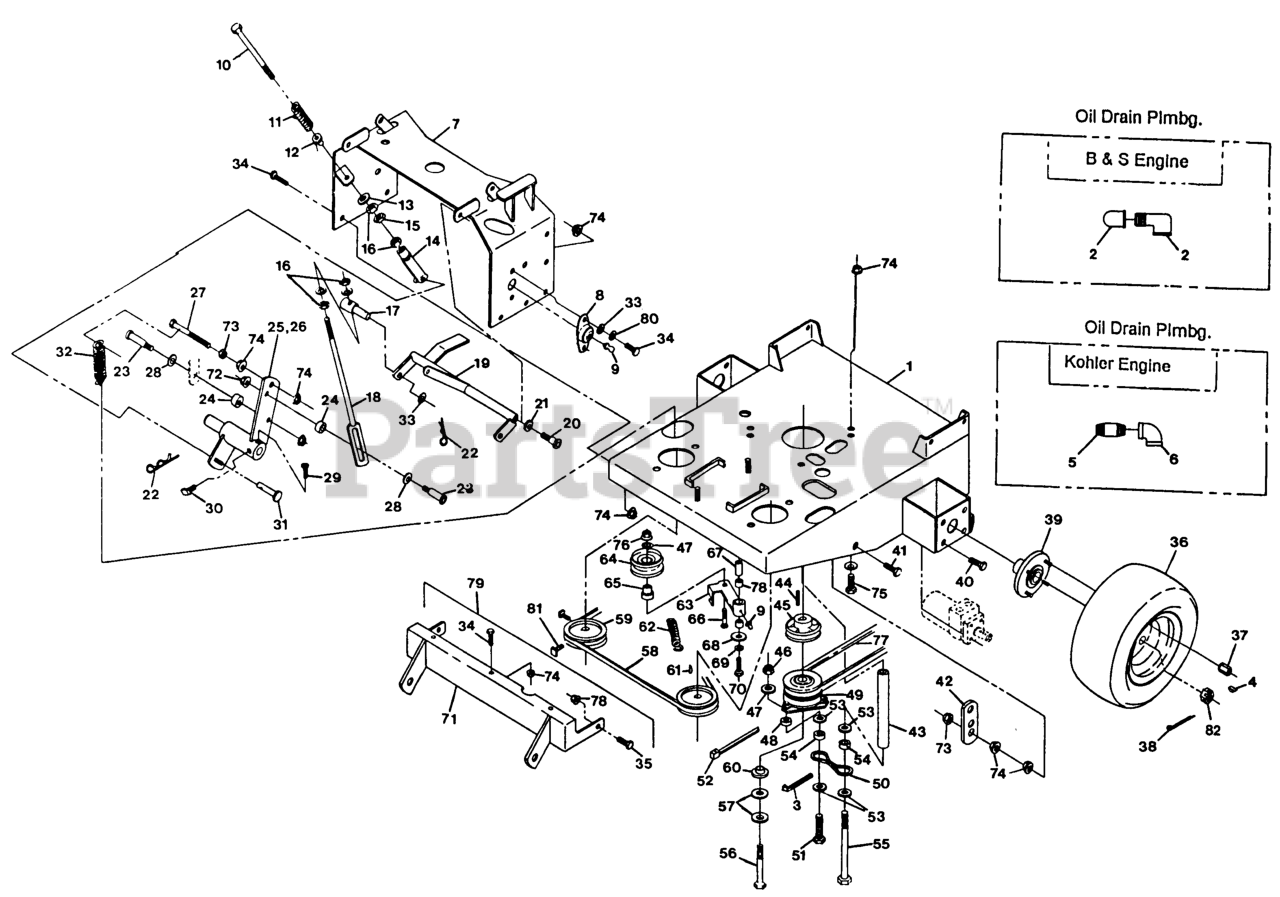

FMD60 - Exmark 60" Turf Tracer Hydro Walk-Behind Mower (SN: 090000 - 101999) (1994) Engine Deck Group Parts Diagram

60" Turf Tracer Hydro Walk-Behind Mower

Engine Deck Group Parts Diagram

  • Title
1

Exmark 1-602944

Engine Deck Weldment

$

$

Currently unavailable

2

Exmark 1-303431

FITTING-ELBOW-90

$

$

Not available

3

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

4

Exmark 1-807019

KEY-WOODRUFF

$18.99

$

In Stock, only 2 left!

0

5

Exmark 1-543064

NIPPLE,PIPE

$

$

Not available

6

Exmark 1-303428

ELBOW-90 DEG

$

$

Not available

7

Exmark 1-602744

1-612165-01
(Superseded to 1-612165-01)

$

$

Not available

8

Exmark 1-543514

FLANGE MTG, SIDE

$35.99

$

Usually ships in 3-6 days

0

9

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

10

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

11

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

12

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

13

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

15

Exmark 1-804758

3220-2
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 20+

0

16

Exmark 1-804521

3219-2
(Superseded to 3219-2)

$0.99

$

In Stock, Qty 11

0

17

Exmark 1-603676

126-8571
(Superseded to 126-8571)

$5.49

$

In Stock, only 2 left!

0

18

Exmark 1-602742

1-613206
(Superseded to 1-613206)

$17.99

$

Usually ships in 3-6 days

0

19

Exmark 1-602695-01

DISCONTINUED (EXMARK)

$

$

Not available

20

Exmark 1-809056

SCREW-HSH

$7.99

$

In Stock, only 2 left!

0

21

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 14

0

22

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-809057

SCREW-HSH

$

$

Not available

24

$5.49

$

In Stock, Qty 20+

0

25

Exmark 1-602671-01

DISCONTINUED

$

$

Not available

26

Exmark 1-602673-01

WLD,LH CONTROL ARM

$137.99

$

Usually ships in 3-6 days

0

27

Exmark 1-800274

322-6
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

28

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

29

Exmark 1-809058

DISCONTINUED

$

$

Not available

30

Exmark 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

31

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

32

Exmark 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

33

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

34

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

35

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

36

Exmark 1-603714

1-413473
(Superseded to 1-413473)

$206.99

$

Usually ships in 3-6 days

0

37

Exmark 1-513011

242-50
(Superseded to 242-50)

$1.99

$

In Stock, Qty 20+

0

38

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

0

39

Exmark 1-602997

112-9049
(Superseded to 112-9049)

$188.99

$

In Stock, only 1 left!

0

40

Exmark 1-803045

3234-12
(Superseded to 3234-12)

$1.99

$

Usually ships in 3-6 days

0

41

Exmark 1-800016

BOLT-TAP, HH

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 1-603801

ANCHOR-SPRING

$21.99

$

Usually ships in 3-6 days

0

43

Exmark 1-603469-01

DISCONTINUED

$

$

Not available

44

Exmark 1-807010

DISCONTINUED (EXMARK)

$

$

Not available

45

Exmark 1-603589

DISCONTINUED

$

$

Not available

46

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

47

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

48

Exmark 1-323093

DISCONTINUED

$

$

Not available

49

Exmark 1-603539

1-611223
(Superseded to 1-611223)

$

$

Not available

50

Exmark 1-602974

DISCONTINUED

$

$

Not available

51

Exmark 1-800275

322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

52

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

53

$2.99

$

In Stock, only 2 left!

0

54

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.49

$

In Stock, only 2 left!

0

55

Exmark 1-800287

DISCONTINUED

$

$

Not available

56

Exmark 1-800820

3212-12
(Superseded to 3212-12)

$3.49

$

In Stock, Qty 14

0

57

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

58

Exmark 1-603809

BELT-HYDRO TRANS DR

$37.99

$

In Stock, only 1 left!

0

59

Exmark 1-603778

SHEAVE - PUMP

$88.99

$

Usually ships in 3-6 days

0

60

Exmark 1-603609

BUSHING,CLUTCH KEEPER

$28.99

$

In Stock, only 1 left!

0

$5.99

$

In Stock, Qty 11

0

62

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

63

Exmark 1-602521

IDLER ARM ASM

$115.99

$

Usually ships in 3-6 days

0

Exmark 1-602458

1-602521
(Superseded to 1-602521)

$115.99

$

Usually ships in 3-6 days

0

64

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

65

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

66

Exmark 1-807517

3231-29
(Superseded to 3231-29)

$7.49

$

In Stock, only 2 left!

0

67

Exmark 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

68

$3.49

$

In Stock, Qty 20+

0

69

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 17

0

70

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

71

Exmark 1-602438-01

WLD,SULKY HITCH

$

$

Not available

72

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

73

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

74

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

75

Exmark 1-800275

322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

76

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

77

Exmark 1-611022

Belt/Shield Kit (60")

$

$

Currently unavailable

Exmark 1-603306

BELT,DECK DRIVE
(Superseded to 1-603306-SL)

$56.99

$

In Stock, Qty 11

0

Exmark 1-611023

Belt/Shield Kit (52")

$

$

Currently unavailable

Exmark 1-603306

BELT,DECK DRIVE
(Superseded to 1-603306-SL)

$56.99

$

In Stock, Qty 11

0

78

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

79

Exmark 1-601000

Turf Tracer Hydro Kit, Hitch Sulky

$

$

Currently unavailable

80

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

81

Exmark 1-803050

SCREW-SET

$2.99

$

In Stock, Qty 8

0

82

Exmark 1-809068

DISCONTINUED (EXMARK)

$

$

Not available
