FMD60 - Exmark 60" Turf Ranger Front Mount Mower (SN: 102000 - 114999) (1995) Seat Assembly And Lift Actuator Parts Diagram

60" Turf Ranger Front Mount Mower

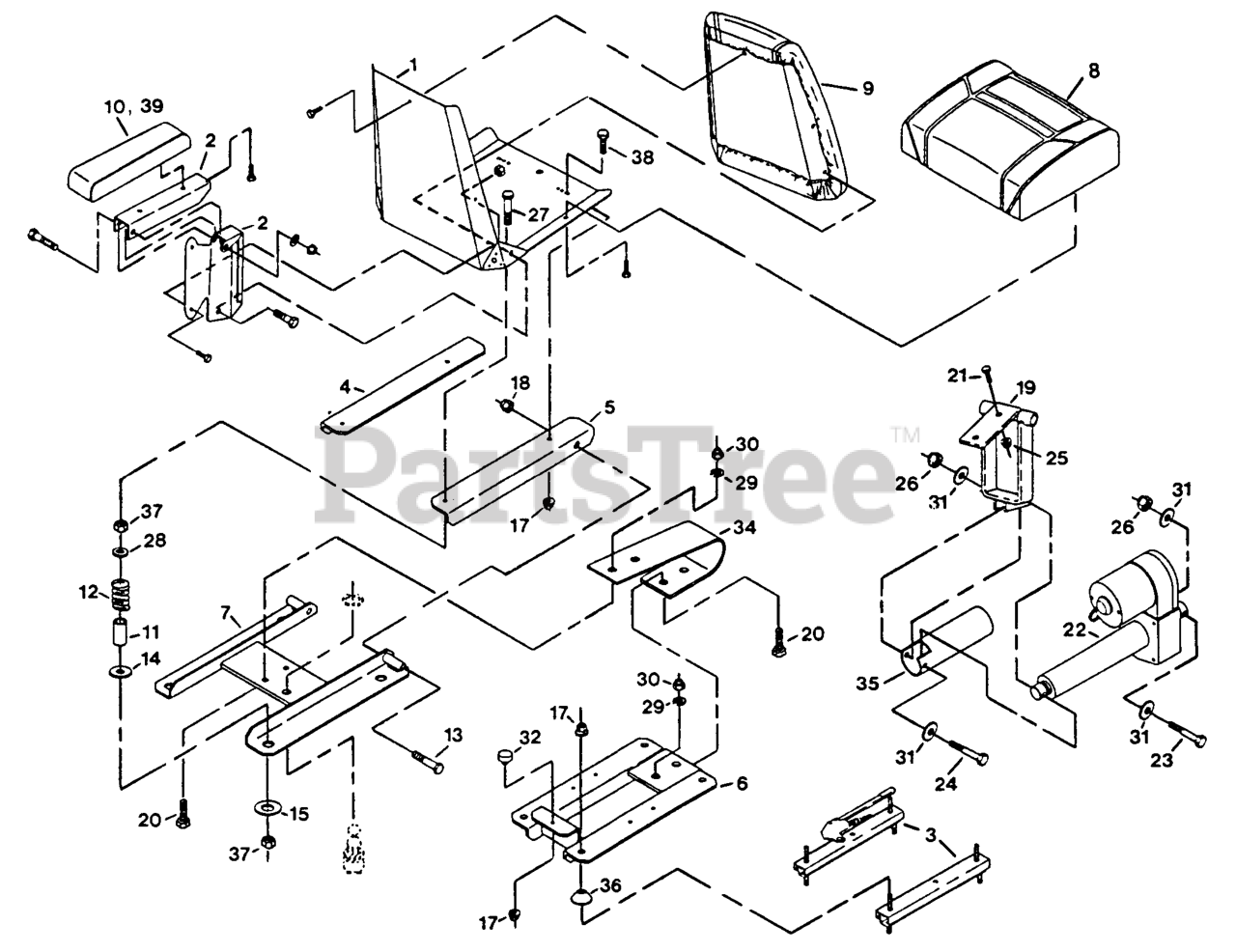

Seat Assembly And Lift Actuator Parts Diagram

  • Title

1

Exmark 1-543347

103-3524
(Superseded to 103-3524)

$679.99

$

In Stock, only 1 left!

0

2

Exmark 1-543406

DISCONTINUED
(Superseded to 103-1285)

Note: (optional) Hardware is provided with each kit.

$

$

Not available

3

Exmark 1-543357

DISCONTINUED

$

$

Not available

4

Exmark 1-543319-03

RAIL,SEAT LH

Note: (LH)

$

$

Not available

5

Exmark 1-543321-03

RAIL,SEAT RH

Note: (RH)

$

$

Not available

6

Exmark 1-542307-03

WLD,RAIL BASE

$186.99

$

Usually ships in 3-6 days

0

7

Exmark 1-542315-03

DISCONTINUED

$

$

Not available

8

Exmark 1-543407

103-3521
(Superseded to 103-3521)

$264.99

$

In Stock, Qty 5

0

9

Exmark 1-543408

103-3520
(Superseded to 103-3520)

$232.99

$

In Stock, only 2 left!

0

10

Exmark 1-543409

103-0292
(Superseded to 103-0292)

Note: (RH)

$97.99

$

In Stock, only 2 left!

0

11

Exmark 1-513479

BUSHING,SPRING GUIDE

$16.99

$

Usually ships in 3-6 days

0

12

Exmark 1-513296

SPRING-INDICATOR, REVERSE

$7.99

$

Usually ships in 3-6 days

0

13

Exmark 1-800338

325-13
(Superseded to 325-13)

$0.99

$

Usually ships in 3-6 days

0

14

Exmark 1-805264

3256-6
(Superseded to 3256-6)

$0.99

$

In Stock, Qty 20+

0

15

Exmark 1-213069

WASHER

$2.99

$

In Stock, only 3 left!

0

16

Exmark 1-603760

SWITCH,PUSH BUTTON

$66.99

$

In Stock, only 2 left!

0

17

Exmark 1-809001

32128-20
(Superseded to 32128-20)

Note: This hardware (4 ea.) comes with the seat track, see Rider Frame and Steering diagram and part list for additional track mounting hardware.

$1.49

$

In Stock, Qty 20+

0

18

Exmark 1-804265

3296-23
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

19

Exmark 1-542283-01

DISCONTINUED

$

$

Not available

20

Exmark 1-800326

325-5
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

21

Exmark 1-800290

323-4
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

22

Exmark 1-543241

DISCONTINUED

$

$

Not available

23

Exmark 1-800825

3212-19
(Superseded to 3212-19)

$8.49

$

Usually ships in 3-6 days

0

24

Exmark 1-800820

3212-12
(Superseded to 3212-12)

$3.49

$

In Stock, only 4 left!

0

25

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

26

Exmark 1-804263

3296-7
(Superseded to 3296-7)

$3.99

$

Usually ships in 3-6 days

0

27

Exmark 1-800015

BOLT,TAP HH

$

$

Not available

28

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

30

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 19

0

31

Exmark 1-805261

3256-25
(Superseded to 3256-25)

$0.99

$

In Stock, Qty 10

0

32

Exmark 1-543963

BUMPER-RUBBER

$22.99

$

In Stock, only 2 left!

0

33

Exmark 1-543348

DISCONTINUED

$

$

Not available

34

Exmark 1-543356-03

SPRING,RANGER SEAT

Note: (TR)

$

$

Not available

35

Exmark 1-543834

GUARD,ACTUATOR

$

$

Not available

36

Exmark 1-543401

SPACER-TRACK

Note: This hardware (4 ea.) comes with the seat track, see Rider Frame and Steering diagram and part list for additional track mounting hardware.

$5.49

$

In Stock, Qty 8

0

37

Exmark 1-804506

3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

38

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-543411

103-0291
(Superseded to 103-0291)

Note: (LH)

$97.99

$

In Stock, only 4 left!

0
