FMD60 - Exmark 60" Turf Ranger Front Mount Mower (SN: 080000 - 089999) (1993) Engine Deck Group Parts Diagram

60" Turf Ranger Front Mount Mower

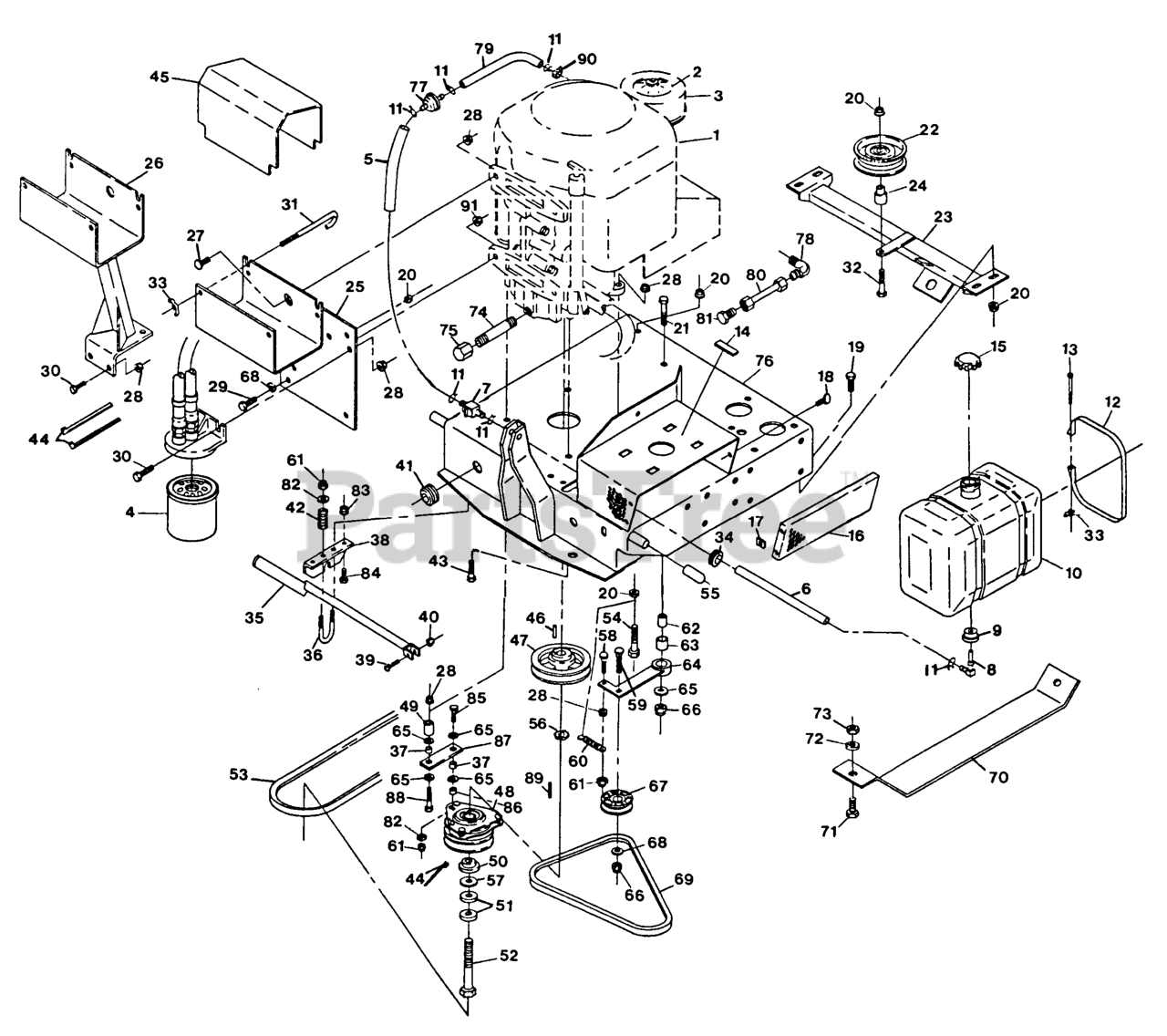

Engine Deck Group Parts Diagram

  • Title

1

Engine - 18 Hp Kohler

$

$

Not available

Engine - 20 Hp Kohler

$

$

Not available

Engine - 17 Hp Kaw.

$

$

Not available

2

Air Filter

Note: Kohler #45-083-02

$

$

Not available

Air Filter

Note: Kawasaki #11013-2098

$

$

Not available

3

Foam Precleaner,

Note: Kohler #45-083-01

$

$

Not available

Foam Precleaner,

Note: Kawasaki #11013-2097

$

$

Not available

4

Oil Filter

Note: Kohler #52-050-02

$

$

Not available

Oil Filter

Note: Kawasaki #49065-2071

$

$

Not available

5

Exmark 1-303471

LINE-FUEL

Note: (Kohler)

$8.49

$

In Stock, only 2 left!

0

Exmark 1-543649

DISCONTINUED

Note: (Kawasaki)

$

$

Not available

6

Exmark 1-603508

1-303306
(Superseded to 1-303306)

$

$

Not available

7

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

8

Exmark 1-543277

ELBOW-TANK, FUEL

$11.99

$

In Stock, Qty 5

0

9

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

10

Exmark 1-543364

DISCONTINUED

$

$

Not available

11

Exmark 1-303077

CLAMP

Note: (Kohler)

$1.49

$

In Stock, Qty 8

0

Clamp - Gas Line

Note: (Kaw.)

$

$

Not available

12

Exmark 1-303465-03

1-303465
(Superseded to 1-303465)

$36.99

$

In Stock, only 1 left!

0

13

Exmark 1-801060

DISCONTINUED (EXMARK)

$

$

Not available

14

Exmark 1-303315

PAD,PLASTIC TANK

$

$

Not available

15

Exmark 1-513508

CAP-FUEL

$27.99

$

In Stock, only 1 left!

0

16

Exmark 1-543109

1-542045-01
(Superseded to 1-542045-01)

$

$

Not available

17

Exmark 1-809024

NUT,RETNR UTYP 1/4-20

$

$

Not available

18

Exmark 1-543791

SCREW,REGTHMB,

$

$

Not available

19

Exmark 1-800290

323-4
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

20

Exmark 1-809007

3290-357
(Superseded to 3290-357)

Note: (Kohler)

$0.99

$

In Stock, Qty 20+

0

Note: (Kawasaki)

$

$

Not available

21

Exmark 1-800296

323-10
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

22

Exmark 1-543877

109-6561
(Superseded to 109-6561)

$131.99

$

Usually ships in 3-6 days

0

23

Exmark 1-542958-01

WLD,CROSSMEMBER

$

$

Not available

24

Exmark 1-543879

BUSHING,IDLER

$14.99

$

In Stock, only 1 left!

0

25

Exmark 1-542937-03

DISCONTINUED (EXMARK)

Note: (Kohler)

$

$

Not available

26

Exmark 1-542982

1-542069-03
(Superseded to 1-542069-03)

Note: (Kaw.)

$

$

Not available

27

Exmark 1-807506

3230-22
(Superseded to 3230-22)

Note: (Kohler)

$2.49

$

In Stock, only 2 left!

0

28

Exmark 1-809001

32128-20
(Superseded to 32128-20)

Note: (Kohler)

$1.49

$

In Stock, Qty 20+

0

Note: (Kaw)

$

$

Not available

29

Exmark 1-800292

323-6
(Superseded to 323-6)

Note: (Kohler)

$2.49

$

In Stock, Qty 20+

0

30

Exmark 1-800271

322-3
(Superseded to 322-3)

Note: (Kohler)

$0.99

$

In Stock, Qty 13

0

5/16-18 X 3/4 Hh Capscrew

Note: (Kawasaki)

$

$

Not available

31

Exmark 1-543882

BOLT - HOLD DOWN

$16.99

$

In Stock, only 4 left!

0

32

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

33

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

34

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

35

Exmark 1-542948-01

DISCONTINUED

$

$

Not available

36

Exmark 1-543935

U-BOLT

$18.99

$

Usually ships in 3-6 days

0

37

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.49

$

In Stock, only 2 left!

0

38

Exmark 1-543933-01

DISCONTINUED

$

$

Not available

39

Exmark 1-801056

DISCONTINUED (EXMARK)

$

$

Not available

40

Exmark 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

41

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

42

Exmark 1-303160

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

43

Exmark 1-800275

322-7
(Superseded to 322-7)

Note: (Kohler)

$1.49

$

In Stock, Qty 20+

0

Exmark 1-809018

33114-030
(Superseded to 33114-030)

Note: (Kawasaki)

$1.49

$

Usually ships in 3-6 days

0

44

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

45

Exmark 1-543891

103-3442
(Superseded to 103-3442)

$76.99

$

In Stock, only 4 left!

0

46

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

Note: (17 Kawasaki & 18 Kohler)

$5.49

$

In Stock, Qty 7

0

Exmark 1-807010

DISCONTINUED (EXMARK)

Note: (20 hp Kohler)

$

$

Not available

47

Exmark 1-543929

SHEAVE,4.25 OD A

Note: (18 Kohler & 17 Kawasaki)

$173.99

$

Usually ships in 3-6 days

0

Exmark 1-543959

DISCONTINUED (EXMARK)

Note: (20 hp Kohler)

$

$

Not available

48

Exmark 1-543860

1-551054
(Superseded to 1-551054)

Note: (Ogura) For units produced with the Warner 5215-14 electric clutch, replace said clutch with Kit #541003 which includes Ogura clutch and necessary parts to install to your unit.

$

$

Not available

49

Exmark 1-323037

DISCONTINUED

$

$

Not available

50

Exmark 1-543865

DISCONTINUED (EXMARK)

$

$

Not available

51

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

52

Exmark 1-800820

3212-12
(Superseded to 3212-12)

Note: (Kohler)

$3.49

$

In Stock, only 4 left!

0

Exmark 1-809055

33115-080
(Superseded to 33115-080)

Note: (Kawasaki)

$2.49

$

Usually ships in 3-6 days

0

53

Exmark 1-543521

BELT-DK DR FMD-60/TR

$61.99

$

Usually ships in 3-6 days

0

Exmark 1-543028

BELT,DECK DRIVE

$78.99

$

Usually ships in 3-6 days

0

54

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

55

Exmark 1-303021

GRIP-LEVER, DRIVE

$1.49

$

In Stock, Qty 17

0

56

Exmark 1-543962

DISCONTINUED (EXMARK)

Note: (20 hp Kohler)

$

$

Not available

57

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

58

Exmark 1-807518

3230-3
(Superseded to 3230-3)

$1.49

$

In Stock, Qty 20+

0

59

Exmark 1-807517

3231-29
(Superseded to 3231-29)

$7.49

$

Usually ships in 3-6 days

0

60

Exmark 1-513170

SPRING,EXTENSION

$24.99

$

In Stock, only 1 left!

0

61

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

62

Exmark 1-543274

BUSHING,STEEL

$10.99

$

In Stock, only 1 left!

0

63

Exmark 1-543502

BUSHING,IDLER ARM

$16.99

$

Usually ships in 3-6 days

0

64

Exmark 1-542270-01

WLD,IDLER ARM HYDRO

$86.99

$

Usually ships in 3-6 days

0

65

Exmark 1-213069

WASHER

$2.99

$

In Stock, only 2 left!

0

66

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

67

Exmark 1-543008

IDLER,PULLEY

$34.99

$

In Stock, only 2 left!

0

68

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

69

Exmark 1-543548

BELT,A TRANS DRIVE
(Superseded to 1-543548-SL)

$28.99

$

In Stock, only 1 left!

0

70

Exmark 1-543258-01

PLATE-SKID

$

$

Not available

71

Exmark 1-800326

325-5
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

72

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

73

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 19

0

74

Exmark 1-543684

DISCONTINUED (EXMARK)

Note: (Kohler)

$

$

Not available

75

Exmark 1-543685

DISCONTINUED (EXMARK)

Note: (Kohler)

$

$

Not available

76

Exmark 1-542922-01

DISCONTINUED (EXMARK)

$

$

Not available

77

Exmark 1-303197

109585
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 13

0

78

Exmark 1-553000

DISCONTINUED (EXMARK)

Note: (Kawasaki)

$

$

Not available

79

Exmark 1-543456

HOSE-FUEL

$

$

Not available

Exmark 1-303022

HOSE-FUEL

Note: (Kawasaki)

$5.49

$

In Stock, only 3 left!

0

80

Exmark 1-552002

DISCONTINUED (EXMARK)

Note: (Kaw.)

$

$

Not available

81

Exmark 1-553001

DISCONTINUED (EXMARK)

Note: (Kawasaki)

$

$

Not available

82

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

83

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

84

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

85

Exmark 1-800275

322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

86

Exmark 1-323093

DISCONTINUED

$

$

Not available

87

Exmark 1-543004

1-541047
(Superseded to 1-541047)

$

$

Not available

88

Exmark 1-800284

322-19
(Superseded to 322-19)

Note: (Kohler)

$6.49

$

In Stock, only 1 left!

0

Exmark 1-809061

33114-080
(Superseded to 33114-080)

Note: (Kawasaki)

$6.49

$

Usually ships in 3-6 days

0

89

Exmark 1-807259

KEY

Note: (20HP Kohler)

$2.99

$

In Stock, only 2 left!

0

90

Exmark 1-303308

CLAMP-HOSE

Note: (Kawasaki)

$5.49

$

Usually ships in 3-6 days

0

91

Exmark 1-804752

3218-3
(Superseded to 3218-3)

$0.99

$

In Stock, Qty 10

0
