FMD60 - Exmark 60" Turf Ranger Front Mount Mower (SN: 060000 - 069999) (1991) Transaxle Main Body Parts Parts Diagram

60" Turf Ranger Front Mount Mower

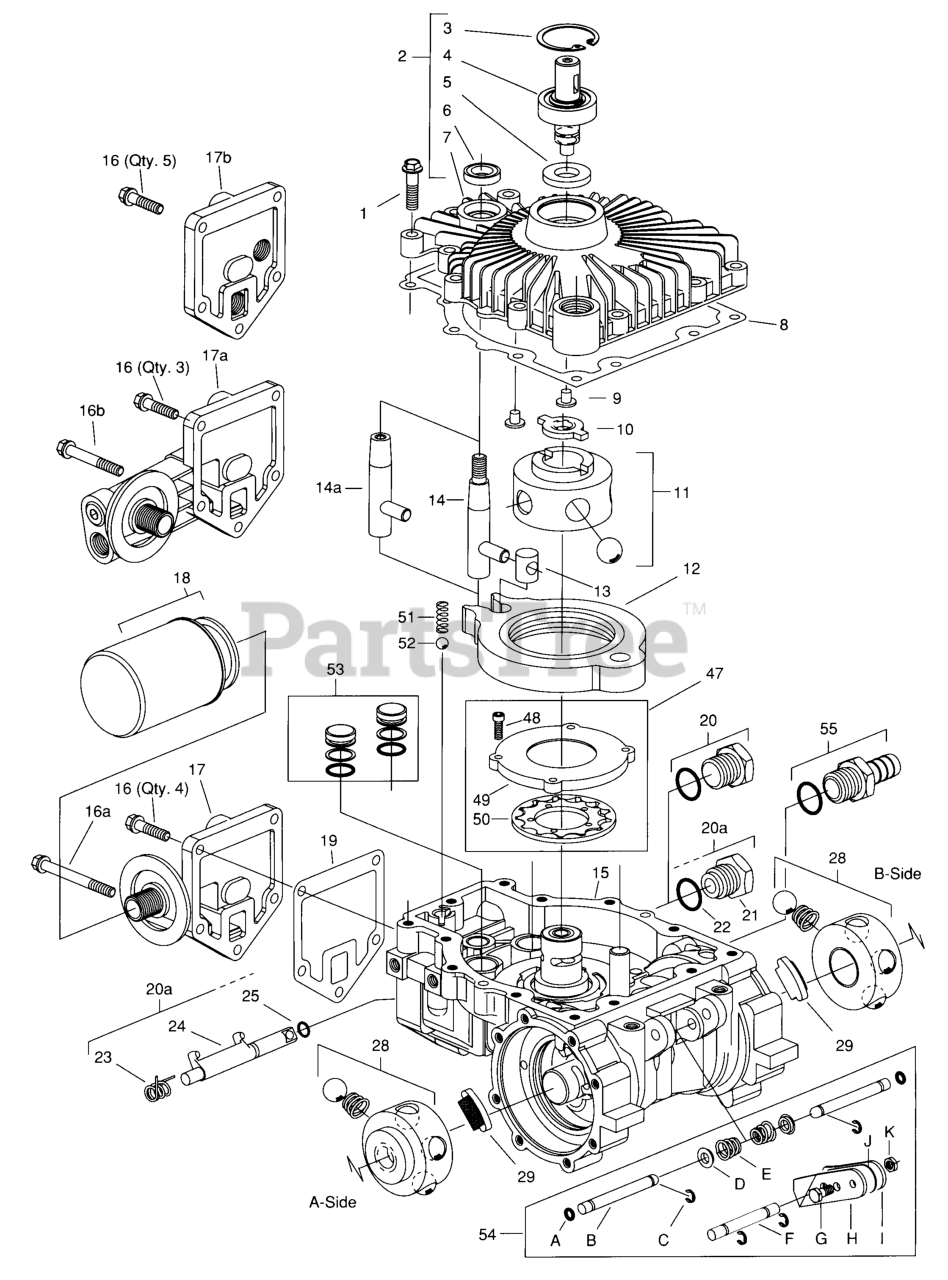

Transaxle Main Body Parts Parts Diagram

  • Title

1

Exmark 104436-100

Screw, 1/4-20 Self Tap

$

$

Currently unavailable

2

Exmark 1-106071

103-5341
(Superseded to 103-5341)

$

$

Not available

3

Exmark 101680-156

Internal Retaining Ring

$16.99

$

Usually ships in 3-6 days

0

4

Exmark 1-106073

DISCONTINUED

$

$

Not available

5

Exmark 93955

SEAL,INPUT SHAFT

$33.99

$

In Stock, only 2 left!

0

6

Exmark 93895

SEAL,CONTROL SHAFT

$26.99

$

In Stock, only 1 left!

0

7

Exmark 1-106070

$

$

Currently unavailable

8

Exmark 1-105327

COVER GASKET

$18.99

$

Usually ships in 3-6 days

0

9

Exmark 1-101597

DISCONTINUED

$

$

Not available

10

Exmark 1-104107

DISCONTINUED

$

$

Not available

11

Exmark 1-104414

DISCONTINUED

$

$

Not available

12

Exmark 1-104131

$

$

Currently unavailable

13

Exmark 1-103621

Insert

$

$

Currently unavailable

14

Exmark 1-103611

Control Shaft, S/A

$

$

Currently unavailable

14A

Exmark 1-104935

$

$

Currently unavailable

15

Note: See Chart on Page 5 - Housing (S/A)

$

$

Not available

16

Exmark 103757-088

Screw, 1/4-20 Hex Flange

Note: A/R - as Required (S/A) - Sub Assembly

$

$

Currently unavailable

16A

Exmark 103757-375

$

$

Currently unavailable

16B

Exmark 103757-250

Screw, 1/4-20 Hex Flange

$

$

Currently unavailable

17

Exmark 1-104386

$

$

Currently unavailable

17A

Exmark 1-104382

FILTER BASE S/A

$

$

Not available

Exmark 1-104384

Filter Base, S/A W/Auxiliary Ports (2)

$

$

Currently unavailable

17B

Exmark 1-104531

$

$

Currently unavailable

18

Exmark 1-103144

Filter, (W/Seal)

$

$

Currently unavailable

19

Exmark 1-104392

DISCONTINUED

$

$

Not available

20

Exmark 1-106008

$

$

Currently unavailable

Exmark 8785-010

Dump Valve Nut, O-Ring

$5.49

$

In Stock, only 2 left!

0

20A

$

$

Not available

21

Exmark 1-104664

DISCONTINUED

$

$

Not available

22

Exmark 8785-010

Dump Valve Nut, O-Ring

$5.49

$

In Stock, only 2 left!

0

23

Exmark 1-104684

DUMP VALVE SPRING

$

$

Not available

24

Exmark 1-105660

DISCONTINUED

$

$

Not available

25

Exmark 8761-013

$

$

Not available

26

Exmark 103757-225

$

$

Currently unavailable

27

Exmark 1-106129

DISCONTINUED

$

$

Not available

28

Exmark 1-104551

MOTOR ROTOR BALL

$

$

Not available

29

Exmark 1-106054

103-0785
(Superseded to 103-0785)

$151.99

$

Usually ships in 3-6 days

0

30

Exmark 1-106414

DISCONTINUED

$

$

Not available

31

Exmark 1-106104

BACKUP PLATE

$

$

Not available

32

Exmark 1-104338

DISCONTINUED

$

$

Not available

33

Exmark 1-106027

RING GEAR 57T

$120.99

$

Usually ships in 3-6 days

0

34

Exmark 1-106167

103-5917
(Superseded to 103-5917)

$113.99

$

Usually ships in 3-6 days

0

35

Exmark 1-106174

PRIMARY CARRIER 15T

$302.99

$

Usually ships in 3-6 days

0

36

Exmark 1-104812

1-104984
(Superseded to 1-104984)

$

$

Not available

Exmark 1-104984

DISCONTINUED

$

$

Not available

37

Exmark 1-106169

103-3301
(Superseded to 103-3301)

$

$

Not available

Exmark 1-106204

103-3301
(Superseded to 103-3301)

$

$

Not available

38

Exmark 1-106137

SECONDARY CARRIER SA

$

$

Not available

39

Exmark 106178-000

Tapered Axle Kit, LH B
(Superseded to 1-551014)

$1258.99

$

Usually ships in 3-6 days

0

39A

Exmark 106178-000

Tapered Axle Kit, LH B
(Superseded to 1-551014)

$1258.99

$

Usually ships in 3-6 days

0

Exmark 1-106190

Note: Magnet (S/A) Not Shown (Removal Not Recommended)

$

$

Currently unavailable

40

Exmark 1-106162

1-106620
(Superseded to 1-106620)

$834.99

$

Usually ships in 3-6 days

0

41

Exmark 103983-098

External Retaining Ring

$7.49

$

Usually ships in 3-6 days

0

42

Exmark 1-103966

THRUST WASHER

$42.99

$

Usually ships in 3-6 days

0

43

Exmark 101680-206

Internal Retaining Ring

$42.99

$

Usually ships in 3-6 days

0

44

Exmark 1-104928

DISCONTINUED

$

$

Not available

45

Exmark 1-103960

DISCONTINUED

$

$

Not available

46

Exmark 106177-000

$

$

Not available

Exmark 106177-000

$

$

Not available

47

Note: See Chart on Page 5 - Housing (S/A)

$

$

Not available

48

Exmark 101676-088

$

$

Currently unavailable

49

Exmark 1-104467

PLATE,PUMP CLASSII (EATON

$94.99

$

Usually ships in 3-6 days

0

50

Exmark 1-104466

GEROTOR S/A CHRG PMP

$

$

Not available

49

Exmark 1-104701

$

$

Currently unavailable

50

Exmark 1-104701

$

$

Currently unavailable

51

Exmark 1-104421

DISCONTINUED

$

$

Not available

52

Exmark 95881-038

$

$

Not available

53

Note: See Chart on Page 5 - Housing (S/A)

$

$

Not available

Exmark 1-104962

$

$

Currently unavailable

Exmark 1-105814

Piston, Dampening, S/A

Note: Piston, Dampening (S/A) - Wide Band Neutral - Not Shown (has orifice hole through center)

$

$

Currently unavailable

54

Brake Lever Parts

$

$

Not available

A

Exmark 1-106450

QUAD SEAL

$8.99

$

Usually ships in 3-6 days

0

B

Exmark 1-106079

DISCONTINUED

$

$

Not available

C

Exmark 106437-000

E-Ring

$5.99

$

Usually ships in 3-6 days

0

D

Exmark 1-106784

DISCONTINUED

$

$

Not available

E

Exmark 1-106078

DISCONTINUED

$

$

Not available

F

Exmark 1-106261

DISCONTINUED

$

$

Not available

G

Exmark 16032-406P

$

$

Currently unavailable

H

Exmark 106128-001

$

$

Not available

I

Exmark 106128-002

$

$

Not available

J

Exmark 106144-XXX

Note: A/R - as Required (S/A) - Sub Assembly

$

$

Currently unavailable

K

Exmark 16188-4

$

$

Currently unavailable

55

Exmark 1-106285

$

$

Currently unavailable

Exmark 8785-010

Dump Valve Nut, O-Ring

$5.49

$

In Stock, only 2 left!

0
