FMD60 - Exmark 60" Turf Ranger Front Mount Mower (SN: 060000 - 069999) (1991) Axle Housing - Horizontal Mount Parts Diagram

60" Turf Ranger Front Mount Mower

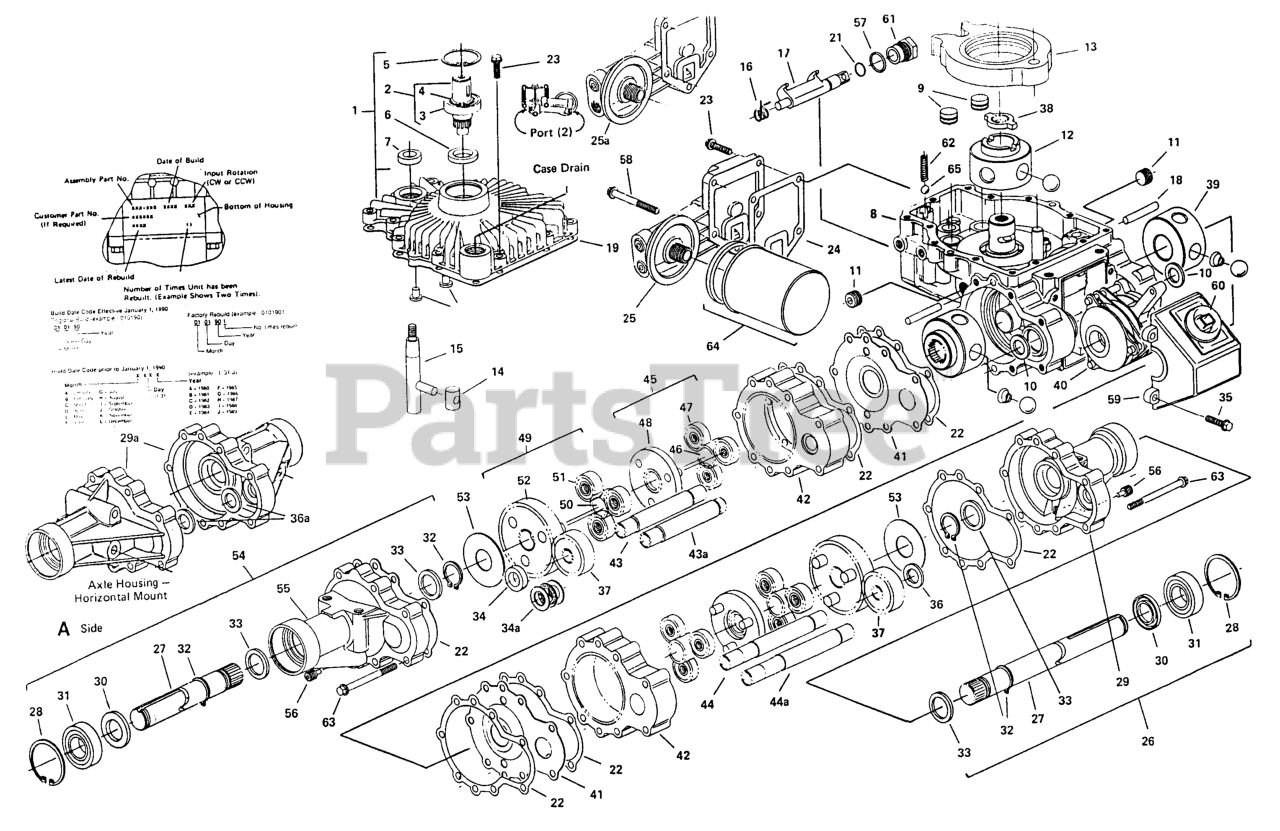

Axle Housing - Horizontal Mount Parts Diagram

  • Title

1

Exmark 1-106071

103-5341
(Superseded to 103-5341)

$

$

Not available

2

Exmark 1-106073

DISCONTINUED

$

$

Not available

3

Exmark NSS

Bearing, Input Shaft

$

$

Currently unavailable

4

Exmark NSS

Ring, Retaining, External

$

$

Currently unavailable

5

Exmark 101680-156

Internal Retaining Ring

$16.99

$

Usually ships in 3-6 days

0

6

Exmark 93955

SEAL,INPUT SHAFT

$33.99

$

In Stock, only 2 left!

0

7

Exmark 93895

SEAL,CONTROL SHAFT

$26.99

$

In Stock, only 1 left!

0

8

Exmark 1-104431

Housing, S/A Cw

$

$

Currently unavailable

Exmark 1-104743

Housing, S/A Ccw

$

$

Currently unavailable

9

Exmark 1-104294

Piston, Dampening, S/A

$

$

Currently unavailable

Exmark 1-105814

Piston, Dampening, S/A

$

$

Currently unavailable

10

Exmark 1-104020

DISCONTINUED

$

$

Not available

11

Exmark 95653-038

$

$

Not available

12

Exmark 1-104414

DISCONTINUED

$

$

Not available

13

Exmark 1-105813

Cam Ring, S/A

$

$

Currently unavailable

14

Exmark 1-103621

Insert

$

$

Currently unavailable

15

Exmark 1-103611

Control Shaft, S/A

$

$

Currently unavailable

16

Exmark 1-104684

DUMP VALVE SPRING

$

$

Not available

17

Exmark 1-105660

DISCONTINUED

$

$

Not available

18

Exmark 1-104537

Dowel

$

$

Currently unavailable

19

Exmark 1-105327

COVER GASKET

$18.99

$

Usually ships in 3-6 days

0

20

Exmark 1-101597

DISCONTINUED

$

$

Not available

21

Exmark 8761-013

$

$

Not available

22

Exmark 1-104442

GASKET

$11.99

$

Usually ships in 3-6 days

0

23

Exmark 103757-088

Screw, 1/4-20 Hex Flange

$

$

Currently unavailable

24

Exmark 1-104392

DISCONTINUED

$

$

Not available

25

Exmark 1-104382

FILTER BASE S/A

$

$

Not available

25A

Exmark 1-104384

Filter Base, S/A W/Auxiliary Ports (2)

$

$

Currently unavailable

26

Axle Housing, S/A-B

$

$

Not available

27

Shaft, Axle

$

$

Not available

28

Exmark 101680-206

Internal Retaining Ring

$42.99

$

Usually ships in 3-6 days

0

29

Exmark 1-105745

DISCONTINUED (EXMARK)

$

$

Not available

29A

Exmark 1-105747

Housing, Axle B

$

$

Currently unavailable

30

Exmark 1-103960

DISCONTINUED

$

$

Not available

31

Exmark 1-104928

DISCONTINUED

$

$

Not available

32

Exmark 103983-098

External Retaining Ring

$7.49

$

Usually ships in 3-6 days

0

33

Exmark 1-103966

THRUST WASHER

$42.99

$

Usually ships in 3-6 days

0

34

Spacer (Thick-Pb)

$

$

Not available

34A

Exmark 1-103753

Washer, Thrust (Dl/Pb)

$

$

Currently unavailable

34A

Exmark 1-103783

Bearing, Thrust (Dl/Pb)

$

$

Currently unavailable

35

Exmark 104436-100

Screw, 1/4-20 Self Tap

$

$

Currently unavailable

36

Spacer (Thin-Pb Or Dl/Pb)

$

$

Not available

36A

Spacer (Thick) Used With Vertical Mount Housing

$

$

Not available

37

Exmark 1-103933

DISCONTINUED

$

$

Not available

38

Exmark 1-104107

DISCONTINUED

$

$

Not available

39

Exmark 1-104551

MOTOR ROTOR BALL

$

$

Not available

40

Exmark 1-104084

1-104733
(Superseded to 1-104733)

$1264.99

$

Usually ships in 3-6 days

0

Exmark 1-104085

$

$

Currently unavailable

41

Exmark 1-104337

WEAR PLATE

$89.99

$

Usually ships in 3-6 days

0

42

Exmark 1-104340

A&B RING GEAR 5/A57T

$

$

Not available

43

Exmark 1-104426

DISCONTINUED (EXMARK)

$

$

Not available

43A

Exmark 1-104428

Brake Shaft-A (Dl/Pb)

$

$

Currently unavailable

44

Exmark 1-104425

BRAKE SHAFT B

$342.99

$

Usually ships in 3-6 days

0

44A

Exmark 1-104427

Brake Shaft-B (Dl/Pb)

$

$

Currently unavailable

45

Exmark 1-990408

DISCONTINUED

$

$

Not available

46

Exmark NSS

Sun Gear, First, 15t

Note: Not Sold Separately

$

$

Currently unavailable

47

Exmark NSS

Plnt Gear, First, A & B S/A, 21t

$

$

Currently unavailable

48

Exmark NSS

Primary Carrier, A & B S A, 15t

$

$

Currently unavailable

49

Exmark 1-990409

1-990474
(Superseded to 1-990474)

$

$

Not available

50

Exmark NSS

Sun Gear, Second, 15t

Note: Not Sold Separately

$

$

Currently unavailable

51

Exmark NSS

Pint Gear, Second, A & B S A, 21t

$

$

Currently unavailable

52

Exmark NSS

Secondary Carrier, A & B S

$

$

Currently unavailable

53

Washer, Thrust

$

$

Not available

54

Axle Housing, S/A-A

Note: Includes Ref. No. 27 - 33

$

$

Not available

55

Exmark 1-105748

1-542742
(Superseded to 1-542742)

$

$

Not available

56

Exmark 1-103772

MAGNETIC PLUG

$33.99

$

Usually ships in 3-6 days

0

57

Exmark 8785-010

Dump Valve Nut, O-Ring

$5.49

$

In Stock, only 2 left!

0

58

Exmark 103757-250

Screw, 1/4-20 Hex Flange

$

$

Currently unavailable

59

Exmark 1-104387

PARKING BRAKE COVER

$84.99

$

Usually ships in 3-6 days

0

60

Exmark 1-104391

DISCONTINUED

$

$

Not available

61

Exmark 1-104664

DISCONTINUED

$

$

Not available

62

Exmark 1-104421

DISCONTINUED

$

$

Not available

63

Exmark 103757-275

Screw, 1/4-20 Hex Flange

$

$

Currently unavailable

64

Exmark 1-103144

Filter, (W/Seal)

$

$

Currently unavailable

65

Exmark 95881-038

$

$

Not available

Exmark 1-990474

DISCONTINUED

Note: (Two Kits Required Per Unit)

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

Exmark 1-105614

Adapter, Reservoir, 5/8 I.D. Tube 45ø

$

$

Currently unavailable

Exmark 1-105612

Adapter, Reservoir, 5/8 I.D. Tube 90ø

$

$

Currently unavailable
