FMD60 - Exmark 60" Turf Ranger Front Mount Mower (SN: 000001 - 059999) (1990) Transaxle & Hydraulics Parts Diagram

60" Turf Ranger Front Mount Mower

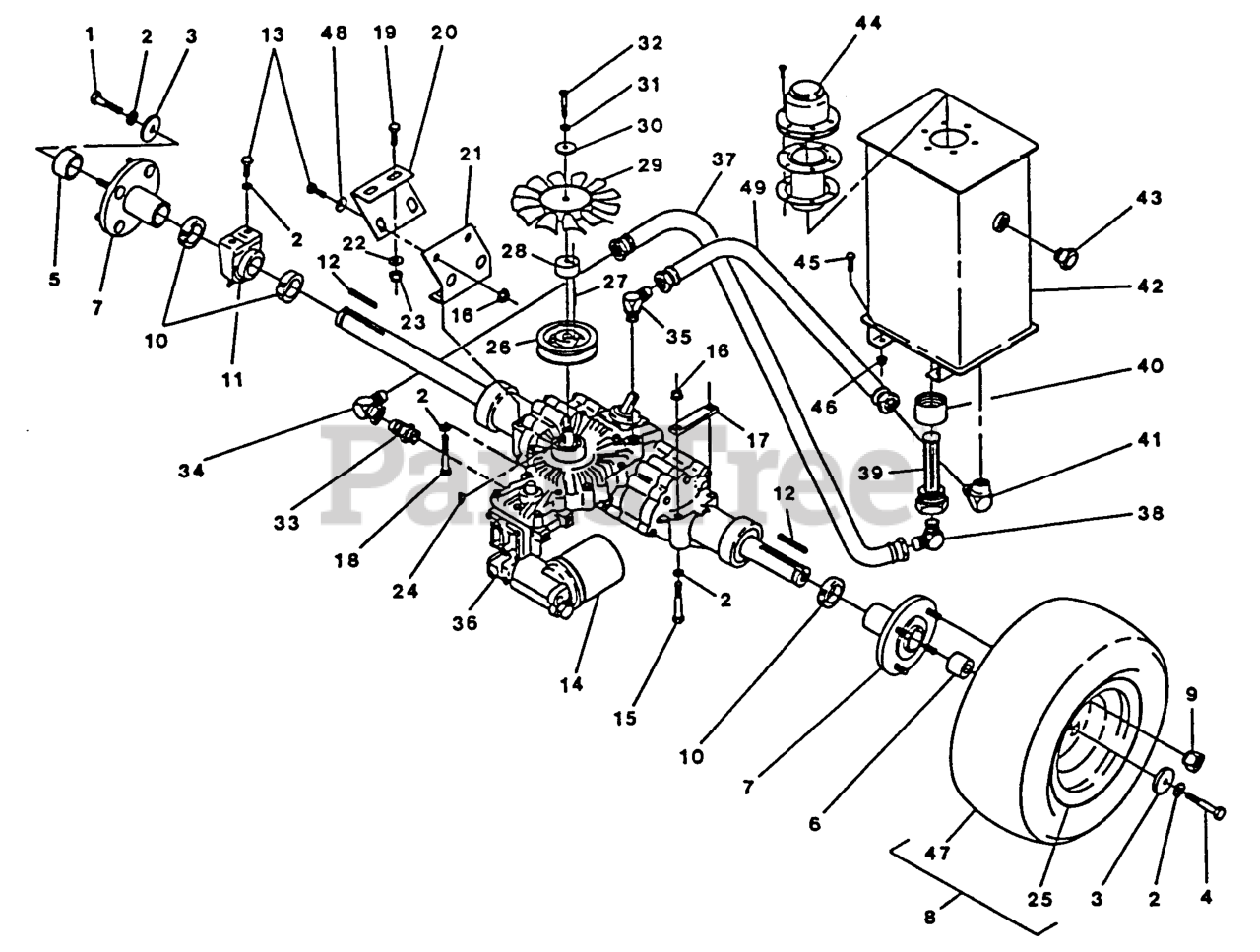

Transaxle & Hydraulics Parts Diagram

  • Title

1

Exmark 1-800294

323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

2

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 17

0

3

Exmark 1-543216

DISCONTINUED

$

$

Not available

4

Exmark 1-800296

323-10
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-543644

DISCONTINUED (EXMARK)

$

$

Not available

6

Exmark 1-543800

1-543204
(Superseded to 1-543204)

$

$

Not available

7

Exmark 1-543358

1-542040
(Superseded to 1-542040)

$

$

Not available

Exmark 1-543807

BOLT - HUB

$

$

Not available

8

Exmark 1-543396

WHEEL AND TIRE ASM
(Superseded to 144-3664)

$190.99

$

Usually ships in 3-6 days

0

9

Exmark 1-513011

242-50
(Superseded to 242-50)

$1.99

$

In Stock, Qty 20+

0

10

Exmark 1-373021

DISCONTINUED

$

$

Not available

11

Exmark 1-543485

BEARING,PILLOW BLOCK

$128.99

$

Usually ships in 3-6 days

0

12

Exmark 1-807261

KEY,MACH HRD

$

$

Not available

13

Exmark 1-800290

323-4
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

14

Exmark 1-543811

109-4180
(Superseded to 109-4180)

$47.99

$

In Stock, Qty 16

0

15

Exmark 1-800300

323-14
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

16

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

17

Exmark 1-543097

DISCONTINUED

$

$

Not available

18

Exmark 1-800297

323-11
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

19

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

20

Exmark 1-543602

1-543996-01
(Superseded to 1-543996-01)

$

$

Not available

21

Exmark 1-542612

1-542477
(Superseded to 1-542477)

$85.99

$

Usually ships in 3-6 days

0

22

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

23

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

24

Exmark 1-807006

3257-32
(Superseded to 3257-32)

$2.99

$

In Stock, Qty 11

0

25

Exmark 1-513042

WHEEL

$

$

Not available

26

Exmark 1-543399

1-551078
(Superseded to 1-551078)

$678.99

$

Usually ships in 3-6 days

0

27

Exmark 1-806328

DISCONTINUED

$0.99

$

In Stock, only 1 left!

0

28

Exmark 1-543317

SPACER,FAN

$15.99

$

Usually ships in 3-6 days

0

29

Exmark 1-543359

FAN,7"OD/10BLADE

$30.99

$

Usually ships in 3-6 days

0

30

Exmark 1-503033

WASHER-RETAINER, PULLEY

$5.49

$

Usually ships in 3-6 days

0

31

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

32

Exmark 1-800256

321-9
(Superseded to 321-9)

$4.99

$

Usually ships in 3-6 days

0

33

Exmark 1-543539

DISCONTINUED (EXMARK)

$

$

Not available

34

Exmark 1-543538

DISCONTINUED (EXMARK)

$

$

Not available

35

Exmark 1-543540

DISCONTINUED (EXMARK)

$

$

Not available

36

Exmark 1-543360

1-541061
(Superseded to 1-541061)

$

$

Not available

37

Exmark 1-542702

DISCONTINUED (EXMARK)

$

$

Not available

38

Exmark 1-543524

DISCONTINUED (EXMARK)

$

$

Not available

39

Exmark 1-543542

DISCONTINUED

$

$

Not available

40

Exmark 1-543527

COUPLING,1 1/4 NPT

$19.99

$

Usually ships in 3-6 days

0

41

Exmark 1-543683

FEMALE 90 DEG ELBOW

$57.99

$

Usually ships in 3-6 days

0

42

Exmark 1-543338-03

DISCONTINUED (EXMARK)

$

$

Not available

43

Exmark 1-543672

SIGHT-CHECK

$112.99

$

Usually ships in 3-6 days

0

44

Exmark 1-543541

BREATHER,FILLR & CAP

$

$

Not available

45

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

46

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-543680

99-4506
(Superseded to 99-4506)

$

$

Not available

48

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

49

Exmark 1-542822

DISCONTINUED (EXMARK)

$

$

Not available
