FMD60 - Exmark 60" Turf Ranger Front Mount Mower (SN: 000001 - 059999) (1990) Mower Deck & Support Parts Diagram

60" Turf Ranger Front Mount Mower

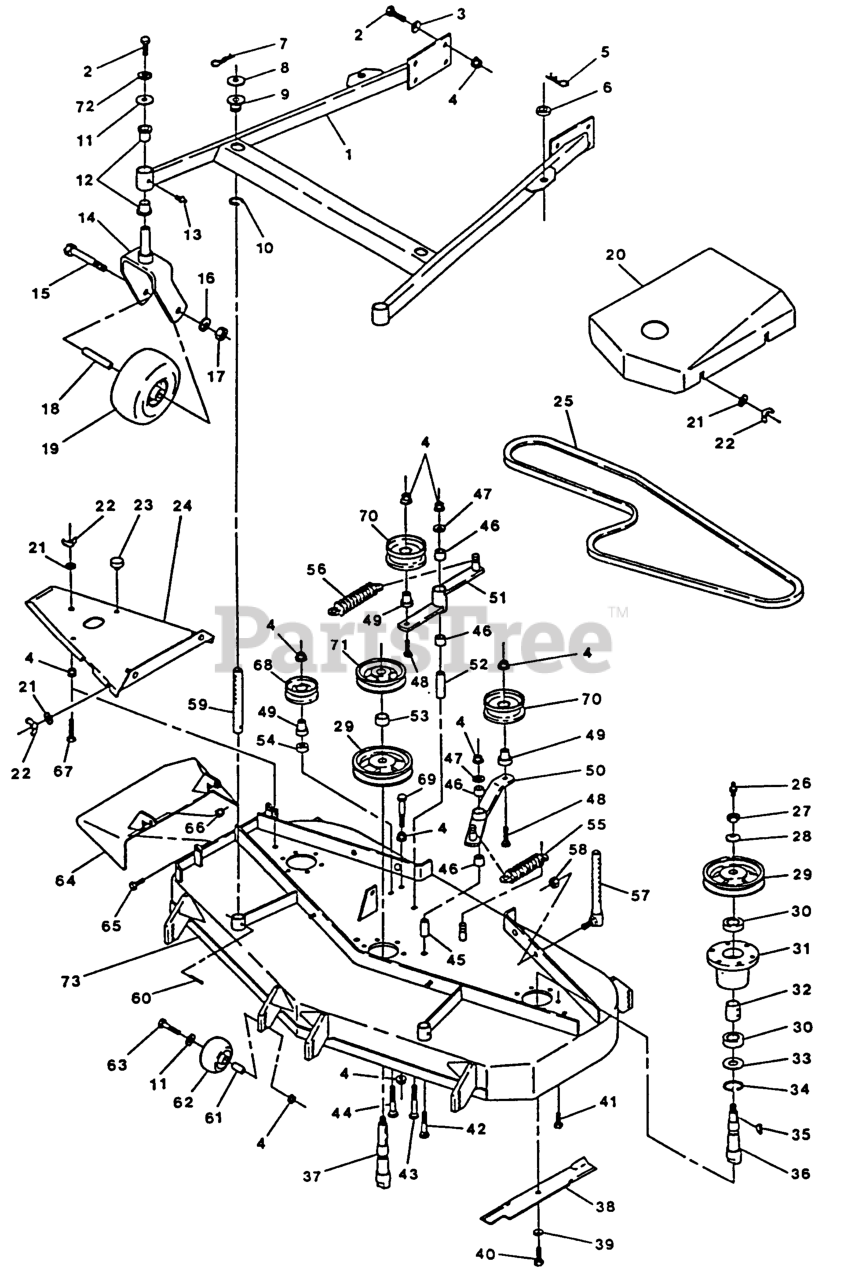

Mower Deck & Support Parts Diagram

  • Title

1

Exmark 1-542592

DISCONTINUED (EXMARK)

$

$

Not available

2

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

3

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

4

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-806006

PIN,HAIR COTTER

$1.49

$

In Stock, Qty 5

0

6

Exmark 1-303164

1-323539
(Superseded to 1-323539)

$2.49

$

In Stock, Qty 20+

0

7

Exmark 1-806007

1-806009
(Superseded to 1-806009)

$2.99

$

In Stock, Qty 20+

0

8

Exmark 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

9

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 20+

0

10

Exmark 1-808507

32120-33
(Superseded to 32120-33)

$7.49

$

In Stock, Qty 20+

0

11

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-303044

1-303514
(Superseded to 1-303514)

$12.99

$

In Stock, Qty 20+

0

13

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.99

$

In Stock, Qty 20+

0

14

Exmark 1-602233

DISCONTINUED (EXMARK)

$

$

Not available

15

Exmark 1-800837

DISCONTINUED (EXMARK)

$

$

Not available

16

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 20+

0

18

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 20+

0

19

Exmark 1-513648

103-2171
(Superseded to 103-2171)

$129.99

$

In Stock, only 4 left!

0

20

Exmark 1-543584

1-544849
(Superseded to 1-544849)

$

$

Not available

21

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

22

Exmark 1-543678

NUT-WING

$12.99

$

In Stock, Qty 5

0

23

Exmark 1-513291

DISCONTINUED

$

$

Not available

24

Exmark 1-542588-01

WLD,DECK COVER

$232.99

$

Usually ships in 3-6 days

0

25

Exmark 1-603045

BELT-DRIVE, BLADE
(Superseded to 1-603045-SL)

$90.99

$

Usually ships in 3-6 days

0

26

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 20+

0

27

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$3.99

$

In Stock, Qty 20+

0

28

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, Qty 9

0

29

Exmark 1-513207

SHEAVE,BLADE DRIVE

$

$

Not available

30

Exmark 1-303057

1-303543
(Superseded to 1-303543)

$43.99

$

In Stock, only 2 left!

0

31

Exmark 1-513186

1-414315
(Superseded to 1-414315)

$225.99

$

In Stock, only 1 left!

0

32

Exmark 1-513188

SPACER,BEARING

$23.99

$

In Stock, only 1 left!

0

33

Exmark 1-513193

SEAL,MECHANICAL DUST

$8.49

$

In Stock, Qty 20+

0

34

Exmark 1-808506

RING,SNAP WLDS N5000-244

$7.49

$

In Stock, Qty 7

0

35

Exmark 1-807006

3257-32
(Superseded to 3257-32)

$2.99

$

In Stock, Qty 20+

0

36

Exmark 1-603031

SPINDLE-OUTER BLADE

$170.99

$

In Stock, only 2 left!

0

37

Exmark 1-603022

SPINDLE-CENTER BLADE

$184.99

$

In Stock, only 1 left!

0

38

Exmark 1-603283

103-3233-S
(Superseded to 103-3233-S)

$37.99

$

In Stock, Qty 16

0

39

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

40

Exmark 1-800531

3213-1
(Superseded to 3213-1)

$2.49

$

In Stock, Qty 11

0

41

Exmark 1-809027

9267154
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

42

Exmark 1-807511

3231-6
(Superseded to 3231-6)

$2.99

$

In Stock, Qty 19

0

43

Exmark 1-807519

DISCONTINUED (EXMARK)

$

$

Not available

44

Exmark 1-807516

DISCONTINUED (EXMARK)

$

$

Not available

45

Exmark 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

46

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

47

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

48

Exmark 1-807517

3231-29
(Superseded to 3231-29)

$7.99

$

In Stock, only 2 left!

0

49

Exmark 1-403057

1-603496
(Superseded to 1-603496)

$7.49

$

In Stock, Qty 20+

0

50

Exmark 1-602408

103-0792
(Superseded to 103-0792)

$240.99

$

Usually ships in 3-6 days

0

51

Exmark 1-602406

1-602604
(Superseded to 1-602604)

$149.99

$

Usually ships in 3-6 days

0

52

Exmark 1-603384

BUSHING-PIVOT, IDLER

$13.99

$

In Stock, Qty 20+

0

53

Exmark 1-603023

1-603504
(Superseded to 1-603504)

$19.99

$

Usually ships in 3-6 days

0

54

Exmark 1-603050

SPACER

$7.49

$

In Stock, only 2 left!

0

55

Exmark 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, Qty 9

0

56

Exmark 1-603413

SPRING-EXTENSION

$24.99

$

In Stock, only 4 left!

0

57

Exmark 1-513528

1-411532
(Superseded to 1-411532)

$154.99

$

In Stock, only 3 left!

0

58

Exmark 1-803031

DISCONTINUED (EXMARK)

$

$

Not available

59

Exmark 1-603001

ROD,DECK SUPPORT

$50.99

$

In Stock, only 3 left!

0

60

Exmark 1-806331

PIN,ROLL

$

$

Not available

61

Exmark 1-603321

1-603602
(Superseded to 1-603602)

$24.99

$

In Stock, Qty 20+

0

62

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

63

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

64

Exmark 1-542606-01

109-2758-01
(Superseded to 109-2758-01)

$206.99

$

Usually ships in 3-6 days

0

65

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

66

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

67

Exmark 1-800031

DISCONTINUED

$

$

Not available

68

Exmark 1-513304

103-0789
(Superseded to 103-0789)

$149.99

$

In Stock, only 1 left!

0

69

Exmark 1-800296

323-10
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

70

Exmark 1-403009

1-602501
(Superseded to 1-602501)

$144.99

$

Usually ships in 3-6 days

0

71

Exmark 1-603410

DISCONTINUED

$

$

Not available

72

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 15

0

73

Exmark 1-602405

1-612149
(Superseded to 1-612149)

$

$

Not available
