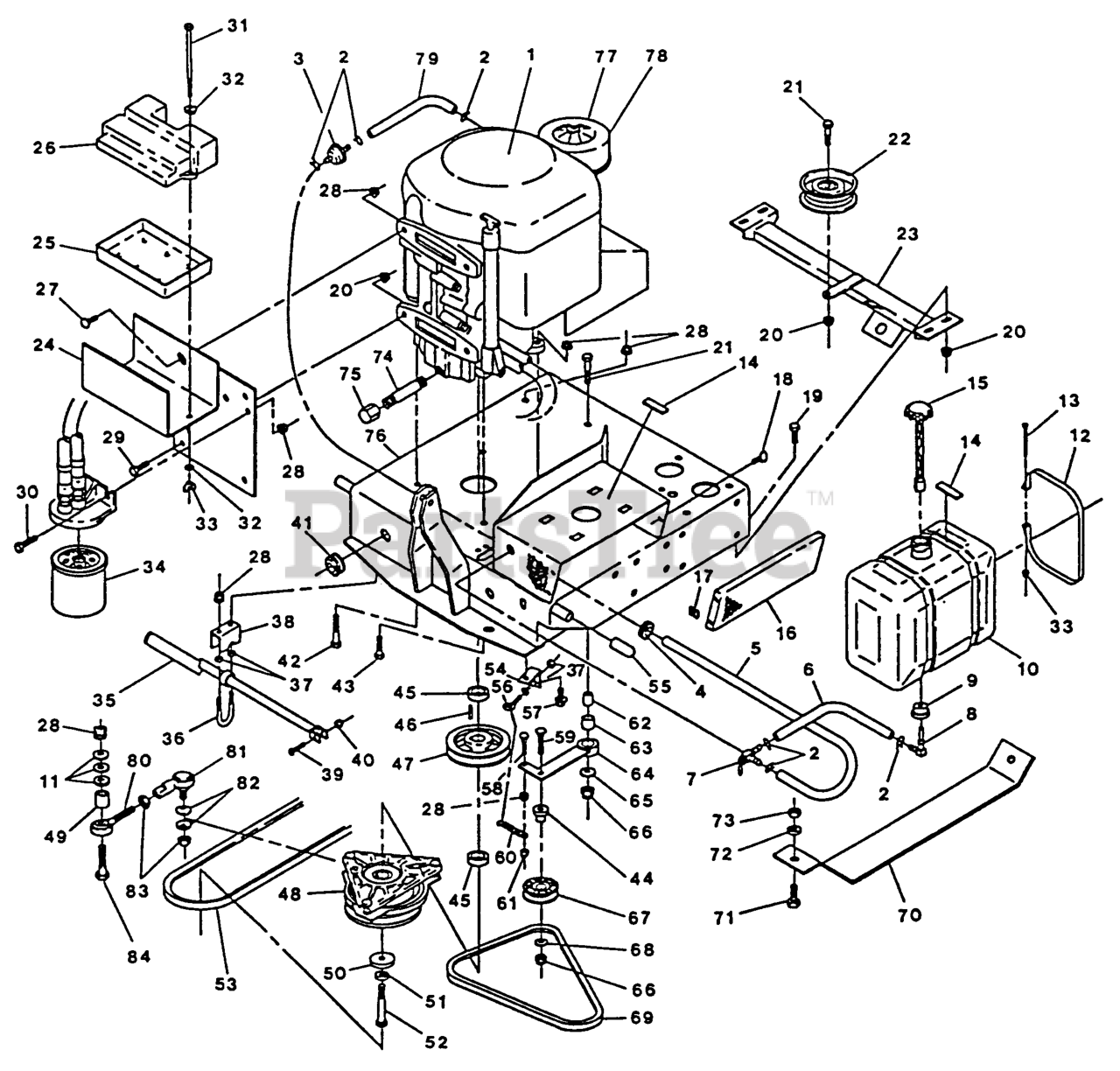

FMD60 - Exmark 60" Turf Ranger Front Mount Mower (SN: 000001 - 059999) (1990) Engine Deck Group Parts Diagram

60" Turf Ranger Front Mount Mower

Engine Deck Group Parts Diagram

  • Title

1

Engine, 18 Hp

$

$

Not available

2

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

3

Exmark 1-303197

109585
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

4

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

5

Exmark 1-543526

109-0302
(Superseded to 109-0302)

$12.99

$

In Stock, Qty 5

0

6

Exmark 1-543649

DISCONTINUED

$

$

Not available

7

Exmark 1-543278

DISCONTINUED

$

$

Not available

8

Exmark 1-543277

ELBOW-TANK, FUEL

$12.99

$

In Stock, Qty 6

0

9

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

10

Exmark 1-543364

DISCONTINUED

$

$

Not available

11

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

12

Exmark 1-543367

1-303465
(Superseded to 1-303465)

$41.99

$

In Stock, only 1 left!

0

13

Exmark 1-801060

DISCONTINUED (EXMARK)

$

$

Not available

14

Exmark 1-303315

PAD,PLASTIC TANK

$

$

Not available

15

Exmark 1-543365

1-513508
(Superseded to 1-513508)

$27.99

$

In Stock, only 1 left!

0

16

Exmark 1-543109

1-542045-01
(Superseded to 1-542045-01)

$

$

Not available

17

Exmark 1-809024

NUT,RETNR UTYP 1/4-20

$

$

Not available

18

Exmark 1-543791

SCREW,REGTHMB,

$

$

Not available

19

Exmark 1-800290

323-4
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

20

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

21

Exmark 1-800296

323-10
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

22

Exmark 1-544371

DISCONTINUED (EXMARK)

$

$

Not available

23

Exmark 1-542220

1-542958-01
(Superseded to 1-542958-01)

$

$

Not available

24

Exmark 1-542174-03

DISCONTINUED (EXMARK)

$

$

Not available

25

Exmark 1-543212

DISCONTINUED (EXMARK)

$

$

Not available

26

Exmark 1-543218

DISCONTINUED (EXMARK)

$

$

Not available

27

Exmark 1-807506

3230-22
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

28

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

29

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

30

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-800268

DISCONTINUED (EXMARK)

$

$

Not available

32

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

33

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

34

Oil Filter Kohler #52-050-02

$

$

Not available

35

Exmark 1-542614

DISCONTINUED (EXMARK)

$

$

Not available

36

Exmark 1-323041

DISCONTINUED (EXMARK)

$

$

Not available

37

Exmark 1-804751

3218-2
(Superseded to 3218-2)

$0.99

$

In Stock, Qty 20+

0

38

Exmark 1-543617-01

DISCONTINUED (EXMARK)

$

$

Not available

39

Exmark 1-801056

DISCONTINUED (EXMARK)

$

$

Not available

40

Exmark 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

41

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

42

Exmark 1-800276

322-9
(Superseded to 322-9)

$3.49

$

In Stock, Qty 20+

0

43

Exmark 1-800275

322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

44

Exmark 1-543756

1-543008
(Superseded to 1-543008)

$39.99

$

In Stock, only 2 left!

0

45

Exmark 1-543248

DISCONTINUED (EXMARK)

$

$

Not available

46

Exmark 1-807274

DISCONTINUED (EXMARK)

$

$

Not available

47

Exmark 1-543758

DISCONTINUED (EXMARK)

$

$

Not available

48

Exmark 1-543362

1-551054
(Superseded to 1-551054)

$

$

Not available

49

Exmark 1-543814

DISCONTINUED (EXMARK)

$

$

Not available

50

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 16

0

51

Exmark 1-805007

3253-6
(Superseded to 3253-6)

$0.99

$

In Stock, Qty 20+

0

52

Exmark 1-800529

DISCONTINUED (EXMARK)

$

$

Not available

53

Exmark 1-543521

BELT-DK DR FMD-60/TR

$63.99

$

In Stock, only 1 left!

0

54

Exmark 1-543778-01

DISCONTINUED (EXMARK)

$

$

Not available

55

Exmark 1-303021

GRIP-LEVER, DRIVE

$1.49

$

In Stock, Qty 17

0

56

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.49

$

In Stock, Qty 15

0

57

Exmark 1-803032

3234-5
(Superseded to 3234-5)

$1.49

$

In Stock, Qty 5

0

58

Exmark 1-807518

3230-3
(Superseded to 3230-3)

$1.49

$

In Stock, Qty 20+

0

59

Exmark 1-807517

3231-29
(Superseded to 3231-29)

$7.99

$

In Stock, only 2 left!

0

60

Exmark 1-543544

1-513170
(Superseded to 1-513170)

$28.99

$

In Stock, only 1 left!

0

61

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

62

Exmark 1-543274

BUSHING,STEEL

$10.99

$

In Stock, only 1 left!

0

63

Exmark 1-543502

BUSHING,IDLER ARM

$16.99

$

Usually ships in 3-6 days

0

64

Exmark 1-542270-01

WLD,IDLER ARM HYDRO

$96.99

$

Usually ships in 3-6 days

0

65

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

66

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

67

Exmark 1-543376

1-543008
(Superseded to 1-543008)

$39.99

$

In Stock, only 2 left!

0

68

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

69

Exmark 1-543548

BELT,A TRANS DRIVE
(Superseded to 1-543548-SL)

$32.99

$

In Stock, only 2 left!

0

70

Exmark 1-543258-01

PLATE-SKID

$

$

Not available

71

Exmark 1-800326

325-5
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

72

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

73

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 20+

0

74

Exmark 1-543684

DISCONTINUED (EXMARK)

$

$

Not available

75

Exmark 1-543685

DISCONTINUED (EXMARK)

$

$

Not available

76

Exmark 1-542312-01

DISCONTINUED (EXMARK)

$

$

Not available

77

Air Filter - Kohler #45-083-02

$

$

Not available

78

Foam Precleaner - Kohler #45-083-01

$

$

Not available

79

Exmark 1-543525

1-513581
(Superseded to 1-513581)

$

$

Not available

80

Exmark 1-603372

2411-52
(Superseded to 2411-52)

$37.99

$

Usually ships in 3-6 days

0

81

Exmark 1-513132

BALLJOINT

$48.99

$

In Stock, only 1 left!

0

82

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

83

Exmark 1-804521

3219-2
(Superseded to 3219-2)

$0.99

$

In Stock, Qty 20+

0

84

Exmark 1-800277

322-10
(Superseded to 322-10)

$0.99

$

In Stock, Qty 20+

0
