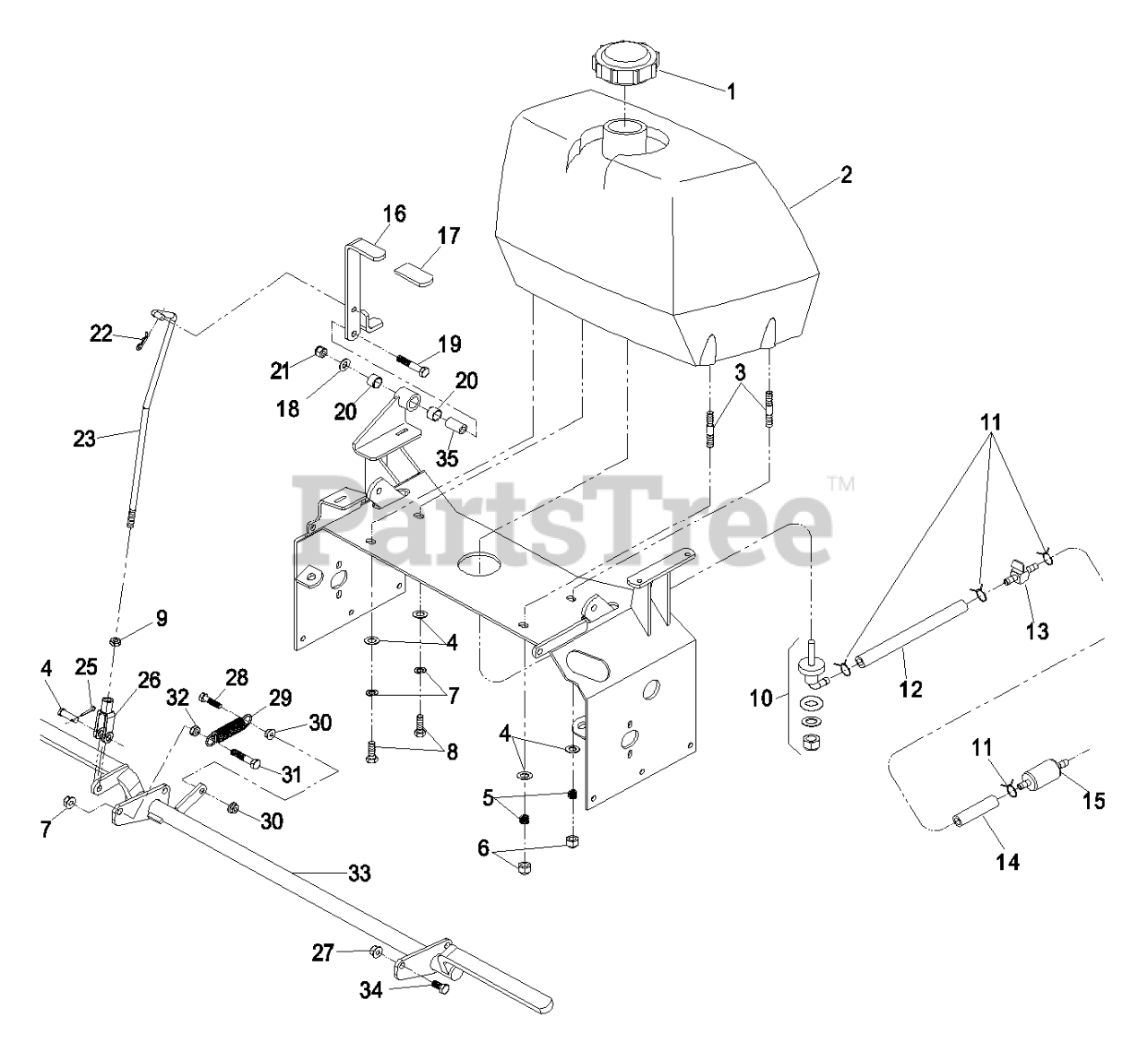

FMD524 - Exmark 52" Turf Tracer Hydro Walk-Behind Mower (SN: 510000 - 599999) (2005) Engine Deck Group (Part 1) Parts Diagram

52" Turf Tracer Hydro Walk-Behind Mower

Engine Deck Group (Part 1) Parts Diagram

  • Title

1

Exmark 103-3536

109-0346
(Superseded to 109-0346)

$21.99

$

In Stock, only 2 left!

0

2

Exmark 103-2893

ASM,FUEL TANK W/B

$276.99

$

Usually ships in 3-6 days

0

3

Exmark 1-633023

STUD

Note: Use Pro-lock, retaining type (P/N 1-840023, .5cc tube) on stud threads going into the tank.

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

0

6

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

7

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

8

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

10

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-lock, nut type (P/N 1-840022, .5ml tube) on fuel fitting threads.

$35.99

$

In Stock, only 3 left!

0

11

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

12

Exmark 1-543649

DISCONTINUED

$

$

Not available

Exmark 1-303022

HOSE-FUEL

$5.49

$

In Stock, only 3 left!

0

13

Exmark 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 14

0

14

Exmark 1-603776

HOSE-LINE, FUEL

$

$

Not available

Exmark 1-303022

HOSE-FUEL

$5.49

$

In Stock, only 3 left!

0

15

Exmark 2405002

Fuel Filter

Note: Kohler

$

$

Currently unavailable

Exmark 49019-7001

Fuel Filter

Note: Kawasaki

$

$

Not available

16

Exmark 103-3423

DISCONTINUED

$

$

Not available

17

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

18

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

23

Exmark 103-1951

LINKAGE,PARK BRAKE

$36.99

$

Usually ships in 3-6 days

0

24

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 5

0

25

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

26

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

27

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

28

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

29

Exmark 1-323161

SPRING-IDLER

$11.99

$

In Stock, only 3 left!

0

30

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

31

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

33

Exmark 103-2205-03

116-9159
(Superseded to 116-9159)

$206.99

$

Usually ships in 3-6 days

0

34

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

35

Exmark 1-413344

BUSHING-PIVOT

$19.99

$

In Stock, only 2 left!

0

Exmark 2508301-S

Air Filter Element - Outer

Note: Kohler Replacement Part; Refer to Engine Owner's Manual

$

$

Currently unavailable

Exmark 2508304-S

Air Filter Element - Inner

Note: Kohler Replacement Part; Refer to Engine Owner's Manual

$

$

Currently unavailable

Exmark 11010-7004

Air Filter Element Kit (Inner & Outer)

Note: Kawasaki Replacement Part

$

$

Currently unavailable

Exmark 103-2208-03

103-3423
(Superseded to 103-3423)

$

$

Not available

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

$18.99

$

In Stock, only 1 left!

0
