FMD524 - Exmark 52" Turf Tracer Hydro Walk-Behind Mower (SN: 370000 - 439999) (2003) 52" Mower Deck FMD524 Parts Diagram

52" Turf Tracer Hydro Walk-Behind Mower

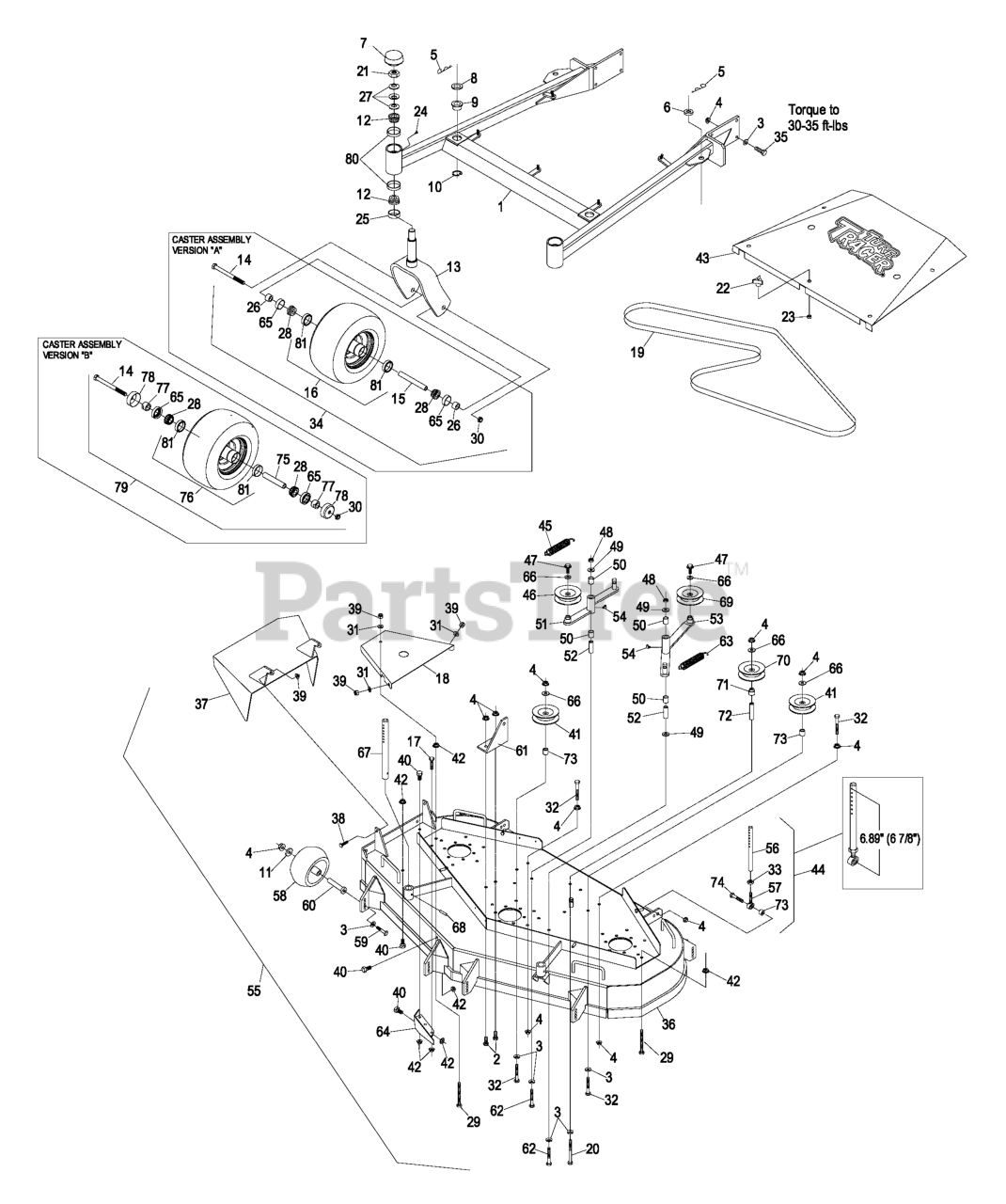

52" Mower Deck FMD524 Parts Diagram

  • Title

1

Exmark 103-1895

ASM,524 FMD DK SUPPORT,SE

$1155.99

$

Usually ships in 3-6 days

0

2

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

0

6

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

7

Exmark 1-543513

CAP-GREASE

$7.99

$

In Stock, Qty 7

0

8

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 14

0

9

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 7

0

10

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

0

11

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

13

Exmark 103-1891-01

WLD, CASTER FORK

$117.99

$

Usually ships in 3-6 days

0

14

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

15

Exmark 103-2355

SPACER,FRONT CASTER

Note: Component required for Caster assembly "A" only.

$14.99

$

Usually ships in 3-6 days

0

16

Exmark 103-1687

103-3800
(Superseded to 103-3800)

Note: Component required for Caster assembly "A" only.

$233.99

$

In Stock, only 4 left!

0

Exmark 1-513032

TIRE

$93.99

$

In Stock, only 2 left!

0

Exmark 103-2274

103-3800
(Superseded to 103-3800)

$233.99

$

In Stock, only 4 left!

0

17

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

18

Exmark 103-2969-01

SHIELD,BELT SIDE FMD524

$51.99

$

Usually ships in 3-6 days

0

19

Exmark 103-2329

BELT,BLADE DRIVE FMD524
(Superseded to 103-2329-SL)

$84.99

$

Usually ships in 3-6 days

0

20

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

21

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

22

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

23

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

24

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

25

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 19

0

26

Exmark 1-633581

SPACER-BEARING

Note: Component required for Caster assembly "A" only.

$4.99

$

In Stock, Qty 14

0

27

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

28

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 20+

0

29

Exmark 1-800017

BOLT,TAP HH

$6.99

$

In Stock, only 2 left!

0

30

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

31

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

33

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

34

Exmark 103-2495

103-3800
(Superseded to 103-3800)

Note: Component required for Caster assembly "A" only.

$233.99

$

In Stock, only 4 left!

0

35

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

36

Exmark 103-2335

116-5948
(Superseded to 116-5948)

$

$

Not available

37

Exmark 103-2348-01

103-5888-01
(Superseded to 103-5888-01)

$

$

Not available

38

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

41

Exmark 1-303516

IDLER,PULLEY

$52.99

$

In Stock, Qty 8

0

42

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

43

Exmark 103-2332

116-2708
(Superseded to 116-2708)

$188.99

$

In Stock, only 1 left!

0

44

Exmark 1-414521

1-411532
(Superseded to 1-411532)

Note: Link assembly nominal length is 6.89" (or approx. 6 7/8") between center of ball joint & center of furthest hole. See diagram on next page. Initially adjust both links to this dimension, then adjust to where both links are equally supporting rear of mower

$147.99

$

In Stock, Qty 5

0

45

Exmark 1-603413

SPRING-EXTENSION

$23.99

$

In Stock, only 4 left!

0

46

Exmark 1-603497

IDLER,PULLEY

$53.99

$

Usually ships in 3-6 days

0

47

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

48

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

49

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

50

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

51

Exmark 1-602604

ASM,IDLER ARM

$142.99

$

Usually ships in 3-6 days

0

Exmark 1-602591-03

1-602604
(Superseded to 1-602604)

$142.99

$

Usually ships in 3-6 days

0

52

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

53

Exmark 1-602865

ASM,IDLER ARM

$137.99

$

In Stock, only 1 left!

0

Exmark 1-602867-03

Arm, Deck Drive Idler

$

$

Currently unavailable

54

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

55

Exmark 103-2327

Complete Deck Assembly

Note: Complete Deck Assembly includes Mower Deck Cutter Housing Assemblies & Blades. See "Mower Deck Cutter Housing Assy".

$

$

Currently unavailable

56

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

0

57

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

0

58

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

59

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

60

Exmark 1-603602

BUSHING-ROLLER

$23.99

$

In Stock, only 3 left!

0

61

Exmark 1-603620-01

BRACKET,SPRING ANCHOR

$26.99

$

Usually ships in 3-6 days

0

62

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

63

Exmark 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, only 2 left!

0

64

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

0

65

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

66

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

67

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

0

68

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 7

0

69

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

0

70

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

0

71

Exmark 1-513791

BUSHING,IDLER

$5.49

$

In Stock, only 1 left!

0

72

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 1 left!

0

73

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 2 left!

0

74

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

75

Exmark 103-3157

126-5359
(Superseded to 126-5359)

Note: Component required for Caster assembly "B" only.

$18.99

$

In Stock, only 2 left!

0

76

Exmark 103-3151

103-3798
(Superseded to 103-3798)

Note: Component required for Caster assembly "B" only.

$197.99

$

In Stock, only 3 left!

0

Exmark 1-513032

TIRE

$93.99

$

In Stock, only 2 left!

0

Exmark 103-2274

103-3800
(Superseded to 103-3800)

$233.99

$

In Stock, only 4 left!

0

77

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5 ml tube) on spacer nut. Component required for Caster assembly "B" only.

$9.49

$

In Stock, Qty 12

0

78

Exmark 103-2768

GUARD-SEAL

Note: Component required for Caster assembly "B" only.

$3.99

$

In Stock, Qty 20+

0

79

Exmark 103-3800

WHEEL AND TIRE ASM

Note: Component required for Caster assembly "B" only.

$233.99

$

In Stock, only 4 left!

0

80

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

81

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0
