FMD524 - Exmark 52" Turf Tracer Front Mount Deck (SN: 000600000 - 000669999) (2006) Deck Group 60" Parts Diagram

52" Turf Tracer Front Mount Deck

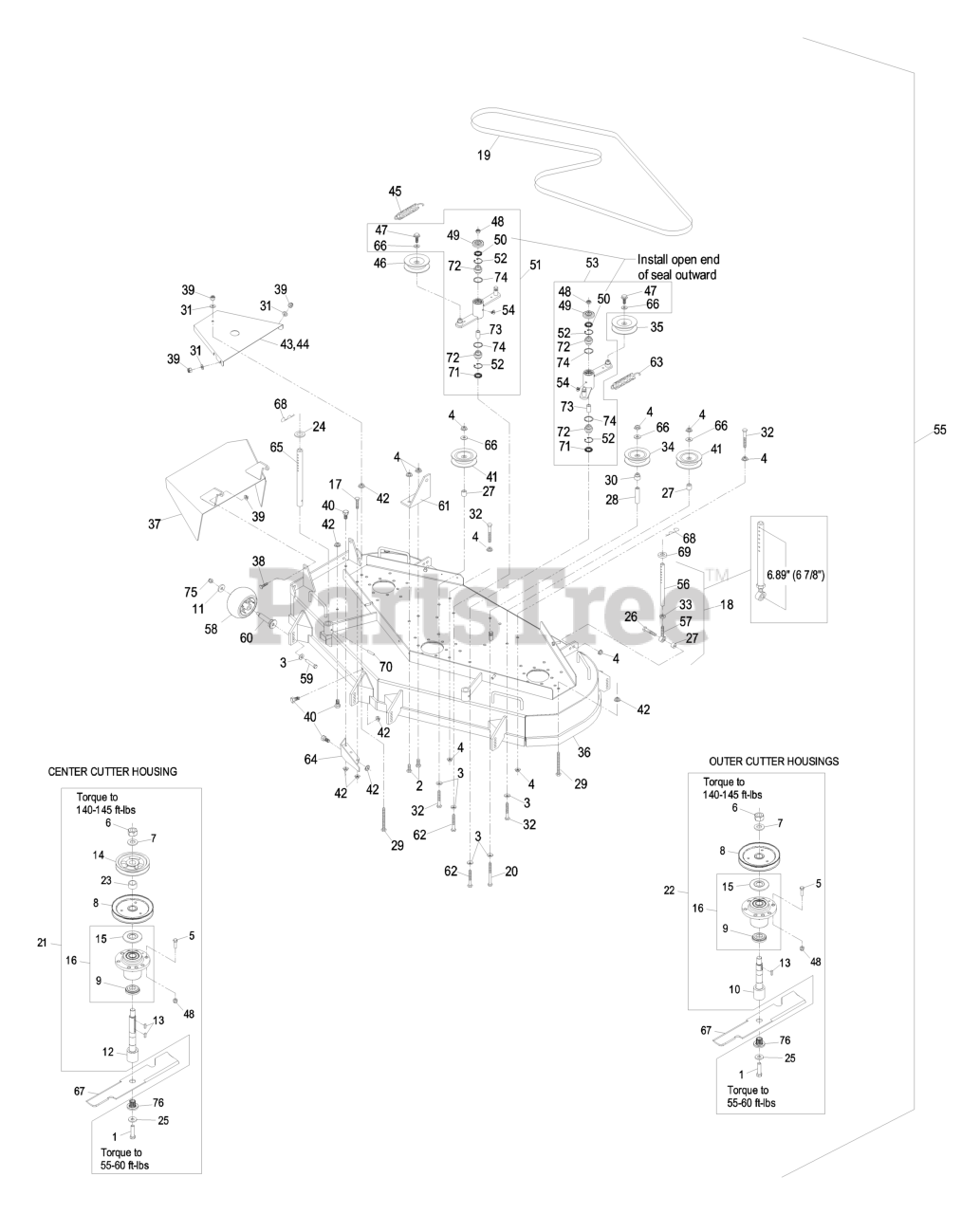

Deck Group 60" Parts Diagram

  • Title
1

Exmark 3213-5

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

2

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut, Item #6.

$12.99

$

In Stock, Qty 13

0

7

$5.49

$

In Stock, Qty 16

0

8

Exmark 103-2794

SHEAVE,BLADE DRIVE 6.30

Note: Apply Mobil HTS grease (P/N 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$68.99

$

In Stock, only 2 left!

0

9

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

10

Exmark 103-9086

KIT, SPLINED SPINDLE 103-

Note: Kit includes items #1, #6, #7, #13, #25 & #76. Apply Mobil HTS grease (P/N 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$214.99

$

In Stock, only 4 left!

0

11

$3.49

$

In Stock, Qty 20+

0

12

Exmark 103-9087

KIT, SPLINED SPINDLE 103-

Note: Kit includes items #1, #6, #7, #13, #25 & #76. Apply Mobil HTS grease (P/N 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$223.99

$

In Stock, only 2 left!

0

$2.99

$

In Stock, Qty 12

0

14

Exmark 103-2791

SHEAVE,BLADE DRIVE

Note: Apply Mobil HTS grease (P/N 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$70.99

$

Usually ships in 3-6 days

0

15

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$5.49

$

In Stock, only 2 left!

0

16

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (P/N 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$254.99

$

In Stock, only 4 left!

0

17

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Exmark 1-414521

1-411532
(Superseded to 1-411532)

Note: Link assembly nominal length is 6.89" (or approx. 6 7/8") between center of ball joint & center of furthest hole. See "Deck Support Group 52" And 60". Initially adjust both links to this dimension, then adjust to where both links are equally supporting re

$147.99

$

In Stock, Qty 5

0

19

Exmark 1-633173

BELT,MULE DRIVE
(Superseded to 1-633173-SL)

$102.99

$

In Stock, Qty 15

0

20

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 18

0

21

Exmark 103-9083

ASM, CUTTER HSG FMD604CTR

$579.99

$

Usually ships in 3-6 days

0

22

Exmark 103-9076

ASM, CUTTER HSG COMPLETE

$470.99

$

In Stock, only 4 left!

0

23

Exmark 103-3209

SPACER,TUBE

$8.49

$

Usually ships in 3-6 days

0

24

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 16

0

25

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

26

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

$7.99

$

In Stock, only 4 left!

0

28

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 1 left!

0

29

Exmark 1-800017

BOLT,TAP HH

$6.99

$

In Stock, only 2 left!

0

30

Exmark 1-513791

BUSHING,IDLER

$5.49

$

In Stock, only 1 left!

0

31

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

34

Exmark 1-603805

PULLEY-IDLER

$56.99

$

In Stock, Qty 14

0

35

Exmark 1-613098

PULLEY-IDLER

$49.99

$

In Stock, Qty 7

0

36

Exmark 103-8388

ASM, DECK W/DECALS FMD604

$4285.99

$

Usually ships in 3-6 days

0

37

Exmark 103-2349-01

WLD,CHUTE FMD604

$159.99

$

Usually ships in 3-6 days

0

38

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

41

Exmark 1-303516

IDLER,PULLEY

$52.99

$

In Stock, Qty 8

0

42

$1.49

$

In Stock, Qty 20+

0

43

Exmark 103-2967-01

SHIELD,BELT RH

$66.99

$

Usually ships in 3-6 days

0

44

Exmark 103-2968-01

SHIELD,BELT LH

$66.99

$

Usually ships in 3-6 days

0

45

Exmark 1-603413

SPRING-EXTENSION

$22.99

$

In Stock, Qty 6

0

46

Exmark 1-603497

IDLER,PULLEY

$53.99

$

In Stock, only 2 left!

0

47

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

48

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

49

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

50

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

51

Exmark 103-8072

KIT, IDLER ARM W/BEARINGS

Note: Idler arm assembly also includes items #3 & #62.

$190.99

$

Usually ships in 3-6 days

0

52

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

53

Exmark 103-8071

KIT, IDLER ARM W/BEARINGS

Note: Idler arm assembly also includes items #3 & #62.

$203.99

$

Usually ships in 3-6 days

0

54

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

55

Exmark 103-2279

Complete Deck Assy

$

$

Currently unavailable

56

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

0

57

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

0

58

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-7263 includes antiscalp roller, axle, & mounting hardware.

$22.99

$

In Stock, Qty 20+

0

59

Exmark 3211-46

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

60

Exmark 103-5364

116-9981
(Superseded to 116-9981)

$53.99

$

In Stock, Qty 20+

0

61

Exmark 1-603620-01

BRACKET,SPRING ANCHOR

$26.99

$

Usually ships in 3-6 days

0

62

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

63

Exmark 1-603414

SPRING-EXTENSION

$20.99

$

Usually ships in 3-6 days

0

64

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

0

65

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

0

66

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

67

Exmark 103-6403

103-6403-S
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

Exmark 103-6383

103-6383-S
(Superseded to 103-6383-S)

$34.99

$

In Stock, Qty 5

0

Exmark 103-6388

103-6388-S
(Superseded to 103-6388-S)

$37.99

$

In Stock, Qty 20+

0

Exmark 103-6393

103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK604Q.

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6398

116-5174-S
(Superseded to 116-5174-S)

$30.99

$

In Stock, only 2 left!

0

68

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

0

69

$2.49

$

In Stock, Qty 20+

0

70

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 8

0

71

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

72

Exmark 103-3504

BEARING-SPHERICAL

$23.99

$

In Stock, Qty 20+

0

73

Exmark 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

74

$1.49

$

In Stock, Qty 20+

0

75

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

76

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark 103-9140

PAINT, TOUCH UP

$21.99

$

In Stock, only 1 left!

0

Exmark 103-5217

PACK,LUBE MOBIL HTS GREAS

$8.49

$

In Stock, only 2 left!

0

Exmark 103-7263

116-9981
(Superseded to 116-9981)

$53.99

$

In Stock, Qty 20+

0

Exmark MK604Q

Mulch Kit

$

$

Currently unavailable

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days
