FMD524 - Exmark 52" Turf Ranger Front Mount Mower (SN: 510000 - 599999) (2005) Decals Parts Diagram

52" Turf Ranger Front Mount Mower

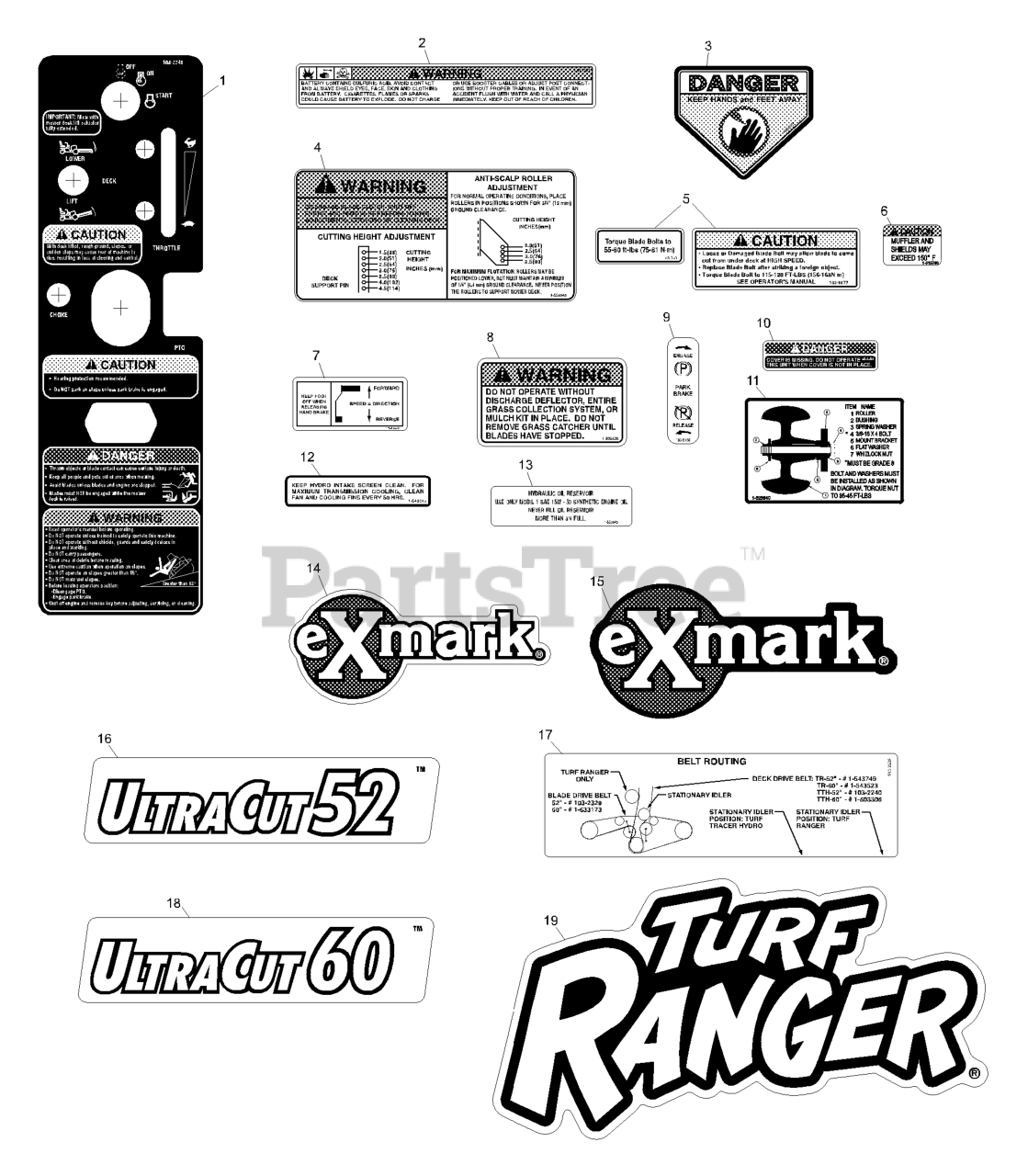

Decals Parts Diagram

  • Title

1

Exmark 103-2248

DECAL, CONSOLE

$40.99

$

Usually ships in 3-6 days

0

2

Exmark 1-513747

DECAL-BATTERY

$7.49

$

Usually ships in 3-6 days

0

3

Exmark 1-403005

DECAL-DANGER

$5.49

$

In Stock, Qty 20+

0

4

Exmark 1-553049

DECAL,ANTI SCALP

$15.99

$

In Stock, only 3 left!

0

5

Exmark 103-1077

DECAL,BOLT TORQUE

Note: Decal used on decks with S/N 510,000-539,999.

$8.99

$

In Stock, only 2 left!

0

Exmark 103-7491

109-3148
(Superseded to 109-3148)

Note: Decal used on decks with S/N 540,000 & higher.

$2.99

$

In Stock, Qty 17

0

6

Exmark 1-513746

103-2076
(Superseded to 103-2076)

$6.49

$

In Stock, only 1 left!

0

7

Exmark 1-543624

DECAL,FOOT PEDAL

$

$

Not available

8

Exmark 1-303508

DECAL-WARNING, DISCHARGE

$5.49

$

In Stock, Qty 20+

0

9

Exmark 103-2432

DECAL,PARKING BRAKE

$

$

Not available

10

Exmark 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

11

Exmark 1-323540

DECAL,ROLLER MOUNTING

Note: Decal used on decks with type A anti scalp axles. Reference "Deck Group 52" FMD524 Deck S/N 510,000-539,999"; "Deck Group 52" FMD524 Deck S/N 540,000 & Higher"

$7.49

$

In Stock, Qty 10

0

12

Exmark 1-543620

DECAL,INTAKE

$

$

Not available

13

Exmark 1-553040

DECAL,HYDRAULIC TANK

$8.99

$

Usually ships in 3-6 days

0

14

Exmark 1-643103

DECAL,EXMARK LOGO

$18.99

$

In Stock, only 4 left!

0

15

Exmark 103-2882

DECAL,EXMARK LOGO

$11.99

$

In Stock, Qty 20+

0

16

Exmark 103-1145

DECAL,ULTRACUT 52

$10.99

$

In Stock, only 3 left!

0

17

Exmark 103-2239

DECAL,BELT ROUTING

$11.99

$

Usually ships in 3-6 days

0

18

Exmark 103-1146

DECAL,ULTRACUT 60

$15.99

$

In Stock, Qty 7

0

19

Exmark 103-3014

DISCONTINUED

$

$

Not available

Exmark 103-2550

KIT,DECAL TR

$258.99

$

Usually ships in 3-6 days

0
