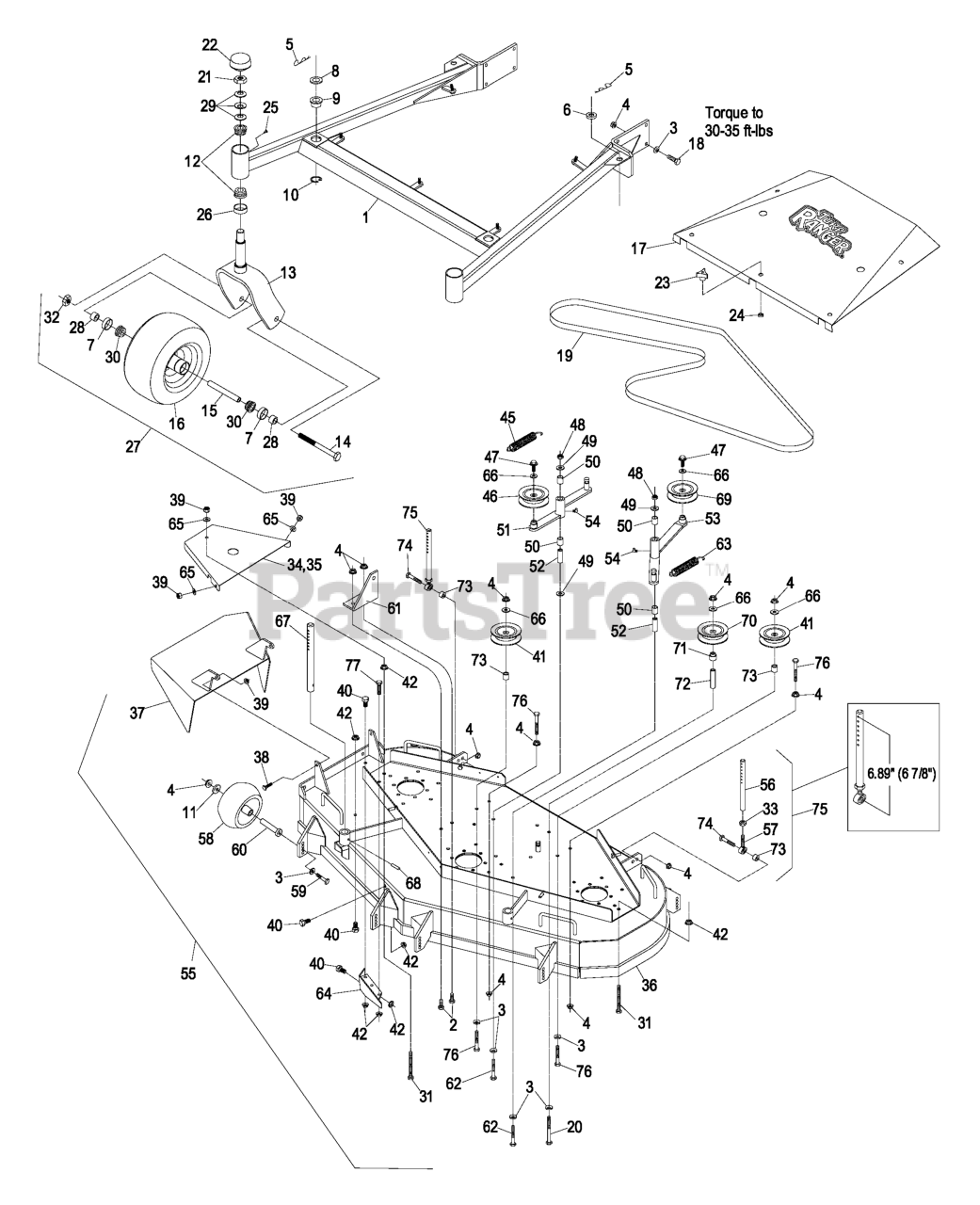

Exmark FMD524 - Exmark 52" Turf Ranger Front Mount Mower (SN: 370000 - 439999) (2003) 60" Mower Deck FMD604 Parts Lookup with Diagrams

1

Exmark 103-1896

ASM,FMD604 DK SUPPORT, SE

$

Not available 

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

4

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 16

9

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

11

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

Exmark 103-1891-01

WLD, CASTER FORK

$113.99

$

Usually ships in 3-6 days

14

Exmark 103-2355

SPACER,FRONT CASTER

$14.99

$

Usually ships in 3-6 days

16

Exmark 103-1687

103-3800

(Superseded to 103-3800) 

$240.99

$

In Stock, only 4 left!

Exmark 103-2274

103-3800

(Superseded to 103-3800) 

$240.99

$

In Stock, only 4 left!

Exmark 103-2276

KIT,SHIELD TR604 W/ DECAL

$

Not available 

18

Exmark 1-633173

BELT,MULE DRIVE

(Superseded to 1-633173-SL) 

$102.99

$

In Stock, Qty 15

20

Exmark 1-543513

CAP-GREASE

$7.99

$

In Stock, only 3 left!

23

Exmark 103-2495

103-3800

(Superseded to 103-3800) 

$240.99

$

In Stock, only 4 left!

28

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

30

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 12

31

Exmark 1-800017

BOLT,TAP HH

$6.99

$

In Stock, only 2 left!

32

Exmark 103-2967-01

SHIELD,BELT RH

$66.99

$

Usually ships in 3-6 days

35

Exmark 103-2968-01

SHIELD,BELT LH

$66.99

$

Usually ships in 3-6 days

36

Exmark 103-2278

103-8388

(Superseded to 103-8388) 

$4285.99

$

Usually ships in 3-6 days

37

Exmark 103-2349-01

WLD,CHUTE FMD604

$159.99

$

Usually ships in 3-6 days

38

Exmark 103-3209

SPACER,TUBE

$8.49

$

Usually ships in 3-6 days

44

Exmark 103-2791

SHEAVE,BLADE DRIVE

Note: Complete Deck Assembly includes Mower Deck Cutter Housing Assemblies & Blades. See "Deck Cutter Housing Assemblies".

$70.99

$

Usually ships in 3-6 days

45

Exmark 1-603413

SPRING-EXTENSION

$22.99

$

In Stock, Qty 6

46

Exmark 1-603497

IDLER,PULLEY

$53.99

$

In Stock, only 2 left!

47

Exmark 1-602604

ASM,IDLER ARM

$142.99

$

In Stock, only 1 left!

Exmark 1-602591-03

1-602604

(Superseded to 1-602604) 

$142.99

$

In Stock, only 1 left!

52

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

53

Exmark 1-602865

ASM,IDLER ARM

$134.99

$

In Stock, only 2 left!

Exmark 1-602867-03

Arm, Deck Drive Idler

$

Currently unavailable 

54

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

55

Exmark 103-2279

Complete Deck Assy

Note: Complete Deck Assembly includes Mower Deck Cutter Housing Assemblies & Blades. See "Deck Cutter Housing Assemblies".

$

Currently unavailable 

56

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

57

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

58

Exmark 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

59

Exmark 1-603620-01

BRACKET,SPRING ANCHOR

$26.99

$

Usually ships in 3-6 days

62

Exmark 1-603414

SPRING-EXTENSION

$20.99

$

Usually ships in 3-6 days

64

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

65

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

68

Exmark 1-806332

32121-15

(Superseded to 32121-15) 

$1.99

$

In Stock, Qty 8

69

Exmark 1-513791

BUSHING,IDLER

$5.49

$

In Stock, only 1 left!

72

Exmark 1-633988

SPACER-ANCHOR, CLUTCH

$11.99

$

In Stock, only 1 left!

73

Note: Link assembly nominal length is 6.89" (or approx. 6 7/8") between center of ball joint & center of furthest hole. See diagram on previous page. Initially adjust both links to this dimension, then adjust to where both links are equally supporting rear of m

$147.99

$

In Stock, Qty 5
