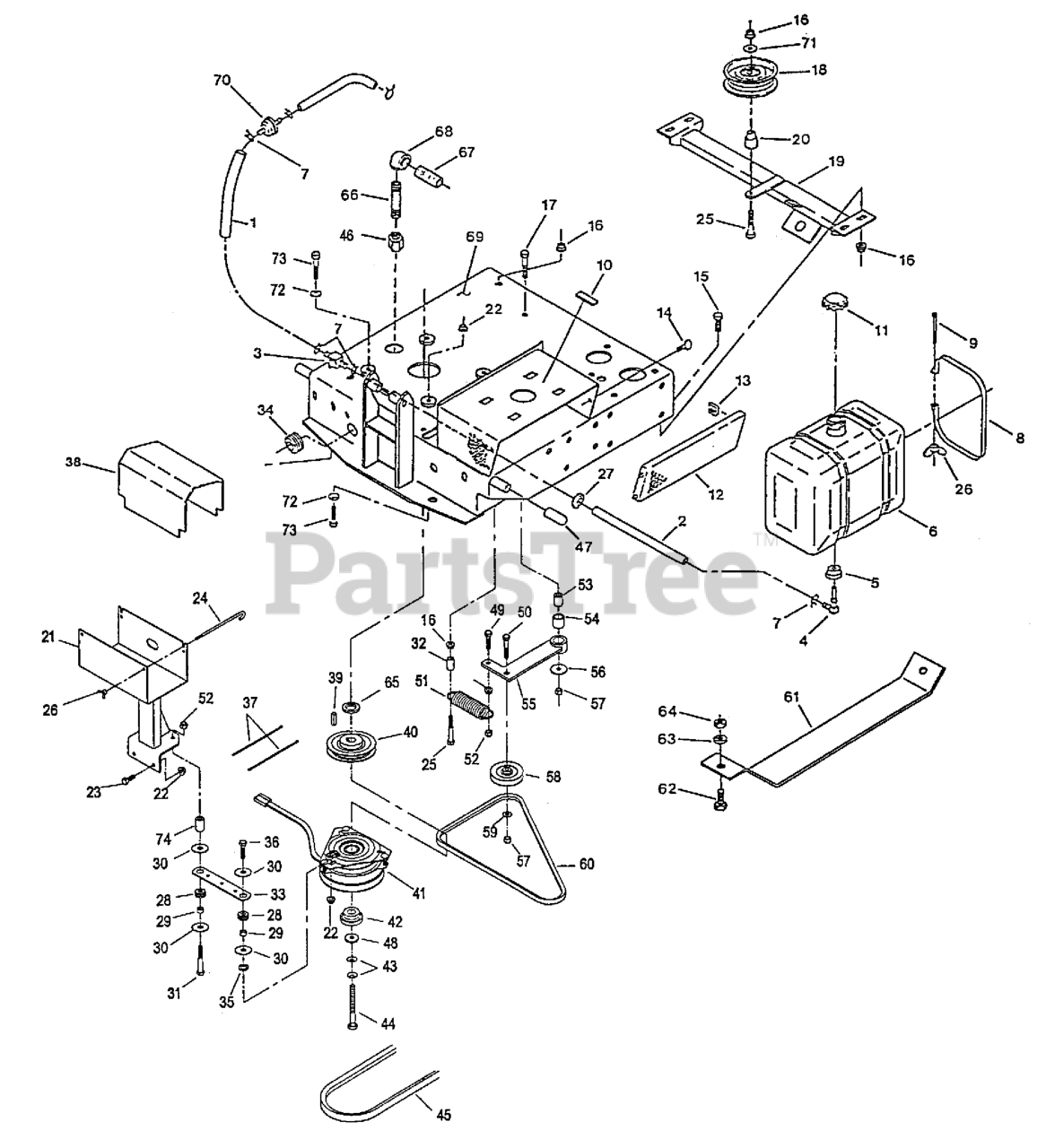

FMD523 - Exmark 52" Turf Ranger Front Mount Mower (SN: 260000 - 319999) (2001) Engine Deck Group Parts Diagram

52" Turf Ranger Front Mount Mower

Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-303426

HOSE-FUEL

$

$

Not available

2

Exmark 1-303306

DISCONTINUED

$

$

Not available

3

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

0

4

Exmark 1-543277

ELBOW-TANK, FUEL

$12.99

$

In Stock, Qty 6

0

5

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

6

Exmark 1-543364

DISCONTINUED

$

$

Not available

7

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-303465-03

1-303465
(Superseded to 1-303465)

$41.99

$

In Stock, only 1 left!

0

9

Exmark 1-801062

SCRW,MACH CRPH

$2.99

$

In Stock, only 1 left!

0

10

Exmark 1-303315

PAD,PLASTIC TANK

$

$

Not available

11

Exmark 1-513508

CAP-FUEL

$27.99

$

In Stock, only 1 left!

0

12

Exmark 1-542045

1-542045-01
(Superseded to 1-542045-01)

$

$

Not available

13

Exmark 1-809024

NUT,RETNR UTYP 1/4-20

$

$

Not available

14

Exmark 1-543791

SCREW,REGTHMB,

$

$

Not available

15

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

16

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

17

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Exmark 1-543877

109-6561
(Superseded to 109-6561)

$144.99

$

Usually ships in 3-6 days

0

19

Exmark 1-542958-01

WLD,CROSSMEMBER

$

$

Not available

20

Exmark 1-543879

BUSHING,IDLER

$15.99

$

In Stock, only 1 left!

0

21

Exmark 1-542069-03

WLD,BATTERY MOUNT

$

$

Not available

22

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Exmark 1-543882

BOLT - HOLD DOWN

$16.99

$

In Stock, only 4 left!

0

25

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

27

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

28

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 16

0

29

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

30

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

31

Exmark 322-14

SCREW-HH

$2.99

$

In Stock, Qty 8

0

32

Exmark 1-603401

SPACER

$6.99

$

In Stock, Qty 8

0

33

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 2 left!

0

34

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

35

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

0

36

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

37

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

38

Exmark 1-543891

103-3442
(Superseded to 103-3442)

$85.99

$

In Stock, only 4 left!

0

39

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

40

Exmark 1-543929

SHEAVE,4.25 OD A

$195.99

$

Usually ships in 3-6 days

0

41

Exmark 1-543259

1-551054
(Superseded to 1-551054)

$

$

Not available

42

Exmark 1-603609

BUSHING,CLUTCH KEEPER

$30.99

$

In Stock, only 2 left!

0

43

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

44

Exmark 3212-12

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$3.49

$

In Stock, Qty 13

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$20.99

$

Usually ships in 3-6 days

0

45

Exmark 1-543523

BELT,DECK DRIVE
(Superseded to 1-543523-SL)

$88.99

$

Usually ships in 3-6 days

0

Exmark 1-543749

BELT,DECK DRIVE 52

$103.99

$

In Stock, only 1 left!

0

46

Exmark 1-543233

CAP-HEX

$

$

Not available

47

Exmark 1-303021

GRIP-LEVER, DRIVE

$1.49

$

In Stock, Qty 17

0

48

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

49

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

50

Exmark 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

51

Exmark 1-513170

SPRING,EXTENSION

$28.99

$

In Stock, only 1 left!

0

52

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

53

Exmark 1-543274

BUSHING,STEEL

$10.99

$

In Stock, only 1 left!

0

54

Exmark 1-543502

BUSHING,IDLER ARM

$16.99

$

Usually ships in 3-6 days

0

55

Exmark 1-542270-01

WLD,IDLER ARM HYDRO

$96.99

$

Usually ships in 3-6 days

0

56

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

57

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

58

Exmark 1-543008

IDLER,PULLEY

$39.99

$

In Stock, only 2 left!

0

59

Exmark 3296-24

NUT-HEX

$4.99

$

In Stock, Qty 20+

0

60

Exmark 1-543548

BELT,A TRANS DRIVE
(Superseded to 1-543548-SL)

$32.99

$

In Stock, only 2 left!

0

61

Exmark 1-543258-01

PLATE-SKID

$

$

Not available

62

Exmark 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

63

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

64

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

65

Exmark 1-543214

103-2308
(Superseded to 103-2308)

$9.49

$

In Stock, Qty 5

0

66

Exmark 1-303427

DISCONTINUED (EXMARK)

Note: Use Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

67

Exmark 1-543064

NIPPLE,PIPE

Note: Use Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

68

Exmark 1-303428

ELBOW-90 DEG

Note: Use Teflon Pipe Sealant or equivalent on threads.

$

$

Not available

69

Exmark 1-552073-01

103-3441
(Superseded to 103-3441)

$

$

Not available

70

Exmark 2405002

Kohler Fuel Filter

$

$

Currently unavailable

71

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

72

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

73

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

74

Exmark 553053

Spacer

$

$

Currently unavailable

Exmark 1-850337

PAINT,SPRAY RED

$33.99

$

In Stock, Qty 16

0
