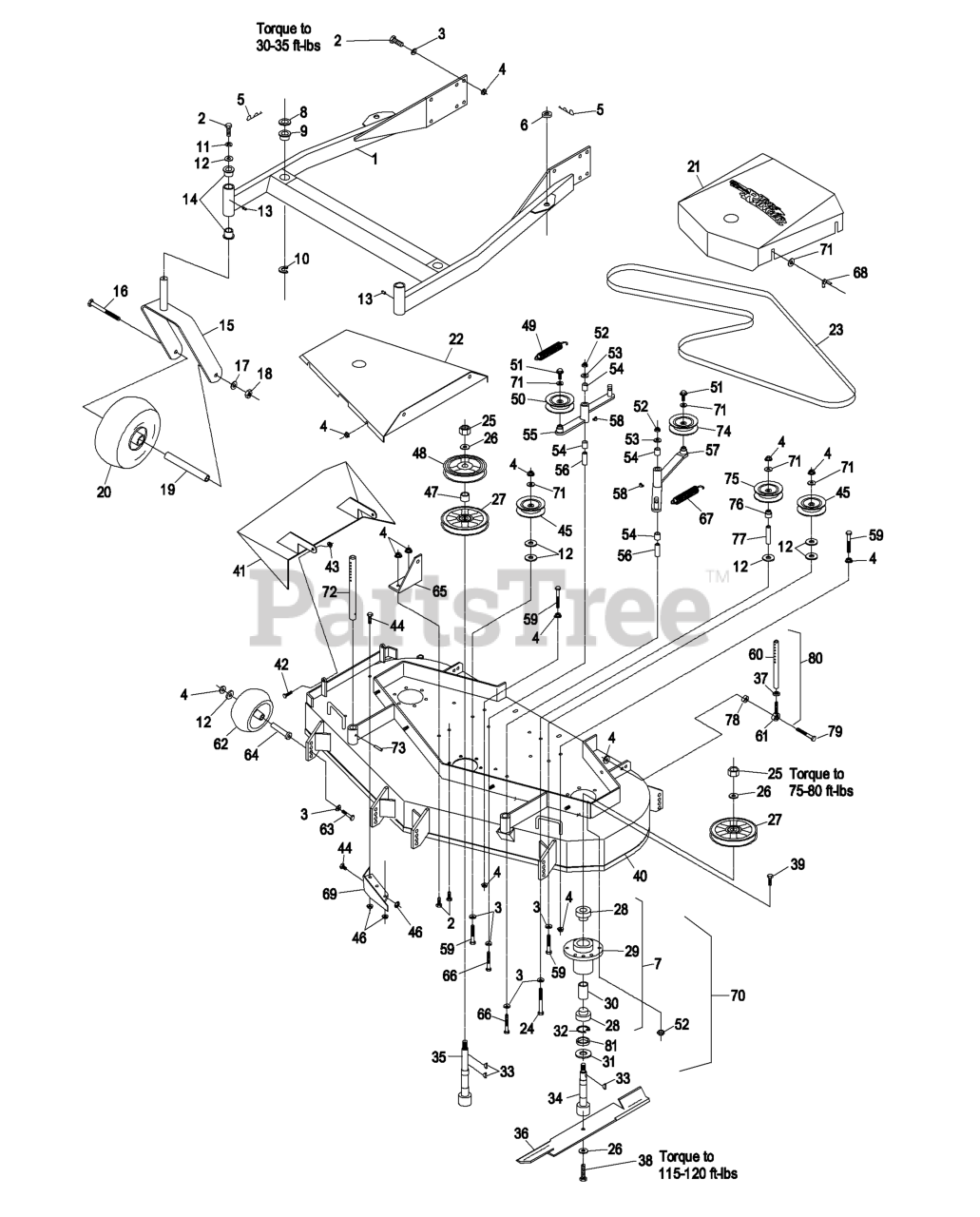

Exmark FMD523 - Exmark 52" Turf Ranger Front Mount Mower (SN: 260000 - 319999) (2001) 52" Mower Deck Parts Lookup with Diagrams

1

Exmark 1-604960

DISCONTINUED

$

Not available 

2

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

3

Exmark 98-5975

WASHER-BELLEVILLE

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 12, 71, 75 - 77

$3.49

$

In Stock, Qty 20+

4

Exmark 3290-357

NUT-HHF, WHIZ

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 12, 71, 75 - 77

$0.99

$

In Stock, Qty 20+

5

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

6

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

7

Exmark 1-634619

103-8280

(Superseded to 103-8280) 

$254.99

$

In Stock, only 3 left!

8

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 14

9

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 7

10

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

11

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

12

Exmark 1-373034

WASHER

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 12, 71, 75 - 77.

$3.49

$

In Stock, Qty 20+

13

Exmark 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+

14

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, only 1 left!

15

Exmark 1-522143-01

116-7941-01

(Superseded to 116-7941-01) 

$90.99

$

In Stock, Qty 7

16

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

17

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

18

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

19

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 6

20

Exmark 1-513648

103-2171

(Superseded to 103-2171) 

$126.99

$

In Stock, only 4 left!

Exmark 1-513807

103-2171

(Superseded to 103-2171) 

$126.99

$

In Stock, only 4 left!

Exmark 1-513808

TIRE

$43.99

$

In Stock, only 4 left!

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 8

Exmark 1-513810

BUSHING

$5.99

$

In Stock, Qty 17

21

Exmark 1-544835

COVER W/DECAL TR/FMD523

$

Not available 

22

Exmark 1-602545-01

DISCONTINUED

$

Not available 

23

Exmark 1-603576

BELT,BLADE DRIVE

(Superseded to 1-603576-SL) 

$63.99

$

In Stock, only 3 left!

24

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

25

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

26

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

27

Exmark 1-553039

SHEAVE,BLADE DRIVE

Note: Use antisieze on bore of sheave & bearings.

$

Not available 

28

Exmark 1-513016

BEARING

Note: Use antisieze on bore of sheave & bearings.

$82.99

$

In Stock, Qty 20+

29

Exmark 1-323532

103-8280

(Superseded to 103-8280) 

$254.99

$

In Stock, only 3 left!

30

Exmark 1-323528

SPACER-BEARING

$9.49

$

In Stock, Qty 13

31

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, Qty 8

32

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

33

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

34

Exmark 103-0958

SHAFT,SPINDLE SHORT

$136.99

$

Usually ships in 3-6 days

35

Exmark 103-0959

DISCONTINUED

$

Not available 

36

Exmark 1-633482

103-6584-S

(Superseded to 103-6584-S) 

$31.99

$

In Stock, Qty 5

Exmark 1-613251

103-1578-S

(Superseded to 103-1578-S) 

$37.99

$

In Stock, only 3 left!

Exmark 1-633485

103-6580-S

(Superseded to 103-6580-S) 

$34.99

$

In Stock, Qty 13

Exmark 1-633484

103-6582-S

(Superseded to 103-6582-S) 

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK523.

$31.99

$

In Stock, Qty 20+

37

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

38

Exmark 103-0862

SCREW-CAP

$5.99

$

In Stock, Qty 18

39

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

40

Exmark 1-612155

DISCONTINUED (EXMARK)

Note: Deck weldmt DOES include welded in flow control baffles

$

Not available 

41

Exmark 1-602571-01

WLD,CHUTE DISCHARGE

$181.99

$

Usually ships in 3-6 days

42

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

43

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

44

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

45

Exmark 1-303516

IDLER,PULLEY

$52.99

$

In Stock, Qty 8

46

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

47

Exmark 1-603504

SPACER-TUBE

$19.99

$

Usually ships in 3-6 days

48

Exmark 1-603581

SHEAVE,MOWER DRIVE

Note: Use antisieze on bore of sheave & bearings.

$144.99

$

Usually ships in 3-6 days

49

Exmark 1-603413

SPRING-EXTENSION

$23.99

$

In Stock, only 4 left!

50

Exmark 1-603497

IDLER,PULLEY

$53.99

$

Usually ships in 3-6 days

51

Exmark 3239-11

Screw, Whizlock 3/8-16 X 1

$

Currently unavailable 

52

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

53

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

54

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

55

Exmark 1-602604

ASM,IDLER ARM

$142.99

$

Usually ships in 3-6 days

Exmark 1-602591-03

1-602604

(Superseded to 1-602604) 

$142.99

$

Usually ships in 3-6 days

56

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

57

Exmark 1-602865

ASM,IDLER ARM

$137.99

$

In Stock, only 1 left!

Exmark 1-602867-03

Arm, Deck Drive Idler

$

Currently unavailable 

58

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

59

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

60

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

61

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

62

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

63

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

64

Exmark 1-603602

BUSHING-ROLLER

$23.99

$

In Stock, only 3 left!

65

Exmark 1-603620-01

BRACKET,SPRING ANCHOR

$26.99

$

Usually ships in 3-6 days

66

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

67

Exmark 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, only 2 left!

68

Exmark 1-543678

NUT-WING

$12.99

$

In Stock, Qty 5

69

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

70

Exmark 1-554033

CUTTER HOUSING ASSY,CEN

Note: Center complete cutter housing includes sheaves, washer, spacer and nut.

$806.99

$

Usually ships in 3-6 days

Exmark 1-554019

CUTTER HOUSING ASM,OUTER

Note: Outer complete cutter housing includes sheave, washer and nut.

$

Not available 

71

Exmark 3256-24

WASHER-FLAT

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 12, 71, 75 - 77.

$0.99

$

In Stock, Qty 18

72

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

73

Exmark 1-806332

32121-15

(Superseded to 32121-15) 

$1.99

$

In Stock, Qty 7

74

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 6

75

Exmark 1-603805

PULLEY-IDLER

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 12, 71, 75 - 77.

$54.99

$

In Stock, Qty 12

76

Exmark 1-513791

BUSHING,IDLER

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 12, 71, 75 - 77.

$5.49

$

In Stock, only 1 left!

77

Exmark 1-603494

SPACER-FENDER

Note: These parts are available in an Idler Pulley Kit (Part No. 1-601806). Each kit contains one item each of reference number 3, 4, 12, 71, 75 - 77.

$

Not available 
