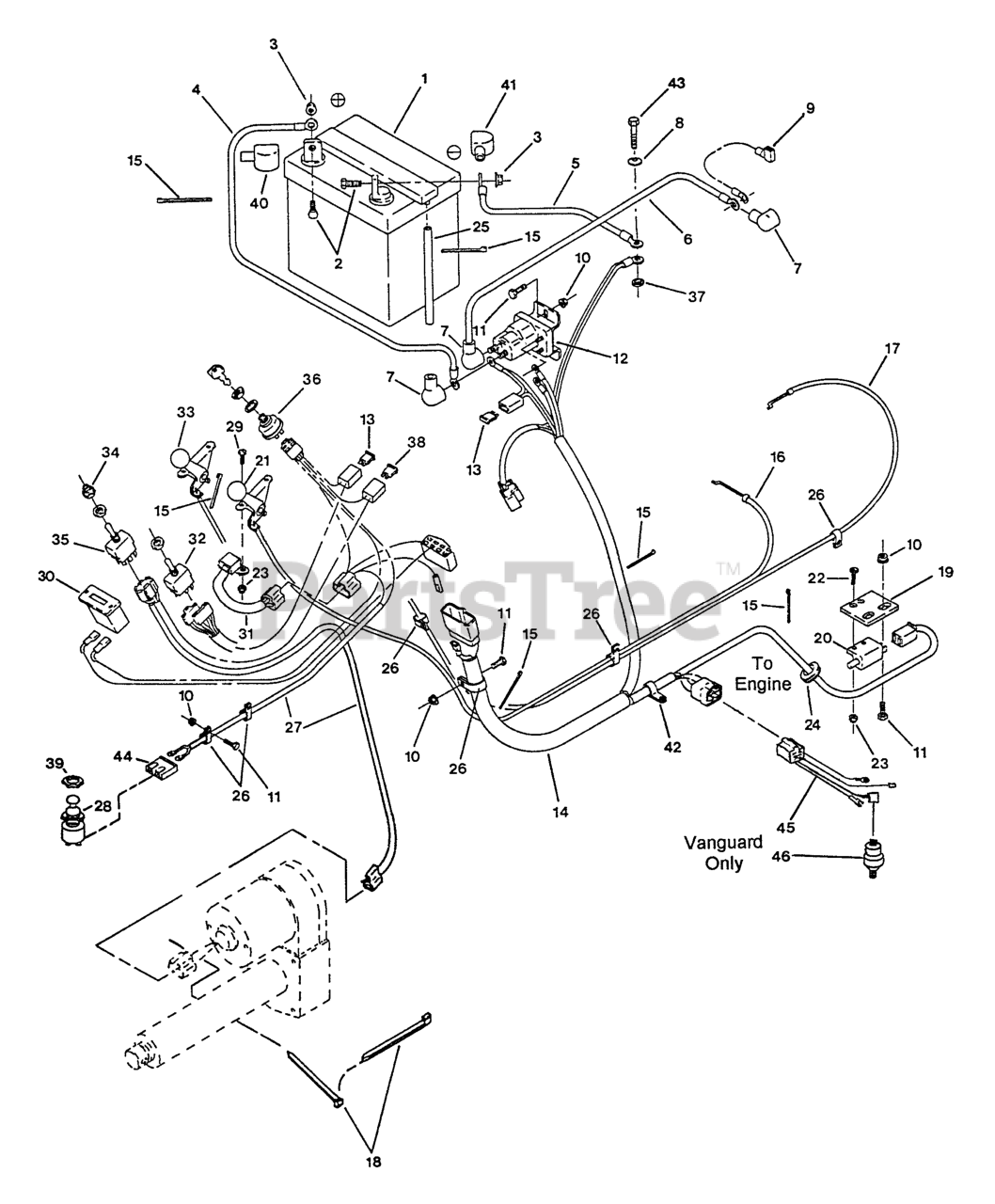

FMD522 - Exmark 52" Turf Ranger Front Mount Mower (SN: 115000 - 129999) (1996) Electrical Group Parts Diagram

52" Turf Ranger Front Mount Mower

Electrical Group Parts Diagram

  • Title

1

Exmark 1-603479

Battery, 12 Volt

$

$

Not available

2

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

3

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

4

Exmark 1-513053

109-7653
(Superseded to 109-7653)

$35.99

$

In Stock, only 1 left!

0

5

Exmark 1-543767

WIRE-GROUND

$21.99

$

In Stock, only 2 left!

0

6

Exmark 1-543766

WIRE,BATTERY POSITIVE

$

$

Not available

Exmark 1-513582

109-7628
(Superseded to 109-7628)

$26.99

$

In Stock, only 1 left!

0

7

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

8

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

9

Exmark 1-543084

DISCONTINUED

$

$

Not available

10

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

11

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-513075

117-1197
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

13

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

14

Exmark 1-543065

DISCONTINUED

$

$

Not available

15

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 1-543697

1-633696
(Superseded to 1-633696)

$62.99

$

In Stock, only 3 left!

0

17

Exmark 1-543072

DISCONTINUED

$

$

Not available

18

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

19

Exmark 1-323128

BRACKET,SAFETY SWITCH

$

$

Not available

20

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

21

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 10

0

22

Exmark 1-803017

32108-55
(Superseded to 32108-55)

$1.99

$

Usually ships in 3-6 days

0

23

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

24

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

25

Exmark 1-809040

DISCONTINUED (EXMARK)

$

$

Not available

26

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

27

Exmark 1-543403

DISCONTINUED

$

$

Not available

28

Exmark 1-603760

SWITCH,PUSH BUTTON

$66.99

$

In Stock, only 2 left!

0

29

Exmark 1-807527

DISCONTINUED

$

$

Not available

30

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

31

Exmark 1-543316

MODULE,OPC

$189.99

$

In Stock, only 1 left!

0

32

Exmark 1-543018

SWITCH,W/TERM CLIPPD

$64.99

$

In Stock, only 1 left!

0

33

Exmark 1-513593

KNOB-BALL, BLACK

$5.49

$

In Stock, Qty 11

0

34

Exmark 1-543386

BOOT-SWITCH, TOGGLE

$30.99

$

Usually ships in 3-6 days

0

35

Exmark 1-543385

SWITCH-TOGGLE, DPDT

$128.99

$

Usually ships in 3-6 days

0

36

Exmark 1-543070

SWITCH,IGNITION

$44.99

$

In Stock, only 2 left!

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

37

Exmark 1-805506

DISCONTINUED

$

$

Not available

38

Exmark 1-816003

FUSE-BLADE TYPE, 30 AMP

$5.99

$

Usually ships in 3-6 days

0

39

Exmark 1-543348

DISCONTINUED

$

$

Not available

40

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

41

Exmark 1-543390

INSULATOR, BATTERY -

$7.49

$

Usually ships in 3-6 days

0

42

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

43

Exmark 1-800276

322-9
(Superseded to 322-9)

Note: This screw is shown in it's proper location on the engine deck illustration (Engine Deck Group).

$3.49

$

In Stock, only 3 left!

0

44

Exmark 1-543335

CONNECTOR,PACKARD 2 WAY

$

$

Not available

45

Exmark 1-543225

WIRHRNS,ENG ADAPTER

$

$

Not available

46

Exmark 1-603645

SWITCH-OIL PRESSURE

$123.99

$

Usually ships in 3-6 days

0
