FMD522 - Exmark 52" Turf Ranger Front Mount Mower (SN: 115000 - 129999) (1996) Axle and Hydraulics Parts Diagram

52" Turf Ranger Front Mount Mower

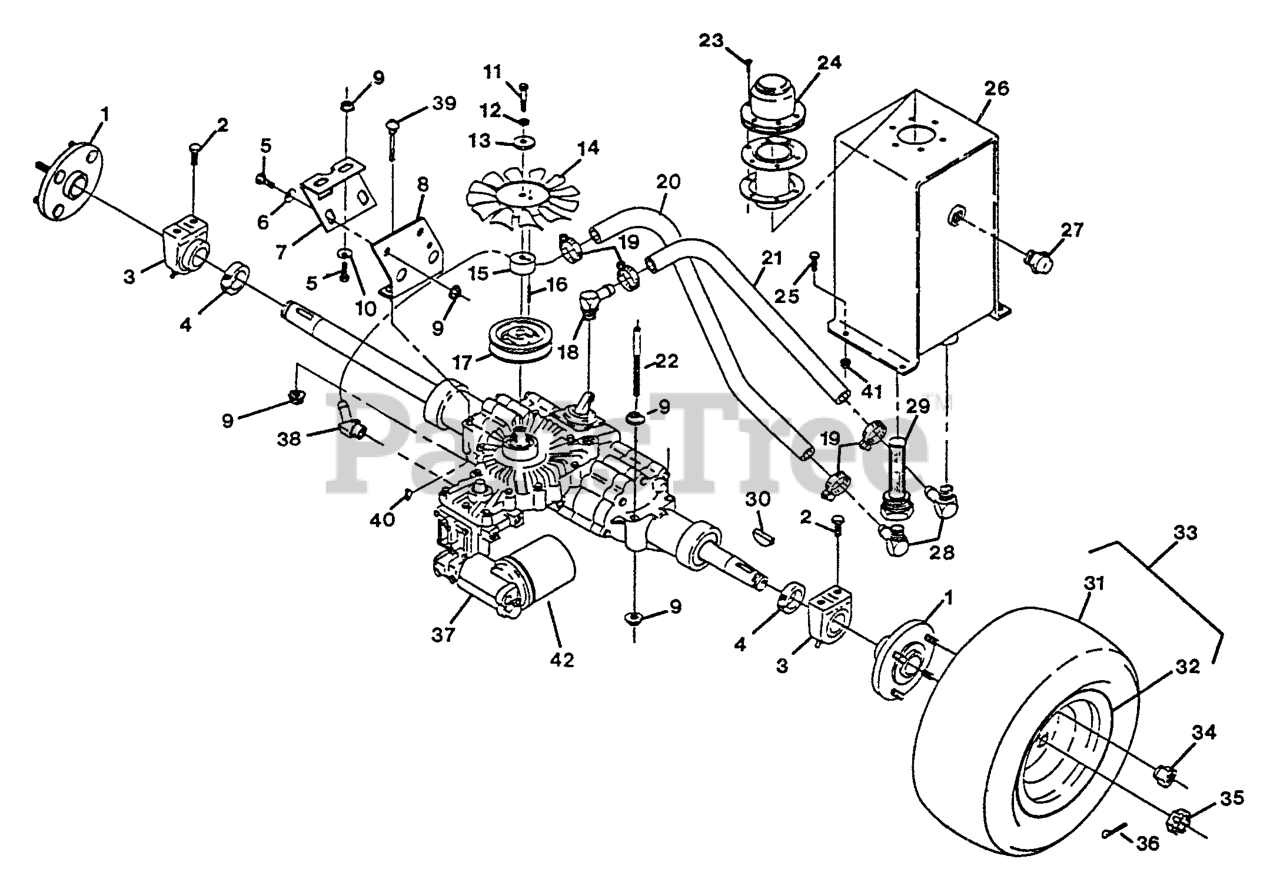

Axle and Hydraulics Parts Diagram

  • Title

1

Exmark 1-602997

112-9049
(Superseded to 112-9049)

Note: Apply Anti-Seize compound to bore.

$188.99

$

Usually ships in 3-6 days

0

2

Exmark 1-803045

3234-12
(Superseded to 3234-12)

$1.99

$

Usually ships in 3-6 days

0

3

Exmark 1-543485

BEARING,PILLOW BLOCK

Note: Apply Anti-Seize compound to bore.

$128.99

$

Usually ships in 3-6 days

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: Use on Setscrews in Bearings Not Illustrated.

$18.99

$

Usually ships in 3-6 days

0

4

Exmark 1-373021

DISCONTINUED

Note: Apply Anti-Seize compound to bore.

$

$

Not available

5

Exmark 1-800290

323-4
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

6

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

7

Exmark 1-543996-01

DISCONTINUED

$

$

Not available

8

Exmark 1-543476-01

STABILIZER,AXLE LOWER

$39.99

$

Usually ships in 3-6 days

0

9

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

10

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

11

Exmark 1-800256

321-9
(Superseded to 321-9)

$4.99

$

Usually ships in 3-6 days

0

12

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

13

Exmark 1-503033

WASHER-RETAINER, PULLEY

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 1-543359

FAN,7"OD/10BLADE

$30.99

$

Usually ships in 3-6 days

0

15

Exmark 1-543317

SPACER,FAN

$15.99

$

Usually ships in 3-6 days

0

16

Exmark 1-806328

DISCONTINUED

$0.99

$

In Stock, only 1 left!

0

17

Exmark 1-543928

DISCONTINUED

$

$

Not available

18

Exmark 1-543887

DISCONTINUED

$

$

Not available

Exmark 1-603919

O-RING

Note: Not Illustrated.

$3.49

$

In Stock, Qty 10

0

19

Exmark 1-543892

CLAMP-HOSE

$7.49

$

Usually ships in 3-6 days

0

20

Exmark 1-543930

HOSE,HYDRAULIC 16.5

$54.99

$

Usually ships in 3-6 days

0

21

Exmark 1-543931

HOSE,HYDRAULIC 8.0

$23.99

$

Usually ships in 3-6 days

0

22

Exmark 1-543054

PIN,GUIDE

$

$

Not available

23

Exmark 1-802002

SCREW

$

$

Not available

24

Exmark 1-543541

BREATHER,FILLR & CAP

$

$

Not available

25

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

26

Exmark 1-542913-03

DISCONTINUED

$

$

Not available

27

Exmark 1-543894

OIL EYE,HYDRAULIC TANK

$25.99

$

Usually ships in 3-6 days

0

28

Exmark 1-543889

DISCONTINUED

$

$

Not available

29

Exmark 1-543864

STRAINER,SUCTION

$188.99

$

Usually ships in 3-6 days

0

30

Exmark 1-807018

3257-15
(Superseded to 3257-15)

$12.99

$

Usually ships in 3-6 days

0

31

Exmark 1-543680

99-4506
(Superseded to 99-4506)

$

$

Not available

32

Exmark 1-513042

WHEEL

$

$

Not available

33

Exmark 1-543396

WHEEL AND TIRE ASM
(Superseded to 144-3664)

$190.99

$

Usually ships in 3-6 days

0

34

Exmark 1-513011

242-50
(Superseded to 242-50)

$1.99

$

In Stock, Qty 20+

0

35

Exmark 1-803040

32136-5
(Superseded to 32136-5)

$7.99

$

Usually ships in 3-6 days

0

36

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

0

37

Exmark 1-543055

DISCONTINUED

$

$

Not available

38

Exmark 1-543888

ELBOW-45DEGOR/HSEBRB

$

$

Not available

Exmark 1-603919

O-RING

Note: Not Illustrated.

$3.49

$

In Stock, Qty 10

0

39

Exmark 1-807525

BOLT,CARRSSN

$8.49

$

In Stock, only 4 left!

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: Use on Threads Not Illustrated.

$18.99

$

Usually ships in 3-6 days

0

40

Exmark 1-807006

3257-32
(Superseded to 3257-32)

$2.99

$

In Stock, Qty 11

0

41

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

42

Exmark 1-513211

109-4180
(Superseded to 109-4180)

$47.99

$

In Stock, Qty 16

0
