FMD52 - Exmark 52" Turf Tracer Hydro Walk-Behind Mower (SN: 115000 - 129999) (1996) Head/Valve/Breather - Style "A" Parts Diagram

52" Turf Tracer Hydro Walk-Behind Mower

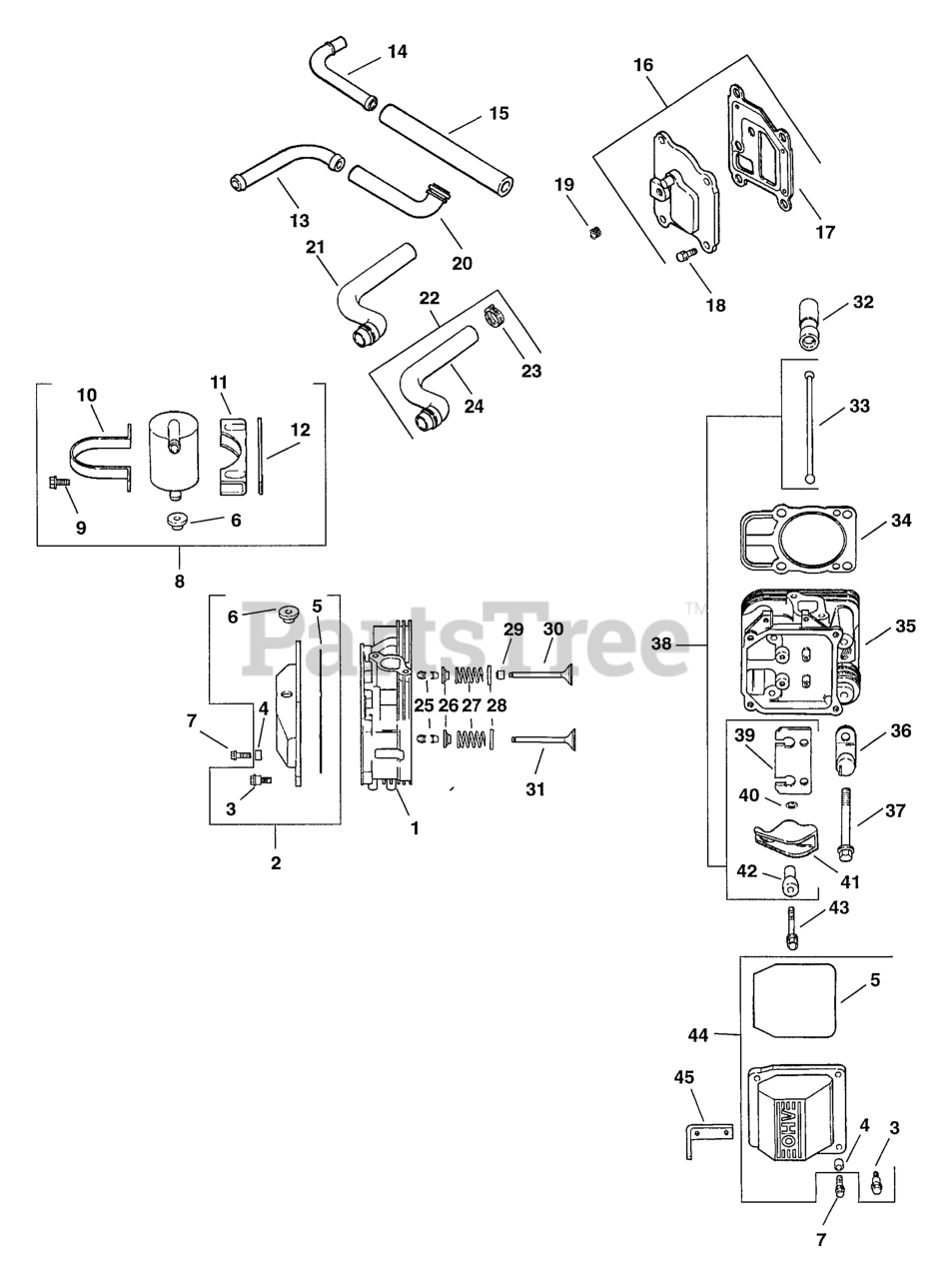

Head/Valve/Breather - Style "A" Parts Diagram

  • Title

1

Exmark 2431811-S

Head Assembly, #1 Cylinder

$

$

Currently unavailable

2

Exmark 2475576-S

Kit, Valve Cover - Breather

Note: Includes 3,4[qty 4],5,6

$

$

Currently unavailable

3

Exmark 2408632-S

Screw, Hex. Cap - Shoulder M6x1.0x23

$

$

Currently unavailable

5

Exmark 2415312

O-Ring

$

$

Currently unavailable

6

Exmark 2531302-S

Grommet, Rubber

$

$

Currently unavailable

8

Exmark 2475557-S

Kit, Breather Separator

Note: Includes 6,9-12

$

$

Currently unavailable

9

Exmark M-0545016

Screw, Hex. Flange M5x0.8x16

Note: Use Before Serial No. 241390017

$

$

Currently unavailable

9

Exmark 2408627

Screw, Hex. Cap 8-18x1/2"

Note: Use After Serial No. 2413900007

$

$

Currently unavailable

10

Exmark 2444502-S

Strap, Breather

$

$

Currently unavailable

11

Exmark 2412644-S

Bracket, Breather Separator

$

$

Currently unavailable

12

Exmark 2411212-S

Spacer

$

$

Currently unavailable

14

Exmark 2429401-S

Fitting

$

$

Currently unavailable

15

Exmark 2432603-S

Hose, Breather

$

$

Currently unavailable

16

Exmark 2403303-S

Kit, Breather Cover W/Gasket

Note: Includes 17

$

$

Currently unavailable

17

Exmark 2404123-S

Gasket, Breather

$

$

Currently unavailable

18

Exmark M-0645020

Screw, Hex. Flange M6x1.0x20

$

$

Currently unavailable

25

Exmark 1275503-S

Kit, Retainer (4)

$

$

Currently unavailable

26

Exmark 1217301-S

Cap, Valve Spring

$

$

Currently unavailable

27

Exmark 2408902-S

Spring, Valve

$

$

Currently unavailable

28

Exmark 235011-S

Retainer, Spring

$

$

Currently unavailable

30

Exmark 2401701-S

Valve, Intake (Std.)

$

$

Currently unavailable

30

Exmark 2401702-S

Valve, Intake (.25)

$

$

Currently unavailable

31

Exmark 2401601-S

Valve, Exhaust (Std.)

$

$

Currently unavailable

31

Exmark 2401602-S

Valve, Exhaust (.25)

$

$

Currently unavailable

32

Exmark 1235101

Lifter, Valve

$

$

Currently unavailable

33

Exmark 2441104

Rod, Push

Note: Use after Serial No. 2424400007

$

$

Currently unavailable

34

Exmark 2404108-S

Gasket, Cylinder Head

$

$

Currently unavailable

35

Exmark 2431812-S

Head Assembly, #2 Cylinder

$

$

Currently unavailable

37

Exmark 1208616-S

Screw, Hex. Flange M10x1.5x91

$

$

Currently unavailable

38

Exmark 2475561

Kit, Valve Train

Note: Includes 33,39-42. Use before Serial No. 2424400017; after Serial No. 2424400007 or after installation of kit, individual marked* parts may be ordered for replacement.

$

$

Currently unavailable

39

Exmark 2414609

Plate, Guide

Note: Use after Serial No. 2424400007

$

$

Currently unavailable

40

Exmark M-0631005

Washer, Plain 6 Mm

Note: Use after Serial No. 2424400007, but before Serial No. 2511700017

$

$

Currently unavailable

41

Exmark 2418603

Arm, Rocker

Note: Use after Serial No. 2424400007

$

$

Currently unavailable

42

Exmark 2419402

Pivot, Rocker Arm

Note: Use after Serial No. 2424400007, but before Serial No. 2511700017

$

$

Currently unavailable

42

Exmark 2419403

Pivot, Rocker Arm

Note: Use after Serial No. 2511700007

$

$

Currently unavailable

43

Exmark M-0640034

Screw, Hex. Flange M6x1.0x34

$

$

Currently unavailable

44

Exmark 2475574-S

Kit, Valve Cover - Plain

Note: Includes 3,4[qty 4],5,6

$

$

Currently unavailable

45

Exmark 2444501-S

Strap, Lifting

$

$

Currently unavailable
