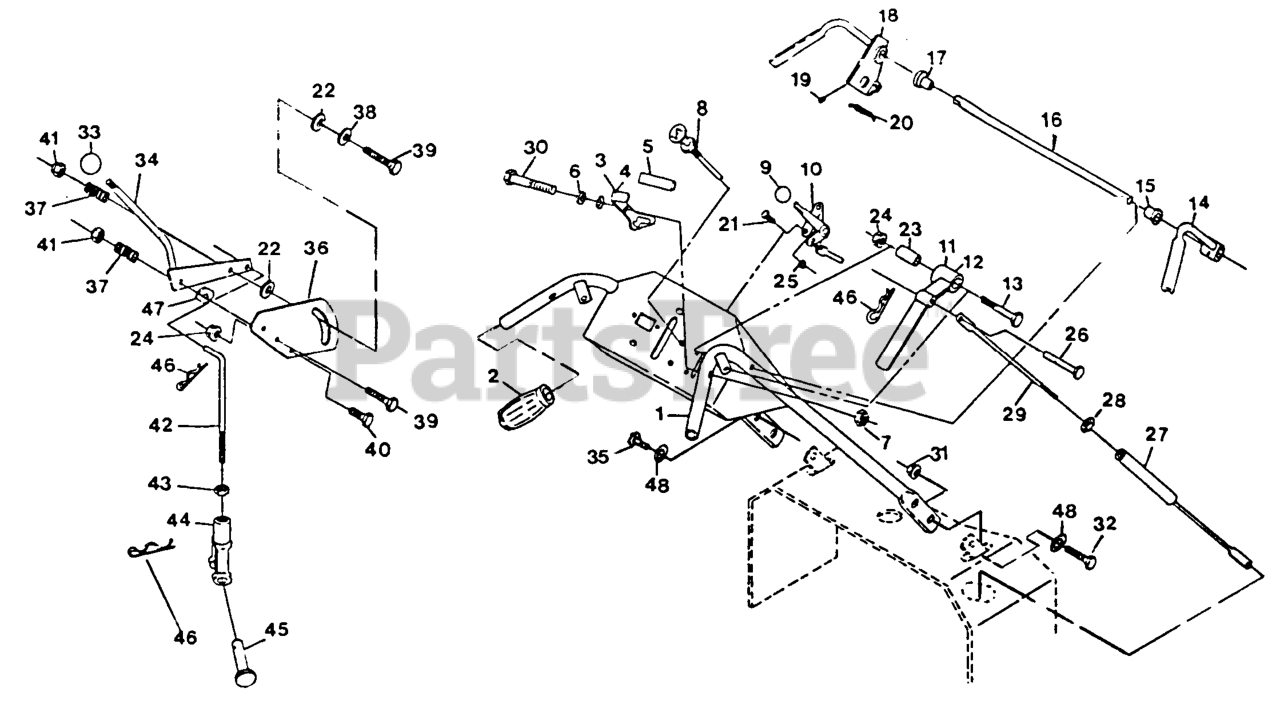

FMD52 - Exmark 52" Turf Tracer Hydro Walk-Behind Mower (SN: 102000 - 114999) (1995) Handle & Controls Group Parts Diagram

52" Turf Tracer Hydro Walk-Behind Mower

Handle & Controls Group Parts Diagram

  • Title

1

Exmark 1-602740-03

DISCONTINUED (EXMARK)
(Superseded to 103-0237)

$

$

Not available

2

Exmark 1-303097

104-9838
(Superseded to 104-9838)

$5.99

$

In Stock, Qty 16

0

3

Exmark 1-602771

LH LATCH W/GRIP

$45.99

$

Usually ships in 3-6 days

0

4

Exmark 1-602772

RH LATCH W/GRIP

$

$

Not available

5

Exmark 1-303019

GRIP-LATCH

$2.99

$

In Stock, Qty 5

0

6

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 9

0

8

Exmark 1-603336

CONTROL-CHOKE

$41.99

$

In Stock, only 2 left!

0

9

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 10

0

10

Exmark 1-603199

1-613247
(Superseded to 1-613247)

$

$

Not available

11

Exmark 1-602839

1-614194
(Superseded to 1-614194)

$104.99

$

Usually ships in 3-6 days

0

12

Exmark 1-602837

1-614193
(Superseded to 1-614193)

$104.99

$

Usually ships in 3-6 days

0

13

Exmark 1-800256

321-9
(Superseded to 321-9)

$4.99

$

In Stock, only 4 left!

0

14

Exmark 1-302138-03

1-412185-03
(Superseded to 1-412185-03)

$74.99

$

In Stock, only 4 left!

0

15

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

0

16

Exmark 1-303364

ROD,CONNECTING

$

$

Not available

17

Exmark 1-303369

BUSHING,FLANGED

$

$

Not available

18

Exmark 1-602507-03

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-840023

PRO-LOCK-RETAINING 1

Note: Use on inside bore of OPC Hub (See Operator's Manual)

$18.99

$

In Stock, only 1 left!

0

19

Exmark 1-803322

SCREW-SET

$1.49

$

In Stock, Qty 5

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: Use on setscrews

$18.99

$

Usually ships in 3-6 days

0

20

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

0

21

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

22

Exmark 1-323244

WASHER-FRICTION

$7.99

$

Usually ships in 3-6 days

0

23

Exmark 1-603749

BUSHING-LEVER, DRIVE

Note: drive lever

$7.99

$

In Stock, Qty 5

0

24

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

25

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

26

Exmark 1-613055

PIN-CLEVIS

$8.99

$

In Stock, only 2 left!

0

27

Exmark 1-612060

1-611105
(Superseded to 1-611105)

$

$

Not available

28

Exmark 1-804507

3217-7
(Superseded to 3217-7)

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-613058

DISCONTINUED

Note: brake lever Use Anti-Seize Compound on threads

$

$

Not available

30

Exmark 1-800257

321-10
(Superseded to 321-10)

$1.49

$

In Stock, Qty 20+

0

31

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

32

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

33

Exmark 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 6

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: Use on Knob Threads

$18.99

$

Usually ships in 3-6 days

0

34

Exmark 1-602733

106-2748
(Superseded to 106-2748)

Note: shifter

$102.99

$

In Stock, only 2 left!

0

35

Exmark 1-800293

323-7
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

36

Exmark 1-603730

PLATE-LEVER, SHIFTER

Note: shifter lever

$37.99

$

Usually ships in 3-6 days

0

37

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

38

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 2 left!

0

39

Exmark 1-800277

322-10
(Superseded to 322-10)

$0.99

$

In Stock, Qty 5

0

40

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

41

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

42

Exmark 1-603700

ROD,SPEED CONTROL

$20.99

$

Usually ships in 3-6 days

0

43

Exmark 1-804758

3220-2
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 20+

0

44

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

45

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

46

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

47

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

48

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0
