FMD52 - Exmark 52" Turf Tracer Hydro Walk-Behind Mower (SN: 090000 - 101999) (1994) Hydraulics Group Parts Diagram

52" Turf Tracer Hydro Walk-Behind Mower

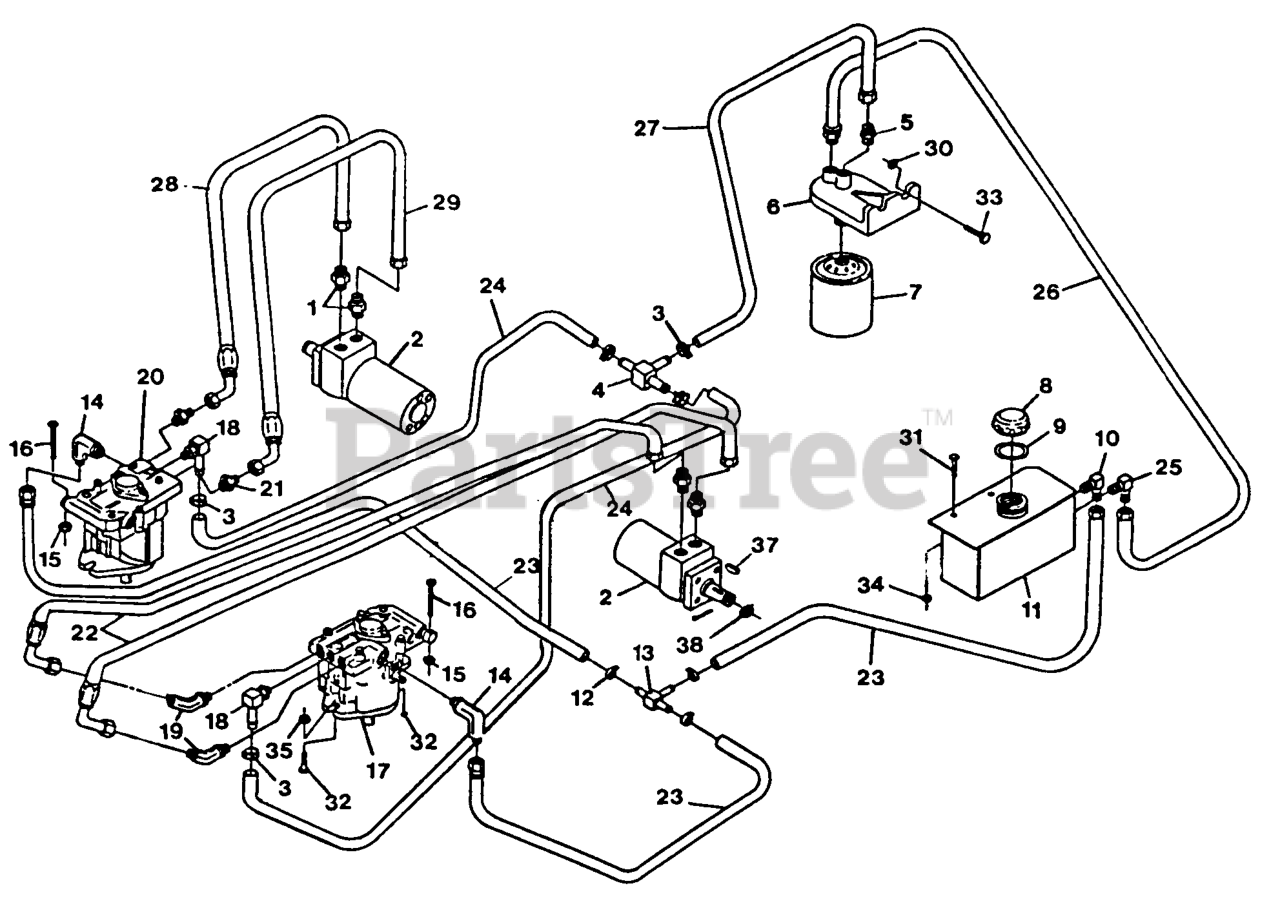

Hydraulics Group Parts Diagram

  • Title

1

Exmark 1-603991

FITTING-STRAIGHT

$21.99

$

In Stock, only 2 left!

0

Exmark 1-603919

O-RING

$3.49

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

2

Exmark 1-603718

HYD MOTOR ASM

$1206.99

$

In Stock, only 2 left!

0

3

Exmark 1-603827

CLAMP-HOSE

$2.99

$

In Stock, only 4 left!

0

4

Exmark 1-603721

FITTING-TEE, HOSE

$23.99

$

Usually ships in 3-6 days

0

5

Exmark 1-513510

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

6

Exmark 1-603720

DISCONTINUED

$

$

Not available

7

Exmark 1-513211

109-4180
(Superseded to 109-4180)

$47.99

$

In Stock, Qty 16

0

8

Exmark 1-513167

CAP

$27.99

$

In Stock, only 4 left!

0

9

Exmark 1-523103

GASKET-CAP, TANK

$7.49

$

In Stock, Qty 6

0

10

Exmark 1-603987

FITTING-ELBOW

$21.99

$

Usually ships in 3-6 days

0

11

Exmark 1-512166-03

DISCONTINUED

$

$

Not available

12

Exmark 1-603826

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 1-603722

FITTING-TEE, HOSE

$23.99

$

Usually ships in 3-6 days

0

14

Exmark 1-513840

FITTING-90 DEG

$29.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 20+

0

15

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 9

0

16

Exmark 1-801060

DISCONTINUED (EXMARK)

Note: Machine Screw

$

$

Not available

17

Exmark 1-603841

103-2766
(Superseded to 103-2766)

$1568.99

$

Usually ships in 3-6 days

0

18

Exmark 1-603989

FITTING

$36.99

$

Usually ships in 3-6 days

0

Exmark 1-603923

O-RING

$2.99

$

Usually ships in 3-6 days

0

19

Exmark 1-523221

FITTING-HYD, 45 DEG

$49.99

$

Usually ships in 3-6 days

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

20

Exmark 1-603840

1-613042
(Superseded to 1-613042)

$1387.99

$

Usually ships in 3-6 days

0

21

Exmark 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-603981

HOSE,HIGH PRESSURE

$97.99

$

Usually ships in 3-6 days

0

23

Exmark 1-602750

ASM,HOSE CASE DRAIN

$46.99

$

Usually ships in 3-6 days

0

24

Exmark 1-603986

HOSE,LO PRESSURE

$75.99

$

Usually ships in 3-6 days

0

25

Exmark 1-603988

FITTING-ELBOW

$22.99

$

Usually ships in 3-6 days

0

26

Exmark 1-602985

ASM,HOSE LO PRESSURE

$57.99

$

In Stock, only 2 left!

0

27

Exmark 1-602754

ASM,HOSE CHARGE LINE

$45.99

$

Usually ships in 3-6 days

0

28

Exmark 1-613034

119-7827
(Superseded to 119-7827)

$78.99

$

In Stock, only 1 left!

0

29

Exmark 1-323241

HOSE-PRESSURE, HIGH

$86.99

$

Usually ships in 3-6 days

0

30

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

31

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

32

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

33

Exmark 1-800272

322-4
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

34

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

35

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-809068

DISCONTINUED (EXMARK)

$

$

Not available

37

Exmark 1-807019

KEY-WOODRUFF

$18.99

$

In Stock, only 2 left!

0

38

Exmark 1-803040

32136-5
(Superseded to 32136-5)

$7.99

$

Usually ships in 3-6 days

0
