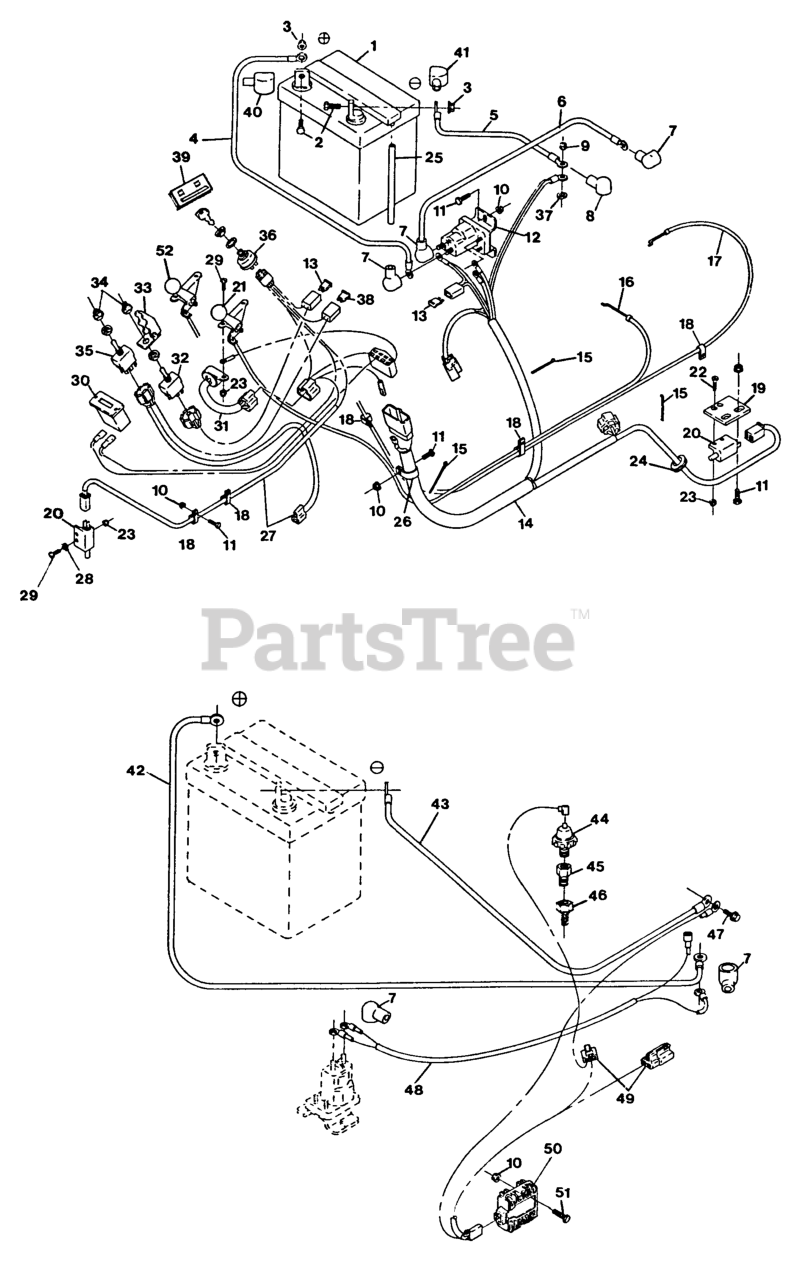

FMD52 - Exmark 52" Turf Ranger Front Mount Mower (SN: 070000 - 079999) (1992) Kohler & 17 HP Kawasaki Electrical Parts Diagram

52" Turf Ranger Front Mount Mower

Kohler & 17 HP Kawasaki Electrical Parts Diagram

  • Title

1

Exmark 1-603479

Battery, 12v Manifold

$

$

Not available

2

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

3

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

4

Exmark 1-543766

WIRE,BATTERY POSITIVE

Note: (Kohler)

$

$

Not available

5

Exmark 1-513056

DISCONTINUED

Note: (Kohler)

$

$

Not available

6

Exmark 1-513582

109-7628
(Superseded to 109-7628)

Note: (Kohler)

$30.99

$

In Stock, only 1 left!

0

7

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

8

Exmark 1-543392

DISCONTINUED (EXMARK)

$

$

Not available

9

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

10

Exmark 1-809012

32128-33
(Superseded to 32128-33)

Note: (Kohler)

$0.99

$

In Stock, Qty 20+

0

1/4-20 Whizlock Nut

Note: (Kaw.)

$

$

Not available

11

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-513075

117-1197
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

13

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

14

Exmark 1-543769

DISCONTINUED

$

$

Not available

15

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 1-543697

1-633696
(Superseded to 1-633696)

Note: (Kohler)

$62.99

$

In Stock, only 1 left!

0

Exmark 1-323139

DISCONTINUED

Note: (Koh.)

$

$

Not available

17

Exmark 1-543696

DISCONTINUED

Note: (Kohler)

$

$

Not available

18

Exmark 1-543793

DISCONTINUED (EXMARK)

$

$

Not available

19

Exmark 1-323128

BRACKET,SAFETY SWITCH

$

$

Not available

20

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

21

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 17

0

22

Exmark 1-803017

32108-55
(Superseded to 32108-55)

$1.99

$

Usually ships in 3-6 days

0

23

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

24

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

25

Exmark 1-809040

DISCONTINUED (EXMARK)

$

$

Not available

26

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

27

Exmark 1-543768

DISCONTINUED

$

$

Not available

28

Exmark 1-805252

3256-14
(Superseded to 3256-14)

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-801039

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

30

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

31

Exmark 1-513579

1-611115
(Superseded to 1-611115)

Note: (Kohler)

$278.99

$

Usually ships in 3-6 days

0

Exmark 1-603625

MODULE-SAFETY INTERLOCK

Note: (Kaw.)

$109.99

$

In Stock, only 1 left!

0

32

Exmark 1-543387

1-551075
(Superseded to 1-551075)

$140.99

$

Usually ships in 3-6 days

0

33

Exmark 1-543388

DISCONTINUED

$

$

Not available

34

Exmark 1-543386

BOOT-SWITCH, TOGGLE

$30.99

$

Usually ships in 3-6 days

0

35

Exmark 1-543385

SWITCH-TOGGLE, DPDT

$142.99

$

Usually ships in 3-6 days

0

36

Exmark 1-513194

DISCONTINUED

$

$

Not available

37

Exmark 1-805506

DISCONTINUED

$

$

Not available

38

Exmark 1-816003

FUSE-BLADE TYPE, 30 AMP

$5.99

$

Usually ships in 3-6 days

0

39

Exmark 1-543974-03

DISCONTINUED (EXMARK)

Note: (Kohler)

$

$

Not available

40

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

41

Exmark 1-543390

INSULATOR, BATTERY -

$8.49

$

Usually ships in 3-6 days

0

42

Exmark 1-543994

DISCONTINUED

Note: (Kaw.)

$

$

Not available

43

Exmark 1-543767

WIRE-GROUND

Note: (Kawasaki)

$22.99

$

In Stock, only 2 left!

0

44

Exmark 1-603645

SWITCH-OIL PRESSURE

Note: (Kaw.)

$123.99

$

Usually ships in 3-6 days

0

45

Exmark 1-603626

DISCONTINUED (EXMARK)

Note: (Kaw.)

$

$

Not available

46

Exmark 1-603635

DISCONTINUED (EXMARK)

Note: (Kaw.)

$

$

Not available

47

Exmark 1-809026

M8 X 1.25 X 16 Mm Hh Capscrew

Note: (Kawasaki)

$

$

Not available

48

Exmark 1-543971

DISCONTINUED (EXMARK)

Note: (Kaw.)

$

$

Not available

49

Exmark 542992-P

Note: 17 HP Kawasaki

$

$

Currently unavailable

50

Voltage Regulator

Note: Kaw. No. 21066-2056

$

$

Not available

51

Exmark 1-800254

321-6
(Superseded to 321-6)

Note: (Kaw.)

$0.99

$

In Stock, Qty 20+

0

52

Exmark 1-513593

KNOB-BALL, BLACK

$5.49

$

In Stock, Qty 9

0
