FM 7300 (7084320) - Snapper 73" PTO Driven Finishing Mower Spring-Loaded Idler Group Parts Diagram

73" PTO Driven Finishing Mower

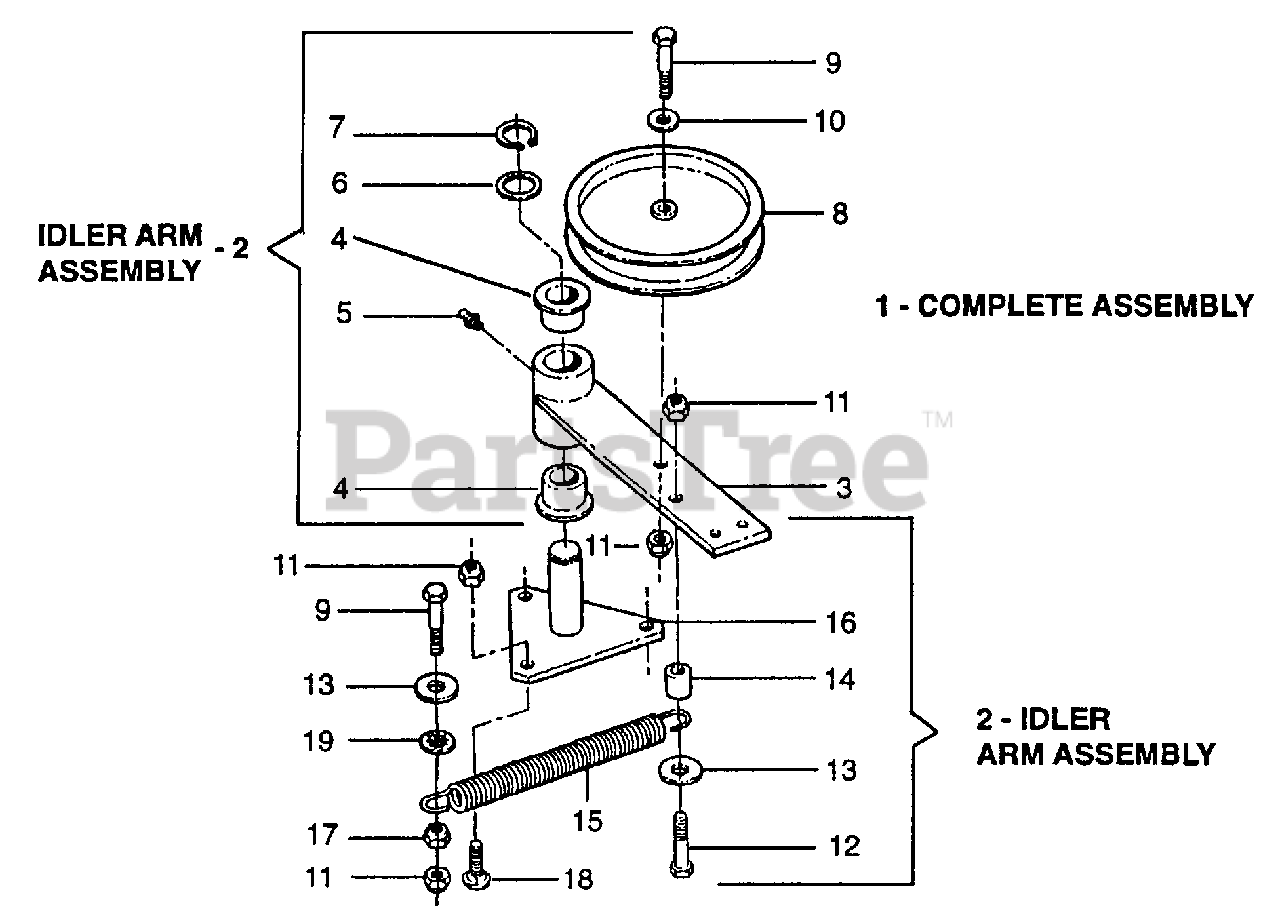

Spring-Loaded Idler Group Parts Diagram

  • Title

1

ASSEMBLY, Spring-Loaded Idler Group

Note: (Incl. Items 1 thru 18)

$

$

Not available

2

ASSEMBLY, Idler Arm

Note: (Incl. Items 3 thru 14)

$

$

Not available

3

Snapper Pro 7042619

ARM, Idler (Weldment)
(Superseded to 7042619YP)

$253.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7023556

BUSHING
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

5

Snapper Pro 7076998

FITTING, Lube 1/4 - 28 Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

6

Snapper Pro 7032031

WASHER, 1/32 I.D. x 1-1/4 O.D. Flat

$5.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7012709

E-RING, 1"
(Superseded to 703993)

$3.49

$

In Stock, Qty 15

0

8

Snapper Pro 7035789

PULLEY, Idler 5-1/2" O.D.
(Superseded to 7035789YP)

$59.99

$

In Stock, Qty 5

0

9

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

Note: Was 91300

$3.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

12

Snapper Pro 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, Grade 5

$

$

Not available

13

Snapper Pro 7091331

WASHER, 13/32 x 1-1/2 Yellow Zinc

$

$

Not available

14

Snapper Pro 7035858

SPACER, 1/2" I.D. x 3/4" O.D.

$29.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7035667

SPRING, Extension
(Superseded to 7035667YP)

$32.99

$

In Stock, only 1 left!

0

16

Snapper Pro 7041295

PIVOT, Idler (Weldment)
(Superseded to 7041295YP)

$44.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

18

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Carriage
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

19

Snapper Pro 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

In Stock, only 1 left!

0
