FM 7300 (7084320) - Snapper 73" PTO Driven Finishing Mower Spindle Group Parts Diagram

73" PTO Driven Finishing Mower

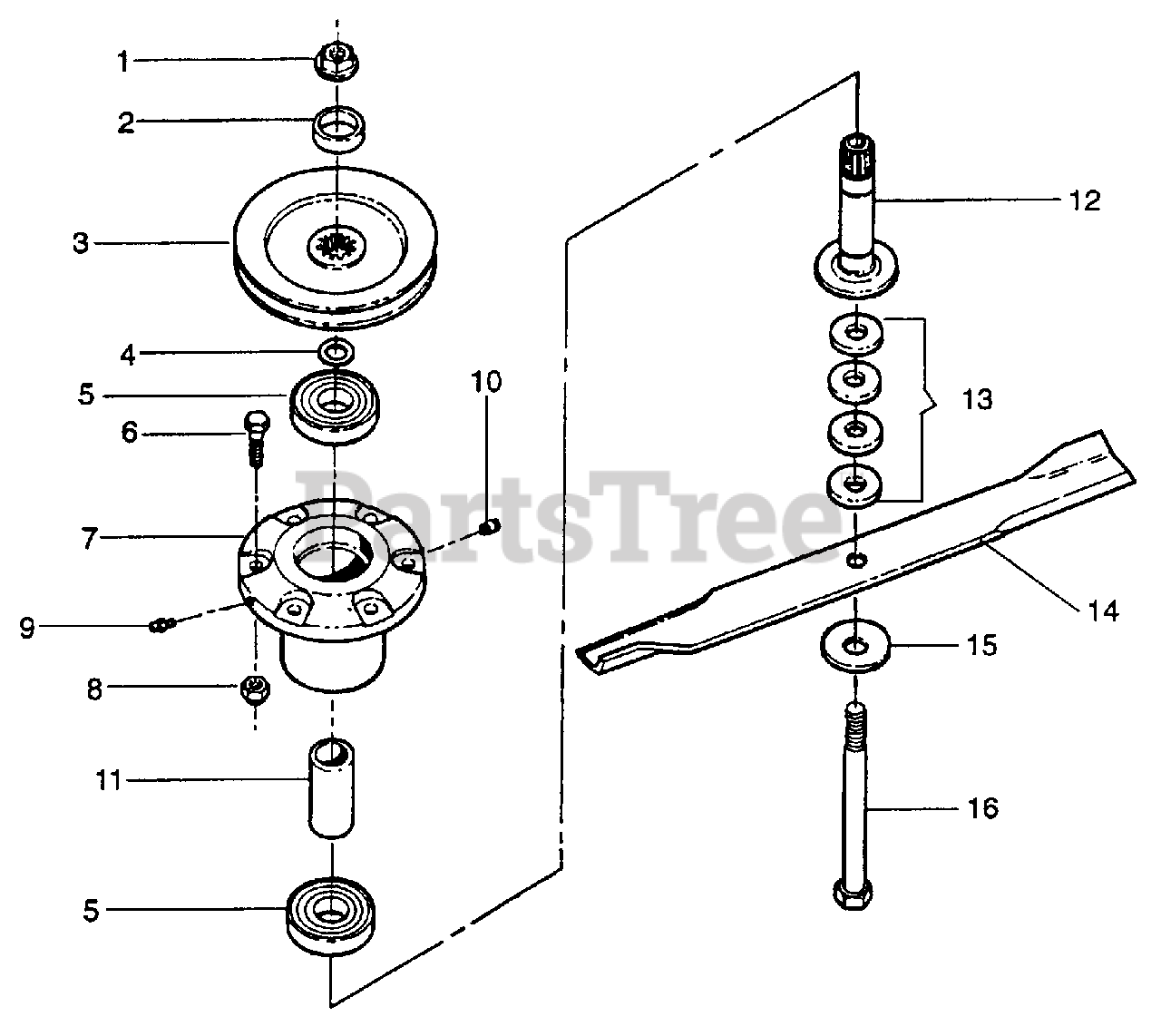

Spindle Group Parts Diagram

  • Title

1

Snapper Pro 7063237

NUT, 5/8- 18 Hex Flange Lock, Grade 5
(Superseded to 7063237YP)

Note: Was 91736

$4.49

$

In Stock, Qty 20+

0

2

Snapper Pro 7029270

WASHER, Spindle
(Superseded to 7029270YP)

$25.99

$

In Stock, only 2 left!

0

3

Snapper Pro 7029249

PULLEY, 5-3/4" O.D.
(Superseded to 7029249YP)

$76.99

$

In Stock, only 1 left!

0

4

Snapper Pro 7029274

SNAP RING, Spindle Shaft
(Superseded to 7029274YP)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 7029422

BEARING, Sealed
(Superseded to 7029422YP)

$

$

Not available

6

Snapper Pro 7029302

BOLT, 3/8 - 16 x 1-1/4" Rib Necked
(Superseded to 7029302YP)

$4.49

$

In Stock, Qty 8

0

7

Snapper Pro 7054017

HOUSING, Cutter
(Superseded to 7058237YP)

Note: (Incl. Items 6, 7 & 10)

$

$

Not available

8

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

9

Snapper Pro 7076998

LUBE FITTING, 1/4-28 Thread Forming
(Superseded to 703153)

Note: Was 29275

$3.99

$

In Stock, Qty 12

0

10

Snapper Pro 7029384

VENT, Spindle
(Superseded to 7029384YP)

$13.99

$

In Stock, only 3 left!

0

11

Snapper Pro 7029254

SPACER, Bearing
(Superseded to 7029254YP)

$20.99

$

In Stock, Qty 5

0

12

Snapper Pro 7059311

SHAFT, Spindle
(Superseded to 7059311YP)

Note: Was 29253

$

$

Not available

13

Snapper Pro 7029271

SPACER, Blade
(Superseded to 7029271YP)

$13.99

$

In Stock, only 1 left!

0

14

Snapper Pro 7046625

BLADE, 25 Inch
(Superseded to 7046625BMYP)

$33.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7016440

WASHER, Beveled
(Superseded to 7016440SM)

$7.99

$

In Stock, Qty 20+

0

16

Snapper Pro 7063234

BOLT, 5/8 - 7-1/2" Hex Head Cap, Grade 5
(Superseded to 7063234YP)

Note: Was 29256 (Now 63234 + 63237)

$12.99

$

In Stock, Qty 5

0

Snapper Pro 7054011

ASSEMBLY, Spindle
(Superseded to 7054011YP)

Note: (Incl. Items 4, 5, 7, 9, 11 8 12)

$

$

Not available
