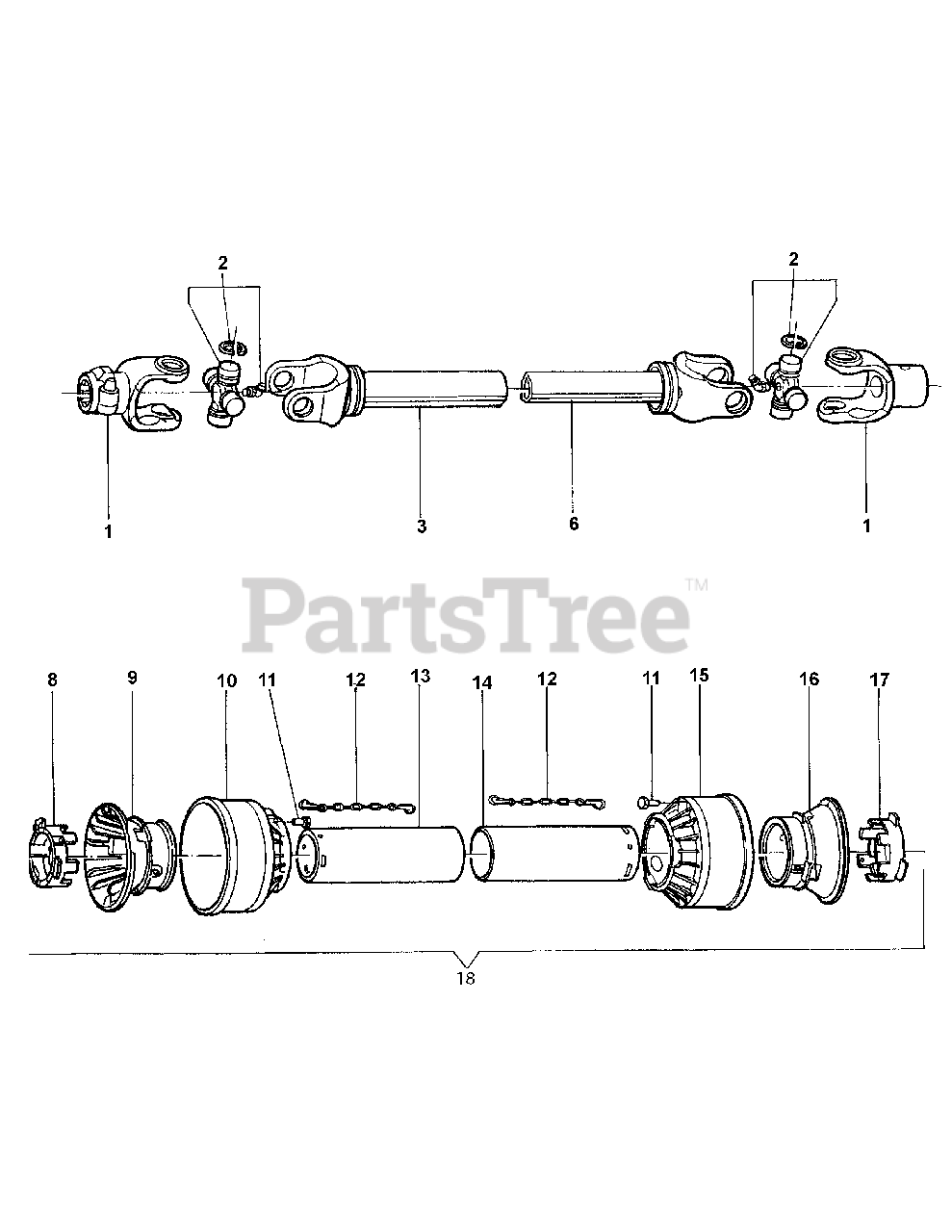

FM 60 (59A40032727) - Cub Cadet Yanmar Tractor 60" Finishing Mower Driveline Version 1 Parts Diagram

Tractor 60" Finishing Mower

Driveline Version 1 Parts Diagram

  • Title
1

Cub Cadet YS-022-001E

Yoke Assembly

$

$

Not available

2

Cub Cadet YS-012-130E

Cross Assembly
(Superseded to BF-012-130E)

$92.99

$

Usually ships in 3-6 days

0

3

Cub Cadet YS-503-350B

Outer Tube w/Yoke 4'

$

$

Not available

3

Cub Cadet YS-503-339B

Outer Tube w/Yoke 5'
(Superseded to BF-503-339B)

$

$

Not available

3

Cub Cadet YS-503-345B

Outer Tube w/Yoke 6'

$

$

Not available

4

Cub Cadet YS-503-318B

Outer Fastener Ring

$

$

Not available

5

Cub Cadet YS-503-319B

Inner Fastener Ring

$

$

Not available

6

Cub Cadet YS-503-351B

Inner Tube w/Yoke 4'

$

$

Not available

6

Cub Cadet YS-503-340B

Inner Tube w/Yoke 5'
(Superseded to BF-503-340B)

$

$

Not available

6

Cub Cadet YS-503-346B

Inner Tube w/Yoke 6'

$

$

Not available

8

Cub Cadet YS-503-322B

Tube Bearing Outer
(Superseded to BF-503-322B)

$

$

Not available

9

Cub Cadet YS-503-323B

Outer Tube Rigid Cone
(Superseded to BF-503-323B)

$

$

Not available

10

Cub Cadet YS-503-341B

Soft Cone
(Superseded to BF-503-341B)

$

$

Not available

11

Cub Cadet YS-503-325B

Pin for Stop Rotation
(Superseded to BF-503-325B)

$

$

Not available

12

Cub Cadet YS-502-889B

Anit-Rotation Chain
(Superseded to BF-502-889B)

$

$

Not available

13

Cub Cadet YS-503-352B

Outer Tube 4'

$

$

Not available

13

Cub Cadet YS-503-342B

Outer Tube 5'
(Superseded to BF-503-342B)

$

$

Not available

13

Cub Cadet YS-503-347B

Outer Tube 6'

$

$

Not available

14

Cub Cadet YS-503-353B

Inner Tube 4'

$

$

Not available

14

Cub Cadet YS-503-343B

Inner Tube 5'
(Superseded to BF-503-343B)

$

$

Not available

14

Cub Cadet YS-503-348B

Inner Tube 6'

$

$

Not available

15

Cub Cadet YS-503-324B

Soft Cone
(Superseded to BF-503-324B)

$

$

Not available

16

Cub Cadet YS-503-328B

Inner Tube Rigid Cone
(Superseded to BF-503-328B)

$

$

Not available

17

Cub Cadet YS-503-329B

Tube Bearing Inner
(Superseded to BF-503-329B)

$

$

Not available

17

Cub Cadet YS-503-354B

Shield Complete 4'

$

$

Not available

17

Cub Cadet YS-503-344B

Shield Complete 5'
(Superseded to BF-503-344B)

$

$

Not available

17

Cub Cadet YS-503-349B

Shield Complete 6'

$

$

Not available

18

Cub Cadet YS-948-814B

PTO Complete 4'

$

$

Not available

18

Cub Cadet YS-948-815B

PTO Complete 5'
(Superseded to BF-948-815B)

$

$

Not available

18

Cub Cadet YS-948-816B

PTO Complete 6'

$

$

Not available
