FM (5901453) - Ferris FM Series 48" Walk-Behind Flail Mower, 26hp Briggs & Stratton Handle Bar / Control Group Parts Diagram

FM Series 48" Walk-Behind Flail Mower, 26hp Briggs & Stratton

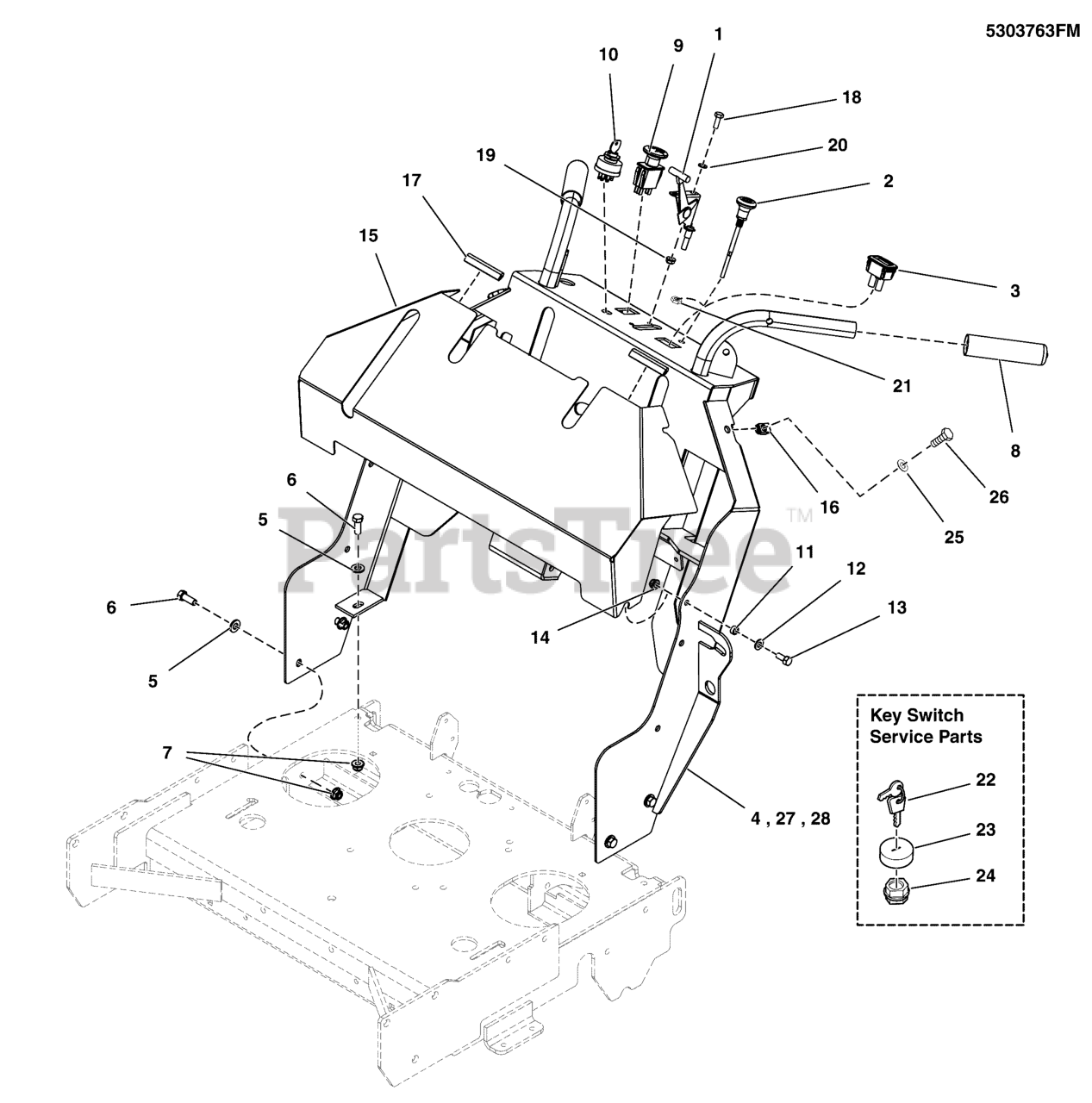

Handle Bar / Control Group Parts Diagram

  • Title

1

Ferris 5104657

CABLE, THROTTLE, 43" DETENTED
(Superseded to 5104657FS)

Note: (Was 5102163)

$36.99

$

Usually ships in 2-12 days

0

2

Ferris 5047779

CABLE, CHOKE CONTROL, 51 (Z)
(Superseded to 5047779SM)

Note: (Briggs & Stratton Carbureted Models)

$52.99

$

In Stock, only 4 left!

0

3

* HOUR METER, ASSEMBLE

$

$

Not available

4

Ferris 5413418B

** WELD, HANDLE BARS, F/SW35 - RED

Note: (S/N: 2017118253 & Below)

$911.99

$

Usually ships in 2-12 days

0

5

Ferris 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

6

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

7

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Ferris 5104659

GRIP, FOAM, .940" X 4.62" X .187"
(Superseded to 5104659FS)

$7.99

$

Usually ships in 2-12 days

0

9

Ferris 5104697

PTO SWITCH, MOMENTARY, SMALL KNOB
(Superseded to 5104697FS)

$30.99

$

In Stock, Qty 14

0

10

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

11

Ferris 5102463

SPACER, .33 X .50 X .25, CZ
(Superseded to 5102463YP)

$5.49

$

In Stock, only 4 left!

0

12

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

13

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

14

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5600951

ASSM, HB GUARD W/DECALS, FW35 - CE

$177.99

$

Usually ships in 2-12 days

0

16

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

17

Ferris 5050853X3

BLACK BODY MOLDING, 3" LONG
(Superseded to 5050853X3FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

19

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

20

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

21

Ferris 5025309

NUT, 3/8-24 HEX JAM
(Superseded to 5025309SM)

Note: (SV)

$2.99

$

Usually ships in 2-12 days

0

22

Ferris 5022789

KEY, IGNITION MOLDED SET

Note: (SV)

$

$

Currently unavailable

23

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (SV)

$4.49

$

In Stock, only 1 left!

0

24

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (SV)

$3.49

$

In Stock, only 1 left!

0

25

Ferris 5025155

WASHER, 5/16" SAE

Note: (CE Models)

$

$

Currently unavailable

26

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

Note: (CE Models)

$3.49

$

In Stock, Qty 16

0

27

Ferris 5413924B

** WELD, HANDLE BARS, F/SW35 - RED

Note: (S/N: 2017118254 - 2017170234)

$940.99

$

Usually ships in 2-12 days

0

28

Ferris 5413682B

** WELD, HANDLEBARS, W35, STD - RED
(Superseded to 5413682BFS)

Note: (S/N: 2017170235 & Above)

$1043.99

$

Usually ships in 2-12 days

0
