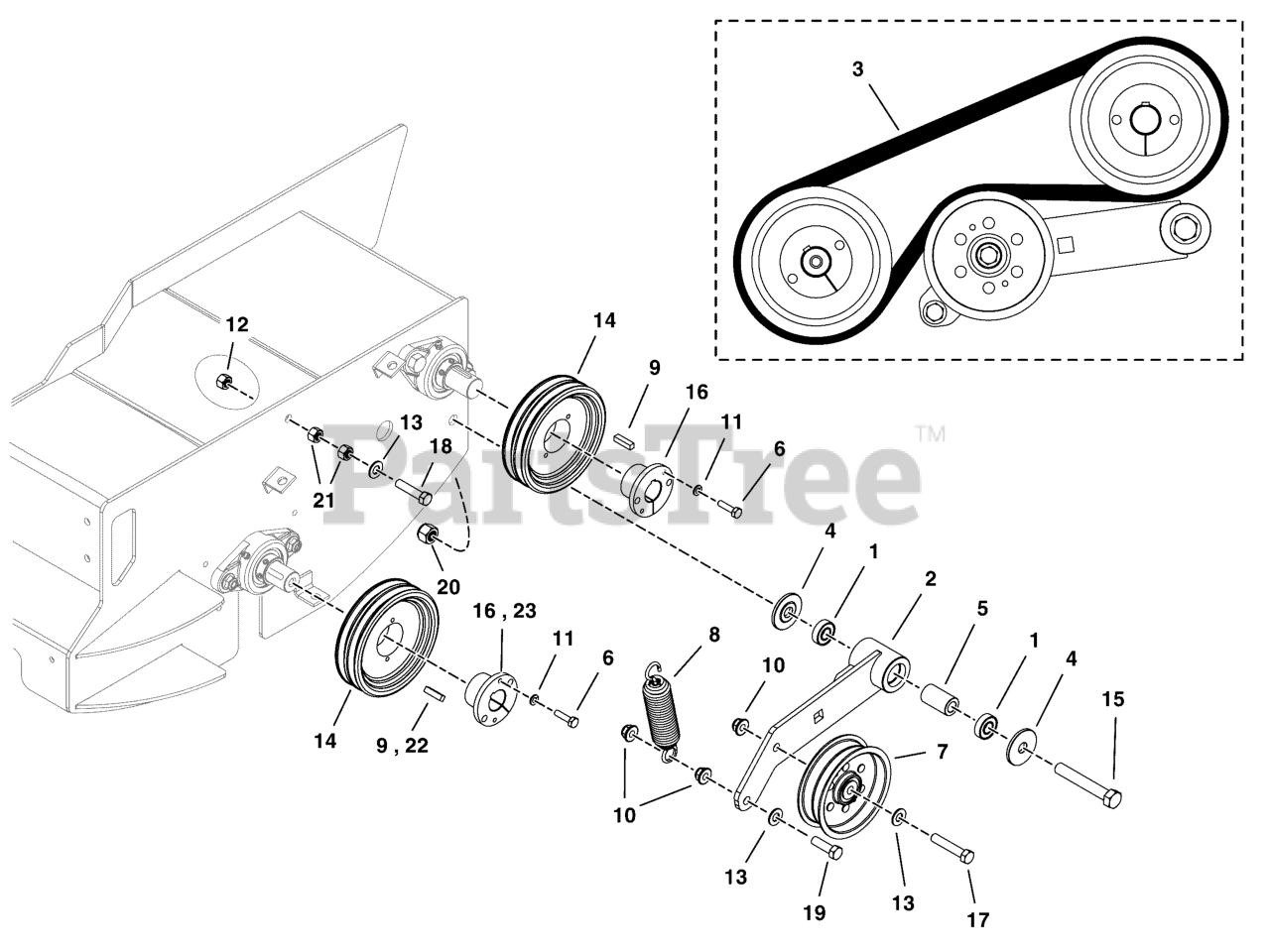

FM (5901453) - Ferris FM Series 48" Walk-Behind Flail Mower, 26hp Briggs & Stratton Belts, Pulleys & Idler Group Parts Diagram

FM Series 48" Walk-Behind Flail Mower, 26hp Briggs & Stratton

Belts, Pulleys & Idler Group Parts Diagram

  • Title

1

Ferris 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 12

0

2

Ferris 5408717B

WELD, IDLER ARM, 8.50, BB - RED
(Superseded to 5408717BFS)

$94.99

$

Usually ships in 2-12 days

0

3

Ferris 5103330

BELT, DOUBLE A BANDED, 43"EL, RAW EDGE
(Superseded to 5103330FS)

$80.99

$

Usually ships in 2-12 days

0

4

Ferris 5103262

SPACER, IDLER ARM, 1/2"
(Superseded to 5103262YP)

$7.99

$

In Stock, Qty 15

0

5

Ferris 5103812

SPACER, .52 X .84 X 1.53, PM
(Superseded to 5103812YP)

$7.99

$

In Stock, Qty 7

0

6

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

7

Ferris 5102276

PULLEY, IDLER, DOUBLE FLGED, 4IN
(Superseded to 5102276FS)

$51.99

$

Usually ships in 2-12 days

0

8

Ferris 5100633

SPRING-EXT, 1.25 ODX5.70LGX.142WR, BLK
(Superseded to 5100633YP)

$34.99

$

Usually ships in 2-12 days

0

9

Ferris 5025584

KEY, 1/4" SQR. X 1-1/4, RD ENDS
(Superseded to 5025584FS)

Note: (Qty: 2 - S/N: 4000223355 and below)

$9.49

$

Usually ships in 2-12 days

0

10

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

11

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 2 left!

0

12

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

13

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5022908

PULLEY, GEARBOX INPUT
(Superseded to 5022908FS)

$186.99

$

Usually ships in 2-12 days

0

15

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

16

Ferris 5020819

BUSHING, TAPERED HUB
(Superseded to 5020819SM)

Note: (Qty: 2 - S/N: 4000223355 and below)

$26.99

$

In Stock, Qty 5

0

17

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

18

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

20

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

21

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

22

Ferris 5025663

KEY, 8MM X 8MM X 25MM

Note: (S/N: 4000223356 and above)

$

$

Currently unavailable

23

Ferris 5107776

BUSHING, TAPER LOCK, 25MM

Note: (S/N: 4000223356 and above)

$

$

Currently unavailable
