FM (5900520) - Ferris FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki Wheel & Tire Group Parts Diagram

FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki

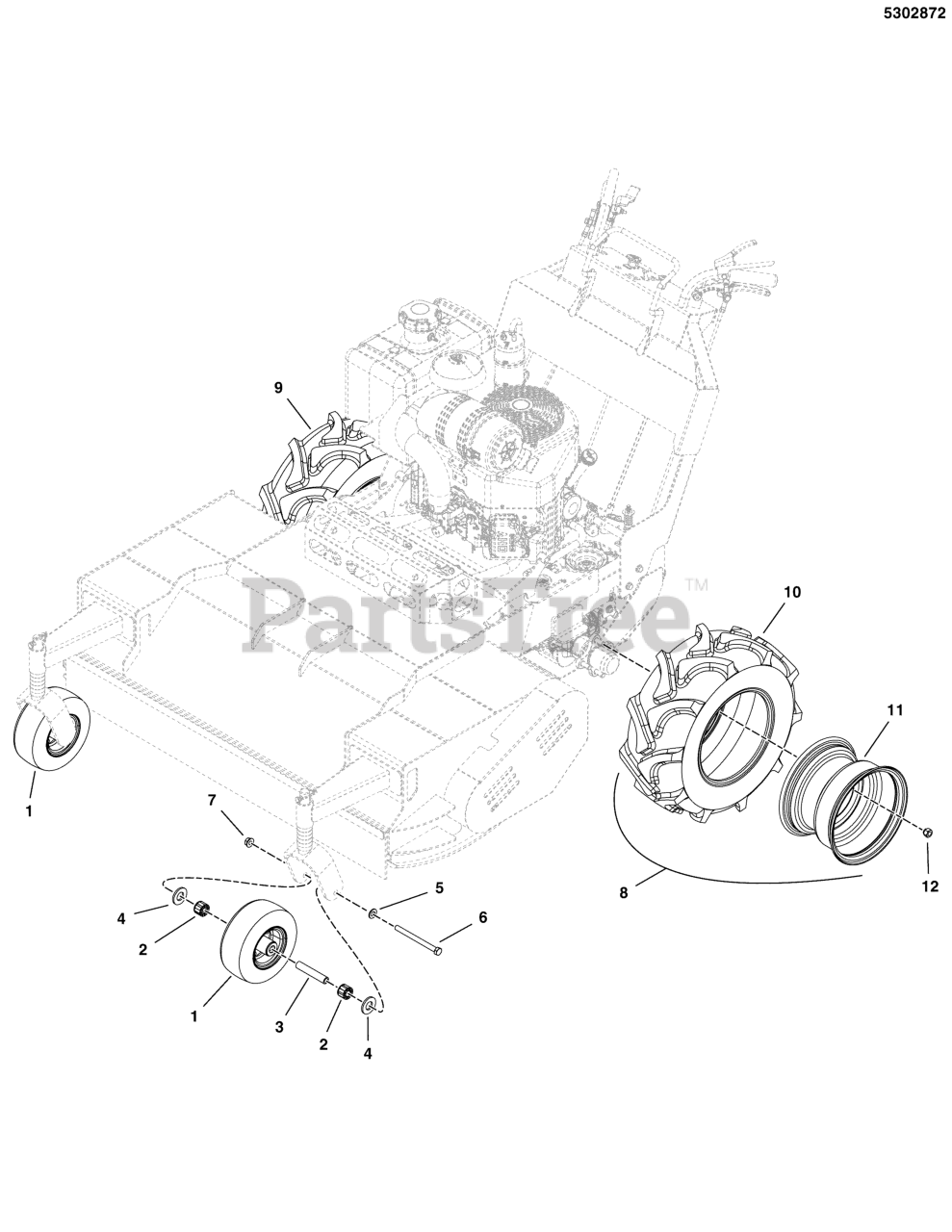

Wheel & Tire Group Parts Diagram

  • Title

1

Ferris 5100790

FLAT FREE TIRE ASSY, 9.00 X 3.50 - 4.00
(Superseded to 5100790FS)

$116.99

$

In Stock, only 2 left!

0

2

Ferris 5022579

BEARING

Note: (SV)

$13.99

$

Usually ships in 2-12 days

0

3

Ferris 5041657

AXLE, CASTER WHEEL
(Superseded to 5041657SM)

Note: (SV)

$13.99

$

Usually ships in 2-12 days

0

4

Ferris 5021043

RETAINER, BEARING

Note: (SV)

$6.99

$

Usually ships in 2-12 days

0

5

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

6

Ferris 5025017X48

BOLT, 1/2-13 X 6 GD5 YZ
(Superseded to 5025017X48SM)

$6.49

$

Usually ships in 2-12 days

0

7

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

8

Ferris 5103328

TIRE ASM, 20X8.00-10, LH, LUG BAR
(Superseded to 5103328FS)

$474.99

$

Usually ships in 2-12 days

0

9

Ferris 5103327

TIRE ASM, 20X8.00-10, RH, LUG BAR
(Superseded to 5103327FS)

$474.99

$

Usually ships in 2-12 days

0

10

Ferris 5103327X1

TIRE, 20 X 8.00-10, LUG BAR

Note: (SV)

$234.99

$

Usually ships in 2-12 days

0

11

Ferris 5102329X2

WHEEL, 10X7.00 4/4 SOLID F237 2.625 OS

Note: (SV)

$

$

Currently unavailable

12

Ferris 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0
