FM (5900520) - Ferris FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki Rear Drive Group Parts Diagram

FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki

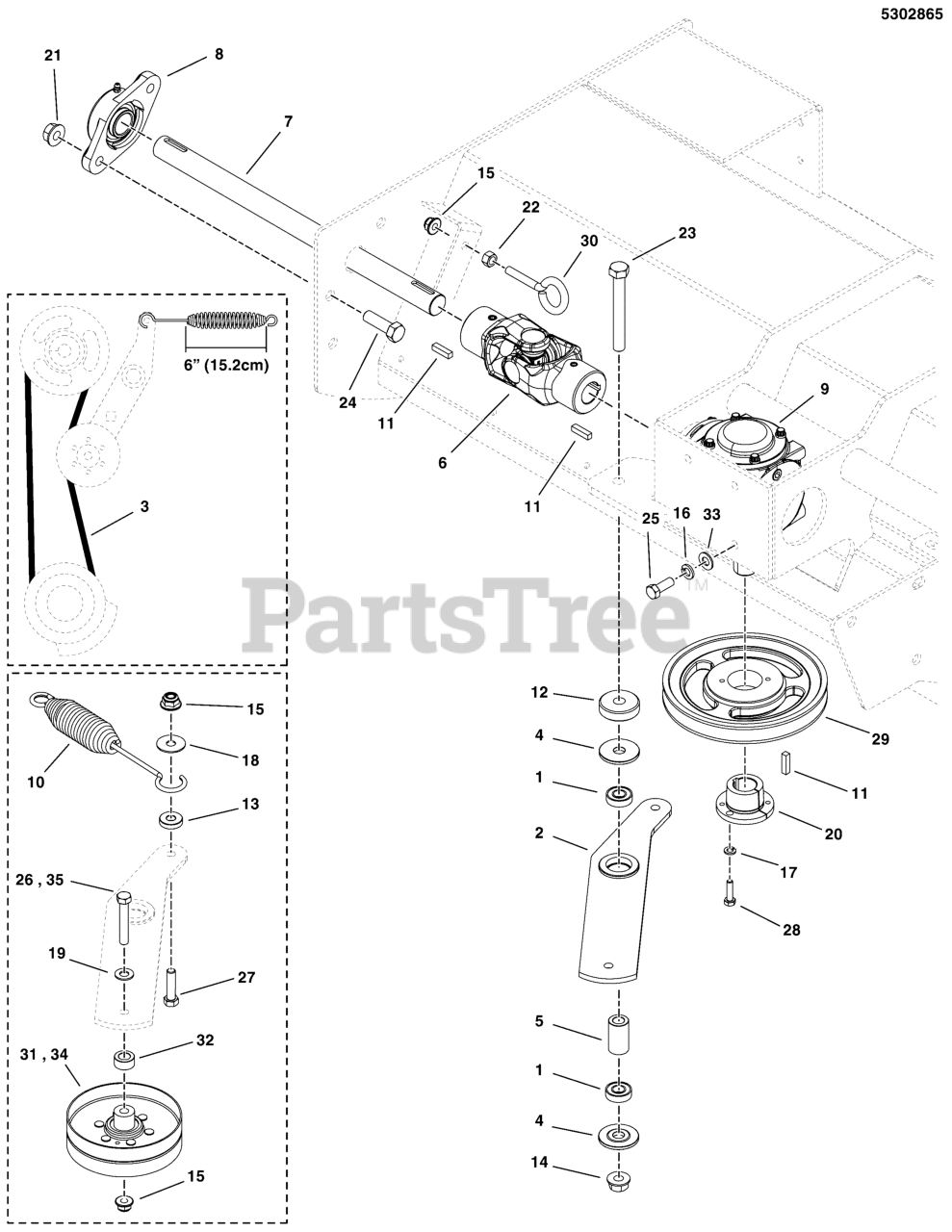

Rear Drive Group Parts Diagram

  • Title

1

Ferris 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 18

0

2

Ferris 5408656B

WELD, IDLER ARM, FLAIL - RED
(Superseded to 5408656BFS)

$130.99

$

Usually ships in 2-12 days

0

3

Ferris 5103329

BELT, B-SEC, 63.3" EL, LGE ARAMID WRPD
(Superseded to 5103329FS)

$64.99

$

Usually ships in 2-12 days

0

4

Ferris 5103262

SPACER, IDLER ARM, 1/2"
(Superseded to 5103262YP)

$7.99

$

In Stock, Qty 15

0

5

Ferris 5103812

SPACER, .52 X .84 X 1.53, PM
(Superseded to 5103812YP)

$7.99

$

In Stock, Qty 7

0

6

Ferris 5103240

UNIVERSAL JOINT ASM, 1"
(Superseded to 5103240FS)

$248.99

$

Usually ships in 2-12 days

0

7

Ferris 5103233

SHAFT, 1" DIA X 18.19
(Superseded to 5103233FS)

$86.99

$

In Stock, only 2 left!

0

8

Ferris 5103201

BEARING, 2 BOLT FLANGE, 1", CAST
(Superseded to 5103201FS)

$67.99

$

Usually ships in 2-12 days

0

9

Ferris 5101164

GEAR BOX, RIGHT ANGLE
(Superseded to 5101164YP)

$1481.99

$

Usually ships in 2-12 days

0

10

Ferris 5100632

SPRING, EXTENSION, SWIVEL. LONG HOOK
(Superseded to 5100632YP)

$38.99

$

Usually ships in 2-12 days

0

11

Ferris 5025584

KEY, 1/4" SQR. X 1-1/4, RD ENDS
(Superseded to 5025584FS)

$9.49

$

Usually ships in 2-12 days

0

12

Ferris 5049183

SPACER, .59 X 1.50 X .25
(Superseded to 5049183SM)

$7.99

$

In Stock, only 1 left!

0

13

Ferris 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

14

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

15

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

16

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

19

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5020819

BUSHING, TAPERED HUB
(Superseded to 5020819SM)

$26.99

$

In Stock, only 4 left!

0

21

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

22

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

23

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 4 left!

0

24

Ferris 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

26

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

Note: (S/N: 2017033694 & Below)

$2.99

$

In Stock, only 3 left!

0

27

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

29

Ferris 5022794

PULLEY, SPINDLE, BH72
(Superseded to 5022794FS)

$97.99

$

In Stock, only 1 left!

0

30

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3.0 THREAD
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0

31

Ferris 5021442

PULLEY-IDLER, 5.00OD, .385ID, 1.50W STL

Note: (S/N: 2017033694 & Below)

$

$

Not available

32

Ferris 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

Note: (S/N: 2017033694 & Below)

$5.49

$

In Stock, Qty 7

0

33

Ferris 5025292

WASHER, 5/16 F436 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

34

Ferris 5102276

PULLEY, IDLER, DOUBLE FLANGED, 4IN
(Superseded to 5102276FS)

Note: (S/N: 2017033695 & Above)

$51.99

$

Usually ships in 2-12 days

0

35

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

Note: (S/N: 2017033695 & Above)

$4.49

$

In Stock, only 1 left!

0
