FM (5900520) - Ferris FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki Motion Control Group - Upper Parts Diagram

FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki

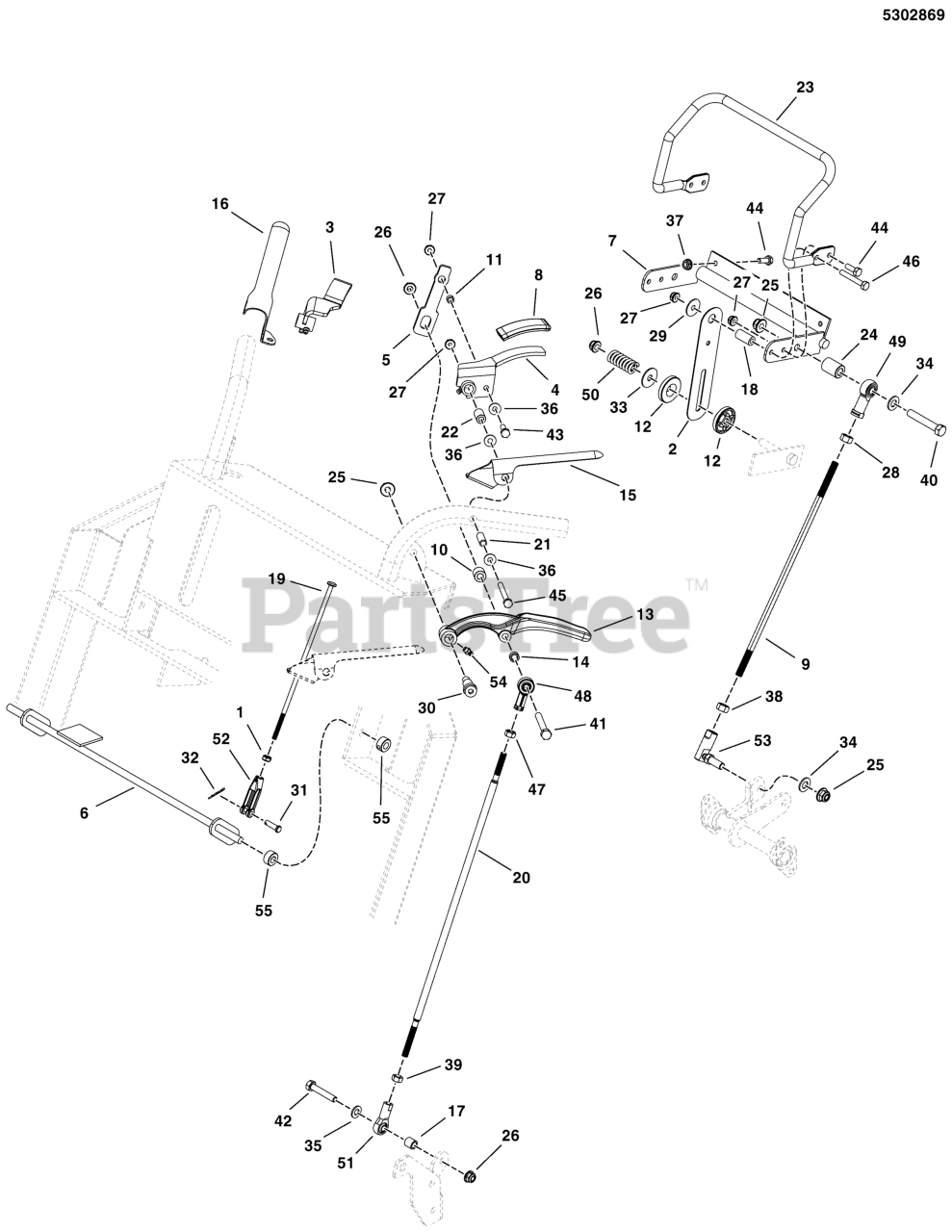

Motion Control Group - Upper Parts Diagram

  • Title
1

Ferris 7090095

HN, 1/4F GR5 YZ
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

2

Ferris 5409272

PLATE, FRICTION CONTROL, SS
(Superseded to 5409272FS)

$28.99

$

Usually ships in 2-12 days

0

3

Ferris 5408617B

WELD, THUMB CONTROL, RH, FLAIL- RED

$53.99

$

Usually ships in 2-12 days

0

4

Ferris 5408616B

WELD, THUMB CONTROL, LH, FLAIL - RED

$53.99

$

Usually ships in 2-12 days

0

5

Ferris 5408615AA

LINK, THUMB CONTROL - BLACK
(Superseded to 5408615AAFS)

$5.99

$

Usually ships in 2-12 days

0

6

Ferris 5405476B

WELD, ROD, SWITCH, SW-30 - RED

$

$

Currently unavailable

7

Ferris 5412891A

NLA - WELD, SPEED CONTROL, SW35 - BLK
(Superseded to 5412891AAFS)

$60.99

$

Usually ships in 2-12 days

0

8

Ferris 5103457

GRIP, FOAM, 1/8 X 1.13 X 2.75"
(Superseded to 5103457FS)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5101236

ROD, CRUISE CONTROL, SNP PRO WB

$42.99

$

Usually ships in 2-12 days

0

10

Ferris 5103225

SPACER, .33 X .625 X .88, STEP, CZ
(Superseded to 5103225FS)

$10.99

$

Usually ships in 2-12 days

0

11

Ferris 5102813

SPACER, .265 X .375 X .25, CZ
(Superseded to 5102813FS)

$14.99

$

Usually ships in 2-12 days

0

12

Ferris 5102701

SPACER, .34 X 1.54 X .25 - UHMW
(Superseded to 5102701YP)

$3.99

$

In Stock, only 1 left!

0

13

Ferris 5102556A

HANDLE, REVERSING - BLK
(Superseded to 5102556AAFS)

$38.99

$

Usually ships in 2-12 days

0

14

Ferris 5102463

SPACER, .33 X .50 X .25, CZ
(Superseded to 5102463YP)

$5.49

$

Usually ships in 2-12 days

0

15

Ferris 5104202A

NLA - FLAP, OPS - BLK

$28.99

$

Usually ships in 2-12 days

0

16

Ferris 5104201A

NLA - FLAP, OPS - BLK
(Superseded to 5104201AAFS)

$32.99

$

Usually ships in 2-12 days

0

17

Ferris 5102148

SPACER, .33 X .50 X .50, CZ
(Superseded to 5102148YP)

$4.99

$

Usually ships in 2-12 days

0

18

Ferris 5101274

SPACER, .26 X .50 X 1.00
(Superseded to 5101274FS)

$5.49

$

Usually ships in 2-12 days

0

19

Ferris 5101242

ROD, OPC LINK, SNP PRO WB
(Superseded to 5101242FS)

$4.99

$

Usually ships in 2-12 days

0

20

Ferris 5103349

ROD, 5/16-24 X 33.2 LH-RH, CZ

$16.99

$

Usually ships in 2-12 days

0

21

Ferris 5101215

SPACER, .26 X .38 X 1.25, CZ
(Superseded to 5101215YP)

$8.49

$

Usually ships in 2-12 days

0

22

Ferris 5100832

SLEEVE, CRUISE CONTROL ROLLER
(Superseded to 5100832FS)

$6.49

$

Usually ships in 2-12 days

0

23

Ferris 5100744

BAR, SPEED CONTROL, DIPPED

$59.99

$

Usually ships in 2-12 days

0

24

Ferris 5042658

SPACER, .39 X .75 X 1.06
(Superseded to 5042658SM)

$7.49

$

In Stock, only 1 left!

0

25

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

26

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

28

Ferris 5025317

NUT, 3/8-24 HEX, LH
(Superseded to 5025317FS)

$3.49

$

Usually ships in 2-12 days

0

29

Ferris 5025288

WASHER, 1/4 FENDER
(Superseded to 5025288YP)

$3.99

$

In Stock, only 4 left!

0

30

Ferris 5025223

BOLT, 3/8-16 X 1, 1/2 SHOULDER
(Superseded to 5025223SM)

$7.99

$

Usually ships in 2-12 days

0

31

Ferris 5025212X7

PIN, CLEVIS, 1/4 X 7/8, PLATED
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

32

Ferris 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

33

Ferris 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

34

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

35

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

36

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

37

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

38

Ferris 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

39

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

40

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

Usually ships in 2-12 days

0

41

Ferris 5025011X24

BOLT, 5/16-18 X 3 GD5 YZ
(Superseded to 5025011X24SM)

$3.99

$

Usually ships in 2-12 days

0

42

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

43

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

44

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

45

Ferris 5025010X24

BOLT, 1/4-20 X 3, GD5
(Superseded to 5025010X24YP)

$3.99

$

Usually ships in 2-12 days

0

46

Ferris 5025010X14

BOLT, 1/4-20 X 1-3/4 GD5 YZ
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

47

Ferris 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

48

Ferris 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

49

Ferris 5022392

ROD END, 3/8-24 LH FEMALE
(Superseded to 5022392FS)

$24.99

$

Usually ships in 2-12 days

0

50

Ferris 5022361

SPRING-COMP, .428IDX2.50LGX.154WR, BZ
(Superseded to 5022361SM)

$9.99

$

Usually ships in 2-12 days

0

51

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

52

$13.99

$

Usually ships in 2-12 days

0

53

Ferris 5020805

BALL JOINT, 3/8-24 FEM, STUD
(Superseded to 5020805FS)

$17.99

$

Usually ships in 2-12 days

0

54

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

55

Ferris 5010546

COLLAR, 3/8 SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0
