FM (5900520) - Ferris FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki Motion Control Group - Lower Parts Diagram

FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki

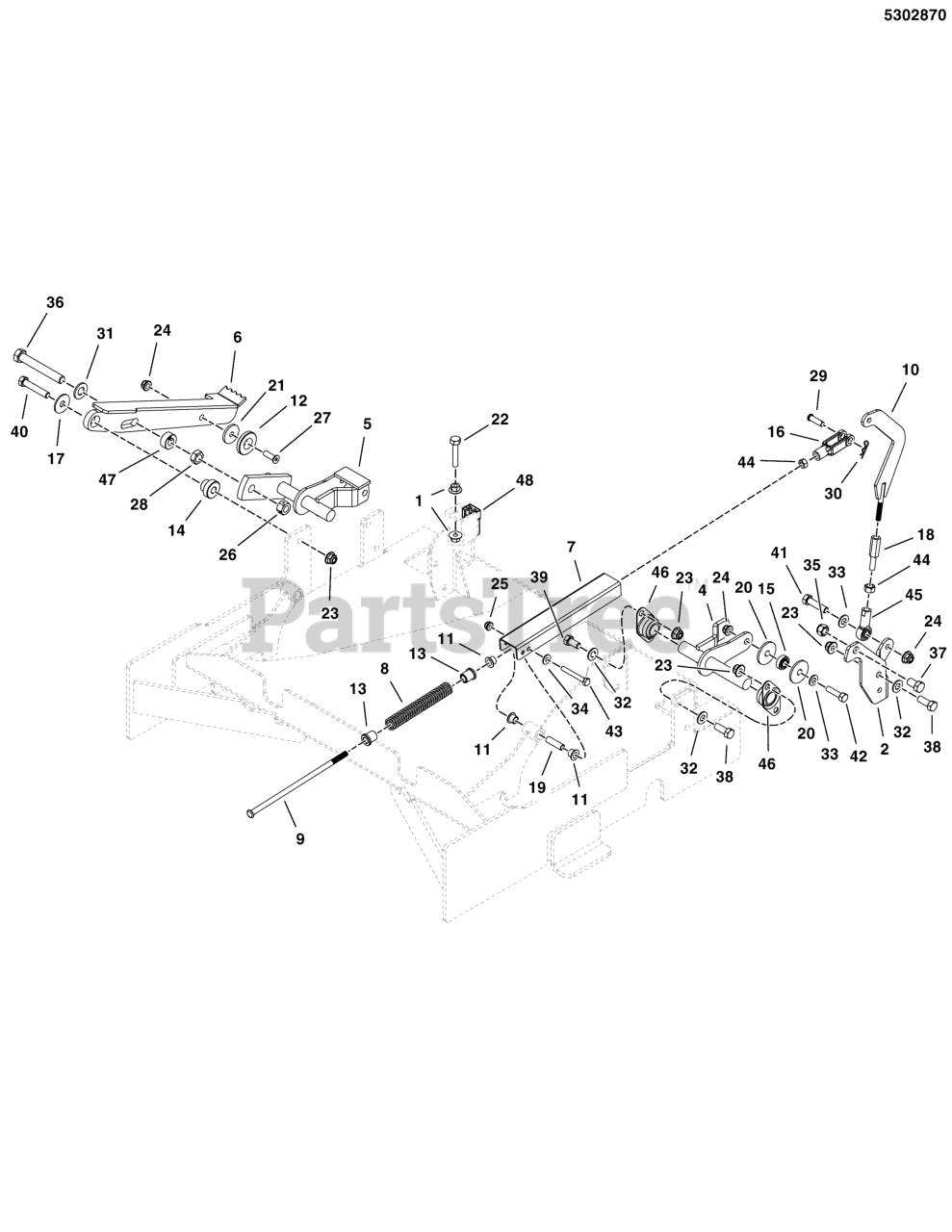

Motion Control Group - Lower Parts Diagram

  • Title

1

Ferris 725338

NUT, .31-24 HEX FLG SERRATED LK
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

2

Ferris 5409334B

PLATE, CONTROL MOUNT, LH - RED

$

$

Currently unavailable

3

Ferris 5409333B

PLATE, CONTROL MOUNT, RH - RED

Note: (Not Shown)

$

$

Currently unavailable

4

Ferris 5409318B

WELD, CONTROL SHAFT, SW30, LH - RED

$

$

Currently unavailable

5

Ferris 5409260B

WELD, CONTROL SHAFT, SW30, RH - RED

$

$

Currently unavailable

6

Ferris 5409257B

WELD, FOOT PEDAL, SW30 - RED

$

$

Currently unavailable

7

Ferris 5409243B

WELD, SPRING HOUSING, SW30 - RED

$

$

Currently unavailable

8

Ferris 5103441

SPRING, COMP. .61 ID X .775 X 7.0 LG,.08

$

$

Currently unavailable

9

Ferris 5025012X64

BOLT, 5/16-24 X 8, GD8, CZ

$

$

Currently unavailable

10

Ferris 5103434

WELD, CONTROL RAMP, WB

$

$

Currently unavailable

11

Ferris 5102773

BUSHING, .38ID X .47 OD X .38L, FL
(Superseded to 5102773FS)

$2.99

$

Usually ships in 2-12 days

0

12

Ferris 5102701

SPACER, .34 X 1.54 X .25 - UHMW
(Superseded to 5102701YP)

$3.99

$

In Stock, only 1 left!

0

13

Ferris 5102709

BUSHING, .38 X .75 X .75, PLASTIC
(Superseded to 5102709FS)

$9.49

$

Usually ships in 2-12 days

0

14

Ferris 5102406

SPACER, .38 X 1.13 X .781 STEP, CZ
(Superseded to 5102406FS)

$15.99

$

Usually ships in 2-12 days

0

15

Ferris 5102003

BEARING, .375" ID X .875" OD X .341" THK
(Superseded to 5102003YP)

$9.49

$

Usually ships in 2-12 days

0

16

Ferris 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

17

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

18

Ferris 5101243

ADJUSTER, ROD LINKAGE 5/16-24

$15.99

$

Usually ships in 2-12 days

0

19

Ferris 5101215

SPACER, .26 X .38 X 1.250, YZ
(Superseded to 5101215YP)

$8.49

$

Usually ships in 2-12 days

0

20

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

21

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

22

Ferris 5025538

BOLT, 5/16-24 X 1-3/4, FULL THRD, GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

24

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

26

Ferris 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 11

0

27

Ferris 5025594

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ
(Superseded to 5025594YP)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5025301

NUT, Hex, Jam, 1/2-13
(Superseded to 5025301SM)

$3.49

$

In Stock, only 1 left!

0

29

Ferris 5025213X8

PIN, CLEVIS, 5/16 X 1, PLATED
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

30

Ferris 502506X6

COTTER PIN, 5/32 X 3/4

$

$

Currently unavailable

31

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

32

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

33

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

34

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

35

Ferris 5025044

NUT, 7/16-14 HEX TOP LOCK
(Superseded to 5025044SM)

$4.49

$

In Stock, only 1 left!

0

36

Ferris 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 2 left!

0

37

Ferris 5025015X6

BOLT, 7/16-14 X 3/4, GD 5 YZ
(Superseded to 5025015X6SM)

$3.99

$

In Stock, only 1 left!

0

38

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

39

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

40

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

41

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

42

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

43

Ferris 5025010X16

BOLT, 1/4-20 X 2", GD5
(Superseded to 5025010X16FS)

$2.99

$

Usually ships in 2-12 days

0

44

Ferris 5023216

NUT, Hex Jam, 5/16-24
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

45

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

46

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

47

Ferris 5010580

COLLAR, 1/2 SET (1/2 SPLIT COLLAR IN MODEL)
(Superseded to 5010580FS)

$15.99

$

Usually ships in 2-12 days

0

48

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0
