FM (5900520) - Ferris FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki Fuel Tank & Mount Group Parts Diagram

FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki

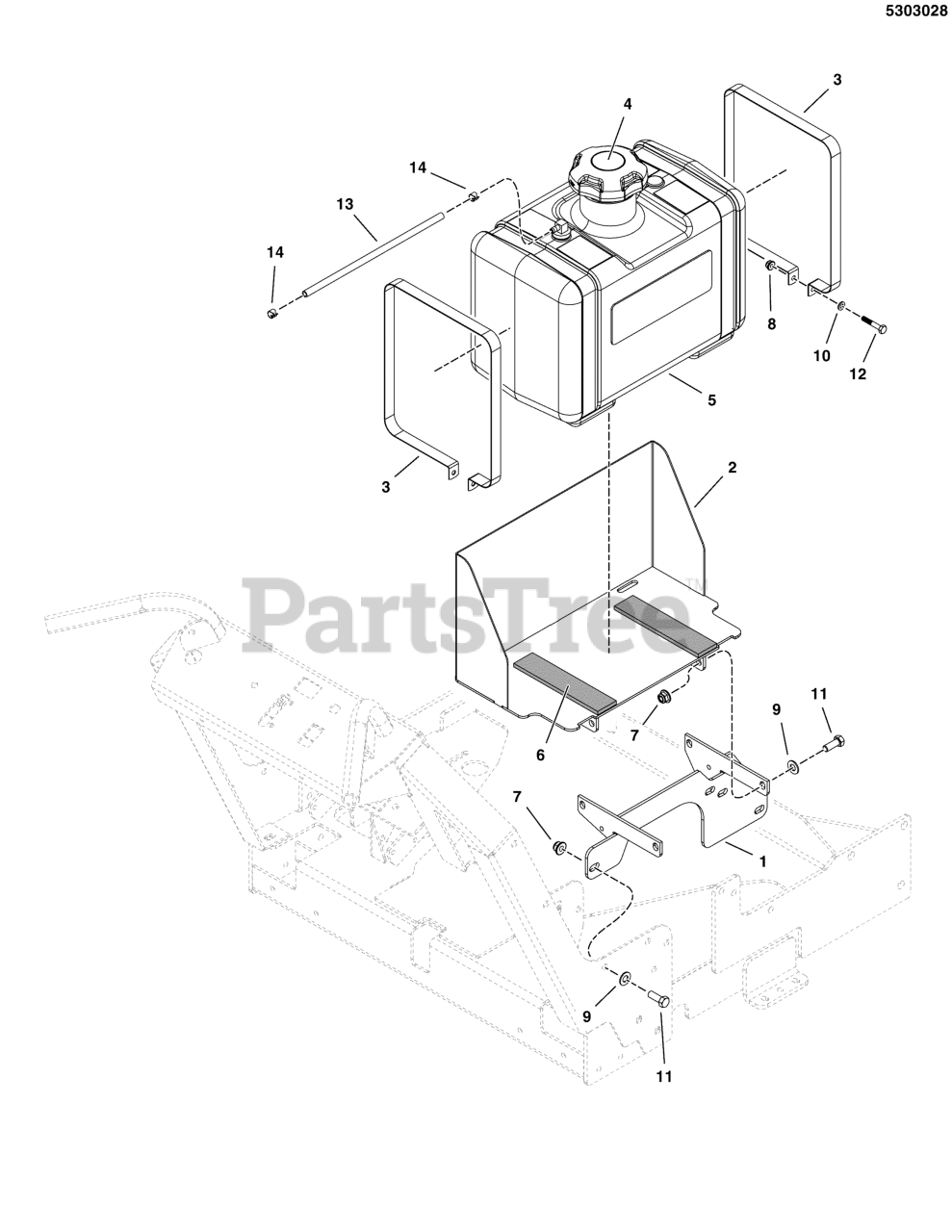

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Ferris 5409339B

WELD, LOWER FUEL TANK MOUNT - RED

$

$

Currently unavailable

2

Ferris 5409341B

WELD, TANK MOUNT, SW20-52-61 - RED

$

$

Currently unavailable

3

Ferris 5403445A

STRAP, FUEL TANK
(Superseded to 5403445AYP)

$22.99

$

Usually ships in 2-12 days

0

4

Ferris 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

5

Ferris 5102833

TANK, 5 GAL, W DROP TUBE/VENT
(Superseded to 5102833YP)

$397.99

$

Usually ships in 2-12 days

0

6

Ferris 5100810

PAD, RUBBER MOUNT
(Superseded to 5100810YP)

$8.99

$

Usually ships in 2-12 days

0

7

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

9

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

11

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

12

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2, GD5
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

13

Ferris 5050831X12

HOSE, 1/4" FUEL, 12.00"
(Superseded to 5050831X12SM)

$5.99

$

Usually ships in 2-12 days

0

14

Ferris 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

15

Ferris 5102833X1

GROMMET

Note: (Grommet for Fuel Tank 5102833)

$10.99

$

Usually ships in 2-12 days

0
