FM (5900520) - Ferris FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki Engine & PTO Group Parts Diagram

FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki

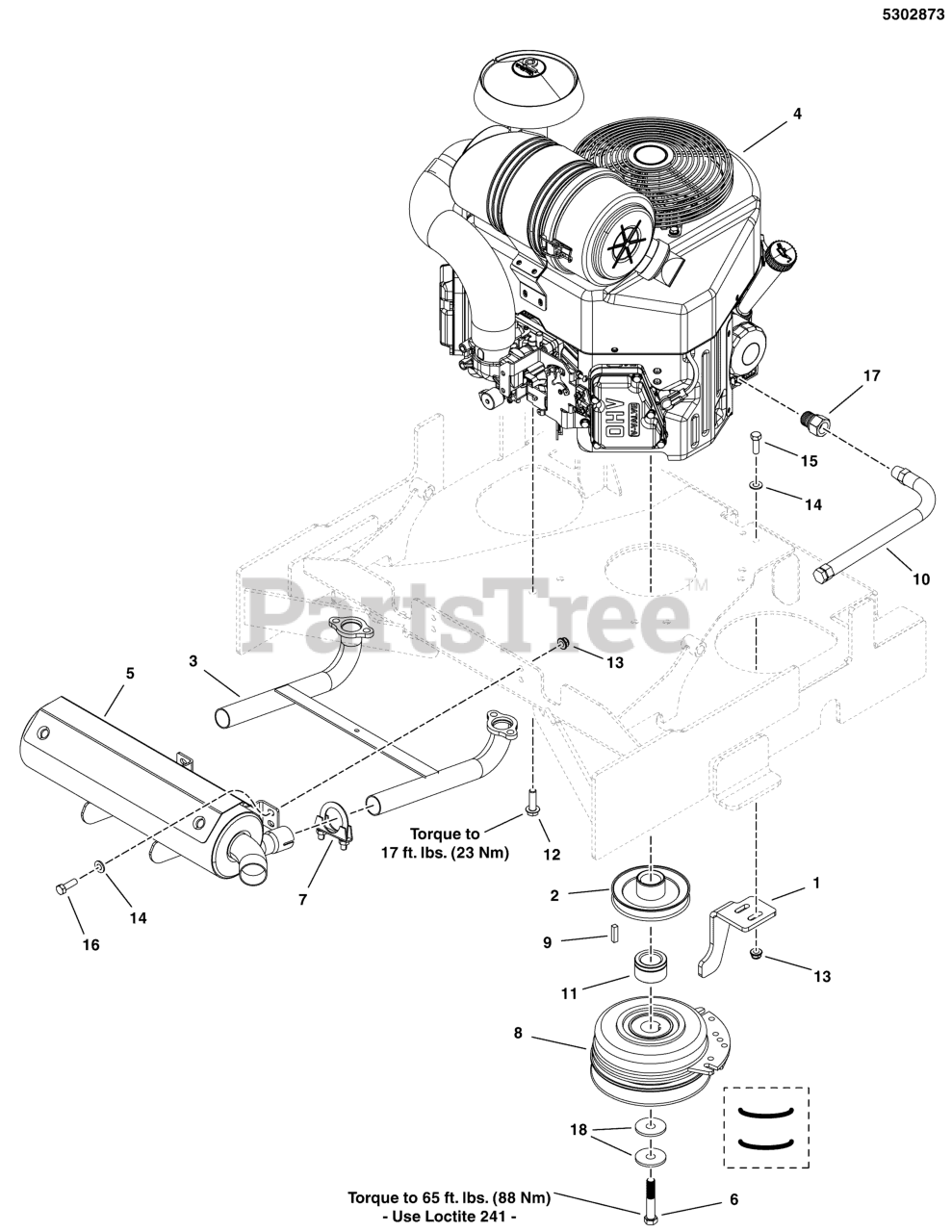

Engine & PTO Group Parts Diagram

  • Title

1

Ferris 5405281B

PLATE, CLUTCH ANCHOR - RED

$

$

Currently unavailable

2

Ferris 5103446

PULLEY, CRANKSHAFT, 4.5DX1.125IDX1.97LG

$44.99

$

Usually ships in 2-12 days

0

3

Ferris 5103312

MANIFOLD, KAWA, HOR, SW30

$

$

Currently unavailable

4

ENGINE, KAWA, FX730V

$

$

Not available

5

Ferris 5103207

MUFFLER, KAWA, HORIZONTAL

$293.99

$

Usually ships in 2-12 days

0

6

Ferris 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

$5.49

$

In Stock, only 1 left!

0

7

Ferris 5022810

CLAMP, EXHAUST EXTENSION
(Superseded to 5022810FS)

$7.49

$

Usually ships in 2-12 days

0

8

Ferris 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 2 left!

0

9

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

10

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

11

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

12

Ferris 5025532

BOLT,HEX FLG,SER GD5 3/8-16X1-1/4PACH CZ
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

13

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5022234

ADAPTER-OIL DRAIN
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

18

Ferris 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

$4.49

$

In Stock, only 2 left!

0
