FM (5900520) - Ferris FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki Engine Deck Group Parts Diagram

FM Series 48" Walk-Behind Flail Mower, 24hp Kawasaki

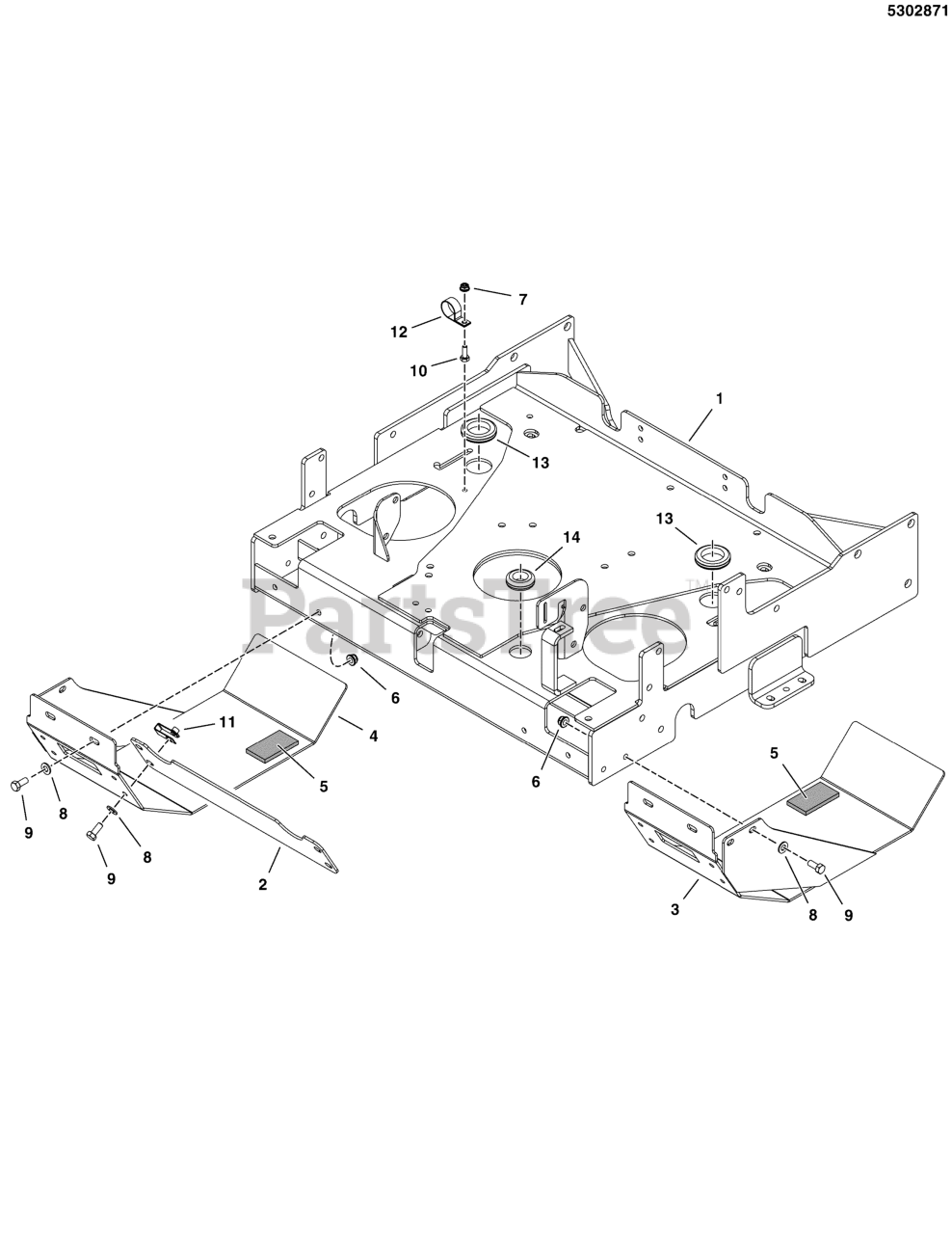

Engine Deck Group Parts Diagram

  • Title

1

Ferris 5408718B

WELD, ENGINE DECK, SW30 - RED

$1310.99

$

Usually ships in 2-12 days

0

2

Ferris 5405387B

PLATE, REAR GUARD, SW30 - RED

$

$

Currently unavailable

3

Ferris 5405325B

WELD, SKID PLATE, RH - RED
(Superseded to 5405325BFS)

$118.99

$

Usually ships in 2-12 days

0

4

Ferris 5405324B

WELD, SKID PLATE, LH - RED

$

$

Currently unavailable

5

Ferris 5101270

PAD, RUBBER MOUNT, 1/4 MAT
(Superseded to 5101270FS)

$7.49

$

Usually ships in 2-12 days

0

6

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

8

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

11

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

12

Ferris 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

13

Ferris 5021397

GROMMET, 1-1/4
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

14

Ferris 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0
