FM 3301 E - Billy Goat 33" Finish Mower Trans Parts Diagram

33" Finish Mower

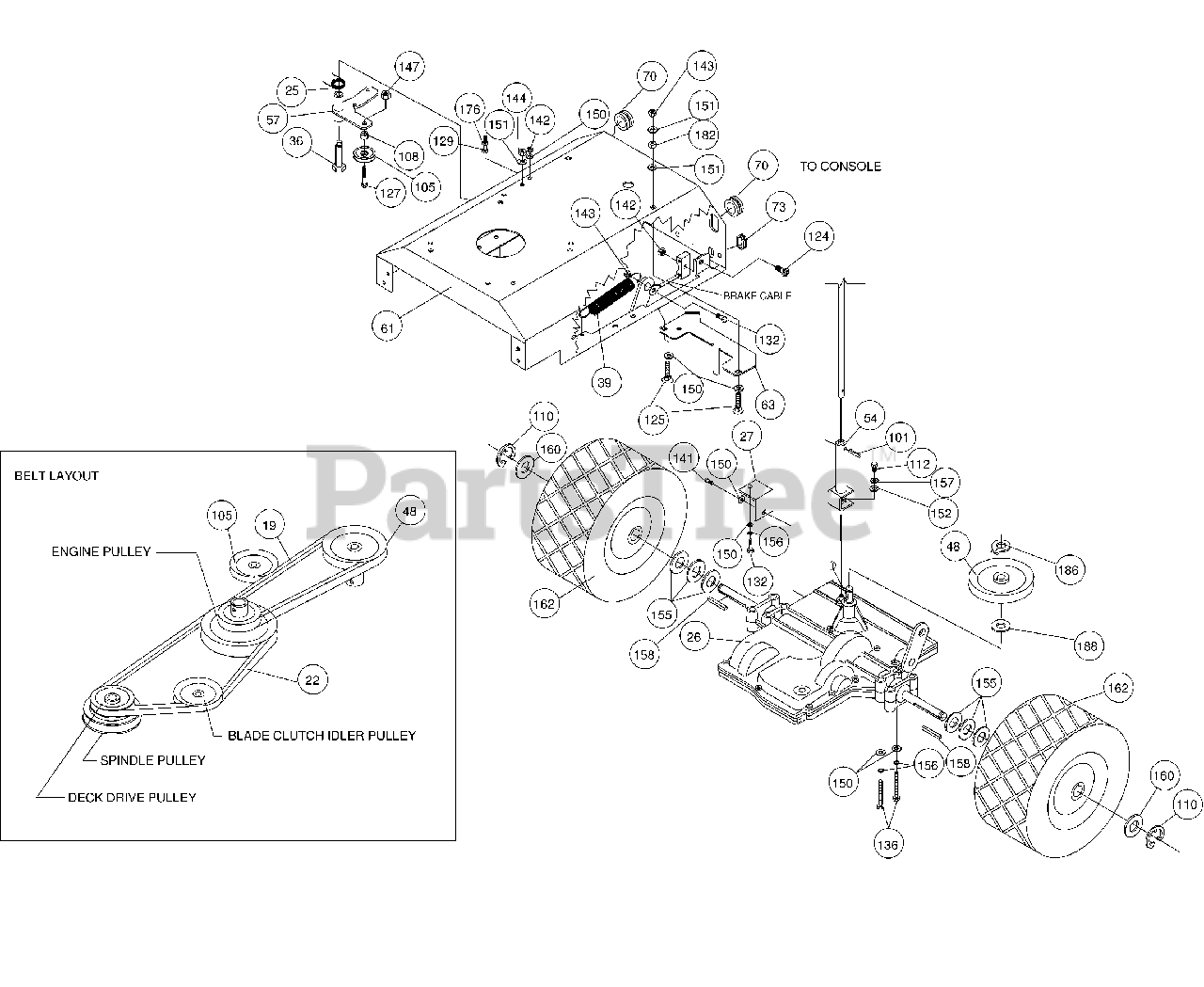

Trans Parts Diagram

  • Title
19

Billy Goat 520201

BELT TRANS DRIVE FM

$

$

Not available

22

Billy Goat 520006

BELT BLADE DRIVE FM

$58.99

$

Usually ships in 2-11 days

0

25

Billy Goat 520009

SPRING TORSION WIRE

$

$

Currently unavailable

26

Billy Goat 520010

TRANSAXLE 5SPD FM

$

$

Not available

27

Billy Goat 520016

BRACKET T-AXLE SUPPORT

$11.99

$

Usually ships in 2-11 days

0

36

Billy Goat 520031

BOLT SHOULDER 1/2” X 2”

$6.99

$

In Stock, only 1 left!

0

39

Billy Goat 520037

SPRING BRAKE

$9.99

$

Usually ships in 2-11 days

0

48

Billy Goat 520198

PULLEY 6.875 OD 4LV GROOVE .625 BORE

$

$

Not available

54

Billy Goat 520068

SHIFT LINKGAGE WA FM

$

$

Currently unavailable

57

Billy Goat 520203

BRKT IDLER GRND DRIVE

$

$

Not available

61

Billy Goat 520177

BASE ENGINE W/INSERTS

$

$

Not available

63

Billy Goat 520196

BRACKET BELT GUIDE DRV

$

$

Not available

70

Billy Goat 520087

GROMMET RUBBER 1”

$4.99

$

Usually ships in 2-11 days

0

73

Billy Goat 520092

GROMMET RUBBER 1.25”

$3.99

$

Usually ships in 2-11 days

0

101

Billy Goat 520156

ROLL PIN 1/4” X 1.0 IN LONG

$1.49

$

Usually ships in 2-11 days

0

105

Billy Goat 800260

PULLEY IDLER TENSION
(Superseded to 5108777)

$105.99

$

Usually ships in 2-11 days

0

108

Billy Goat 830526

TUBE PIVOT IDLER VQ

$5.49

$

Usually ships in 2-11 days

0

110

Billy Goat 850230

RING SNAP 0.75

$0.99

$

Usually ships in 2-11 days

0

112

Billy Goat 850408

SCREW CAP 1/4-28X1/2” GR 5

$0.99

$

Usually ships in 2-11 days

0

124

Billy Goat 8024023

BOLT CARR. 1/4-20X1.25”

$0.99

$

Usually ships in 2-11 days

0

125

Billy Goat 8024042

BOLT CARR. 5/16-18X1 1/2”

$0.99

$

Usually ships in 2-11 days

0

127

Billy Goat 8041053

SCREWCAP 3/8-16 X 1 3/4

$1.49

$

Usually ships in 2-11 days

0

129

Billy Goat 8041013

SCREWCAP 1/4"-20 X 2.75"

$0.99

$

In Stock, Qty 6

0

132

Billy Goat 8041029

SCREWCAP 5/16-18 X 1.25"

$0.99

$

Usually ships in 2-11 days

0

136

Billy Goat 8041035

SCREW CAP 5/16 - 18 x 2.75

$0.99

$

Usually ships in 2-11 days

0

141

Billy Goat 8123128

SCREW SELF TAP 5/16

$1.49

$

In Stock, only 1 left!

0

142

Billy Goat 8160001

NUT LOCK 1/4-20 NYLON

$0.99

$

In Stock, Qty 8

0

143

Billy Goat 8160002

NUT LOCK 5/16-18 NYLON

$0.99

$

In Stock, only 4 left!

0

144

Billy Goat 8160003

NUT LOCK 3/8-16 NYLON

$0.99

$

In Stock, Qty 6

0

147

Billy Goat 8161042

NUTLOCK 3/8”-16 LW TH ZP

$0.99

$

In Stock, Qty 7

0

150

Billy Goat 8171002

WASHER 1/4” FC

$0.99

$

In Stock, Qty 10

0

151

Billy Goat 8171003

WASHER 5/16” FC

$0.99

$

In Stock, Qty 10

0

152

Billy Goat 8172007

WASHER 1/4 SAE

$0.99

$

In Stock, Qty 7

0

155

Billy Goat 8172015

WASHER 3/4 FC

$0.99

$

In Stock, only 3 left!

0

156

Billy Goat 8177011

WASHER LOCK 5/16 SPLIT

$0.99

$

In Stock, Qty 10

0

157

Billy Goat 8181007

WASHER LOCK 1/4” EXT.

$0.99

$

Usually ships in 2-11 days

0

158

Billy Goat 9201087

KEY 3/16 x 2 1/8

$2.99

$

In Stock, only 2 left!

0

160

Billy Goat 850238

WASHER 3/4 THIN

$1.49

$

In Stock, only 2 left!

0

162

Billy Goat 830177

WHEEL AND TIRE 13”

$185.99

$

Usually ships in 2-11 days

0

176

Billy Goat 8143001

NUT JAM 1/4-20

$0.99

$

Usually ships in 2-11 days

0

182

Billy Goat 8142002

NUT JAM 5/16

$0.99

$

Usually ships in 2-11 days

0

186

Billy Goat 850233

RING SNAP 5/8 T.A.

$0.99

$

In Stock, only 1 left!

0

188

Billy Goat 850230

WASHER 3/4"

$0.99

$

Usually ships in 2-11 days

0
