FLT 185420 (7800370) - Murray 42" Lawn Tractor, 18.5hp (2008) Steering Group Parts Diagram

42" Lawn Tractor, 18.5hp

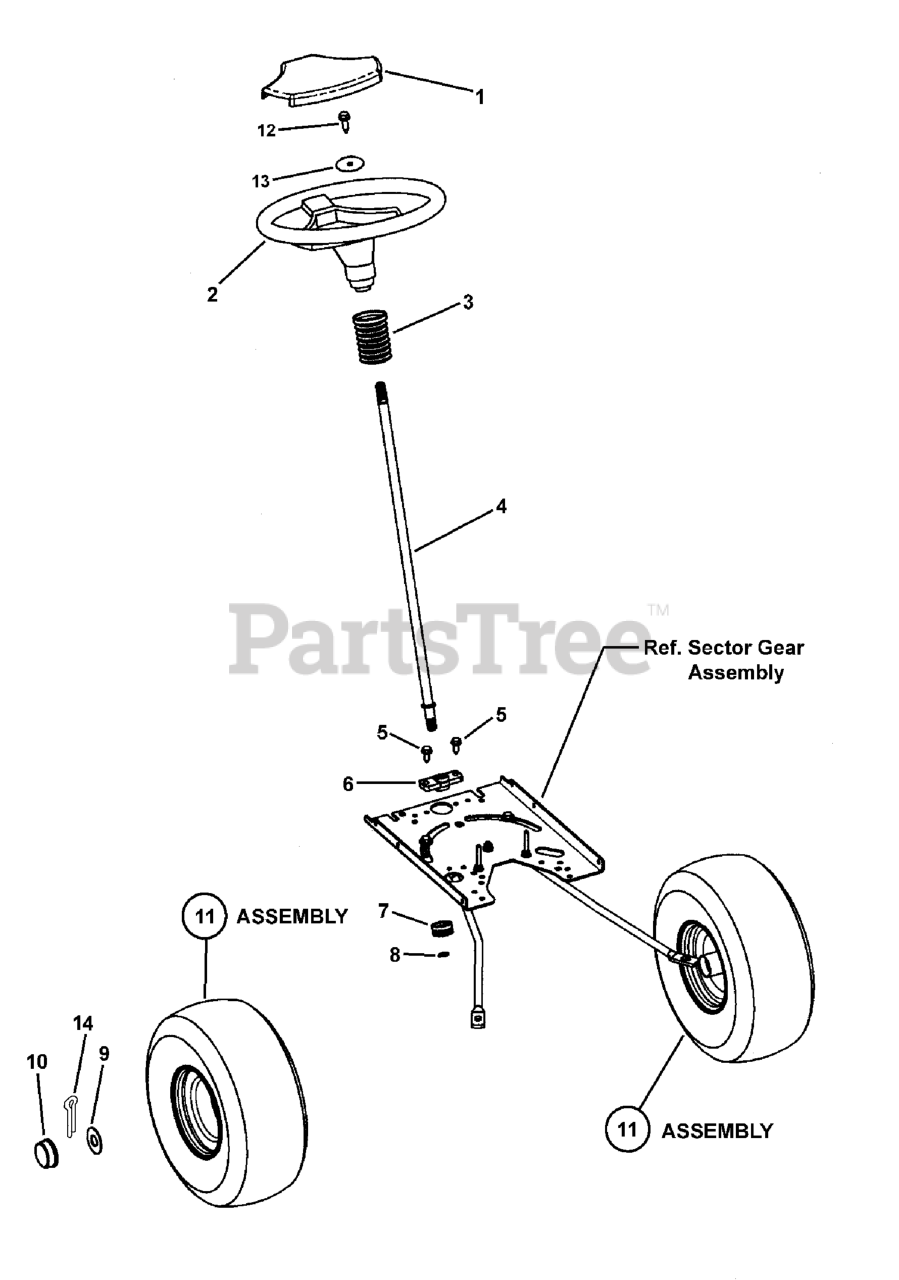

Steering Group Parts Diagram

  • Title

1

Murray 1001982MA

COVER, INTEGRA

$24.99

$

In Stock, only 1 left!

0

2

Murray 1001980MA

STEERING WHEEL (HARD RIM)

$87.99

$

Usually ships in 2-12 days

0

3

Murray 092059MA

BELLOWS - STEERING POST

$9.49

$

Usually ships in 2-12 days

0

4

Murray 690625MA

STEERING POST (22.56" LONG)

$

$

Not available

5

Murray 26X267MA

CAPSCREW 5/16-18

$4.99

$

In Stock, Qty 20+

0

6

Murray 094124MA

BEARING - LOWER

$14.99

$

In Stock, only 1 left!

0

7

Murray 690183MA

GEAR PINION

$

$

Not available

8

Murray 011X25MA

SNAP RING, 0.543"ID

$4.49

$

In Stock, Qty 5

0

9

Murray 17X195MA

FW, 1.862X .765 X 16GA

$4.99

$

In Stock, only 4 left!

0

10

Murray 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

11

Murray 7101557YP

ASSY, Wheel & Tire, 15 x 6.00-6 (inc. 4 items shown below)

Note: includes 2 bushings (3/4 x 1-3/8" O.D.)

$182.99

$

Usually ships in 2-12 days

0

--

Murray 7101556YP

TIRE, 15 x 6.00 2 Ply K358
(Superseded to 1731951SM)

$131.99

$

In Stock, Qty 8

0

--

Murray 7101555YP

RIM, 6 x 4.5 w/2.75 Long Hub (6064099F)

$71.99

$

Usually ships in 2-12 days

0

--

Murray 7012234SM

VALVE STEM, TR 412

$6.49

$

Usually ships in 2-12 days

0

GREASE FITTING, 45 Degree

$

$

Not available

12

Murray 0025X3MA

THD FORMING HES HD SCREW, 1 X 1/4-20 STEP TAPER

$4.99

$

Usually ships in 2-12 days

0

13

Murray 17X146MA

WASHER, FLAT .34, 1.20 11G

$5.49

$

Usually ships in 2-12 days

0

14

Murray 030X20MA

PIN, Cotter, 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0
