FLT 185420 (7800370) - Murray 42" Lawn Tractor, 18.5hp (2008) Hood/Seat Group Parts Diagram

42" Lawn Tractor, 18.5hp

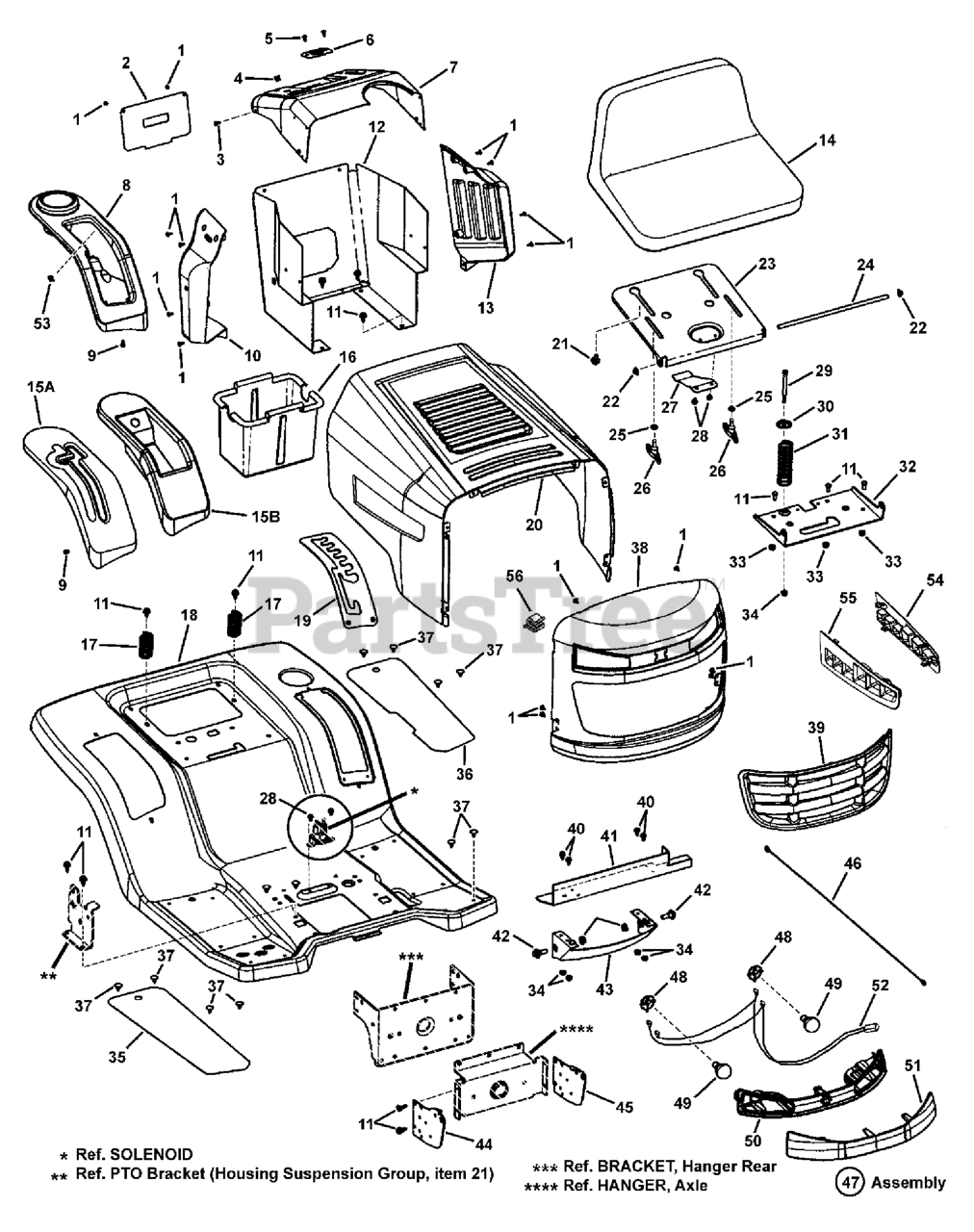

Hood/Seat Group Parts Diagram

  • Title

1

Murray 26X270MA

SCREW, THREAD FORMING 10-24X.340MIN THREADS

$4.49

$

In Stock, Qty 13

0

2

Murray 93007E122MA

PANEL, ACCESS

$

$

Not available

3

Murray 26X201MA

SCREW, 0.375 X #8 SELF TAP Z/BL CHROMATE

$4.49

$

In Stock, only 2 left!

0

4

Murray 1001755MA

BUSHING - INSULATING

$3.49

$

Usually ships in 2-12 days

0

5

Murray 26X238MA

SCREW 1/4" ABX.50

$3.99

$

Usually ships in 2-12 days

0

6

Murray 1001491MA

BEARING, STEERING

$5.49

$

Usually ships in 2-12 days

0

7

Murray 7300678Z

DASH-TWIN
(Superseded to 7300678BMYP)

$95.99

$

Usually ships in 2-12 days

0

8

Murray 7101406YP

POD W/ CUP HOLDER

$51.99

$

Usually ships in 2-12 days

0

9

Murray 7090952YP

1/4-20 THREAD CUTTING SCR

$4.99

$

Usually ships in 2-12 days

0

10

Murray 095217MA

PANEL, RIGHT SIDE

$38.99

$

Usually ships in 2-12 days

0

11

Murray 26X249MA

CAPSCREW 5/16-18

$

$

Not available

12

Murray 095318E717MA

SUPPORT, DASH
(Superseded to 7300872TMA)

$142.99

$

Usually ships in 2-12 days

0

13

Murray 095218MA

PANEL, LEFT SIDE

$38.99

$

Usually ships in 2-12 days

0

14

Murray 094161MA

SEAT, LOW BACK

$222.99

$

Usually ships in 2-12 days

0

15A

Murray 7101409YP

POD W/ DRIVE

Note: used on Gear Drive models

$46.99

$

Usually ships in 2-12 days

0

15B

Murray 7101407YP

POD W/ COMPARTMENT

Note: used on Hydro Drive models

$45.99

$

Usually ships in 2-12 days

0

16

Murray 690424MA

CONTAINER, BATTERY

$45.99

$

In Stock, only 1 left!

0

17

Murray 164X30MA

SPRING, COMPRESSION 2.43LENGTH

$15.99

$

Usually ships in 2-12 days

0

18

Murray 7300677ZYP

SEAT DECK

$444.99

$

Usually ships in 2-12 days

0

19

Murray 094194E701MA

PLATE, INDEX

$50.99

$

In Stock, only 1 left!

0

20

Murray 7300964RYP

HOOD, WM2

Note: (Red)

$296.99

$

Usually ships in 2-12 days

0

20

Murray 7101492ZYP

HOOD, WM2

Note: (Black)

$330.99

$

Usually ships in 2-12 days

0

21

Murray 009X56MA

BOLT, SHOULDER 5/16-18

$3.49

$

Usually ships in 2-12 days

0

22

Murray 028X23MA

CAP, PUSH ON
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

23

Murray 094154E701MA

SUPPORT, SEAT
(Superseded to 7300875BMYP)

$65.99

$

Usually ships in 2-12 days

0

24

Murray 094156ZMA

ROD, PIVOT

$7.99

$

Usually ships in 2-12 days

0

25

Murray 017X47MA

FW, .34X.62X16GA
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

26

Murray 1001054MA

BOLT - WING, 0.62L X 5/16-18 UNC 2A

$6.99

$

Usually ships in 2-12 days

0

27

Murray 094057MA

SPRING - LEAF

$5.99

$

Usually ships in 2-12 days

0

28

Murray 26X229MA

SCREW 1/4-14X.38"ST-

$4.49

$

In Stock, only 1 left!

0

29

Murray 009X55MA

BOLT, SHOULDER 1/4-20 X 3.652 2A

$3.49

$

Usually ships in 2-12 days

0

30

Murray 094155ZMA

HER - CUP, 1.50 OD X 0.344 ID

$3.99

$

Usually ships in 2-12 days

0

31

Murray 164X31MA

SPRING, COMPRESSION 4.57 FREE LENGTH

$7.99

$

In Stock, only 2 left!

0

32

Murray 1001648E701MA

BRACKET, SEAT PIVOT

$42.99

$

Usually ships in 2-12 days

0

33

Murray 15X123MA

NUT, Nylock 5/16-18

$3.99

$

Usually ships in 2-12 days

0

34

Murray 015X89MA

1/4-20 HFN

$4.49

$

Usually ships in 2-12 days

0

35

Murray 094382MA

MAT, RH

$

$

Not available

36

Murray 094383MA

MAT, LH

$

$

Not available

37

Murray 0193X1MA

FASTENER PANEL

$3.99

$

In Stock, only 1 left!

0

38

Murray 7400277RYP

HOOD, GRILLE

Note: (Red)

$208.99

$

Usually ships in 2-12 days

0

38

Murray 7400277ZYP

HOOD, GRILLE

Note: (Black)

$209.99

$

Usually ships in 2-12 days

0

39

Murray 7101452YP

LOUVER, INSERT

$53.99

$

Usually ships in 2-12 days

0

40

Murray 90072

HHCS, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 18

0

41

Murray 7300765ZYP

BRACKET, SUPPORT
(Superseded to 7400277ZYP)

$209.99

$

Usually ships in 2-12 days

0

42

Murray 009X51MA

SHOULDER BOLT, 3/8-16X1.06

$4.99

$

In Stock, only 1 left!

0

43

Murray 1001799E701MA

BRACKET, LOWER PIVOT

$28.99

$

Usually ships in 2-12 days

0

44

Murray 094084E701MA

SUPPORT - GRILLE, RIGHT

$

$

Not available

45

Murray 094085E701MA

SUPPORT - GRILLE, LEFT

$

$

Not available

46

Murray 1001953MA

LANYARD

$12.99

$

Usually ships in 2-12 days

0

47

Murray 7500571YP

ASSY, HEADLIGHT, TCT, MURRAY
(Superseded to 7600160YP)

Note: Note: Assembly includes housing, lens, sockets and bulbs shown below.

$90.99

$

Usually ships in 2-12 days

0

48

Murray 1001716MA

SOCKET, LIGHT

$7.99

$

In Stock, Qty 7

0

49

Murray 1677371SM

BULB, 12.8V

$30.99

$

In Stock, only 1 left!

0

50

Murray 1001819MA

HOUSING, LIGHT

$36.99

$

Usually ships in 2-12 days

0

51

Murray 1001820MA

LENS, LIGHT

$53.99

$

Usually ships in 2-12 days

0

52

Murray 250X92MA

HARNESS-HEADLIGHT

$16.99

$

Usually ships in 2-12 days

0

53

Murray 7101493YP

CUTTING HEIGHT INDICATOR

Note: used on Hydro Drive models

$3.99

$

Usually ships in 2-12 days

0

54

Murray 1001814MA

INSERT, WM2 HOOD, LEFT

$30.99

$

Usually ships in 2-12 days

0

55

Murray 1001815MA

INSERT, RIGHT HOOD, WM2

$30.99

$

Usually ships in 2-12 days

0

56

Murray 028X83MA

RETAINERS, S-Clips

$3.99

$

In Stock, only 2 left!

0
